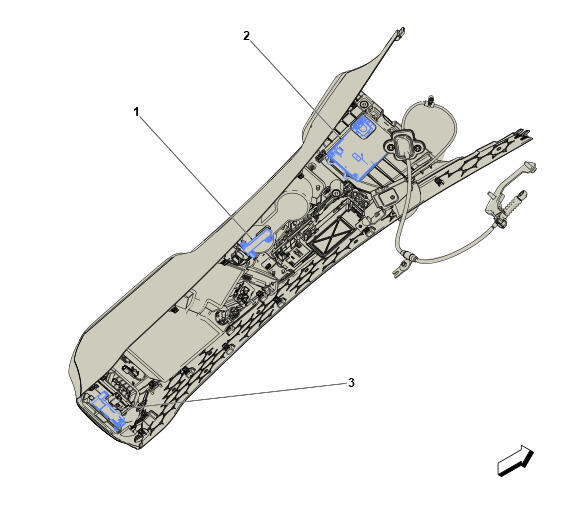

Bottom of Center Console Components

GM5393481Courtesy of GENERAL MOTORS COMPANY
Bottom of Center Console Components

Component Name Callout
T10J Low Frequency Instrument Panel Antenna T10J Low Frequency Instrument Panel Antenna 1
T22 Wireless Accessory Charging Module (K4C) T22 Wireless Accessory Charging Module (-MG9) , or T22 Wireless Accessory Charging Module (MG9) 2
T10K Low Frequency Console Antenna - Rear T10K Low Frequency Console Antenna - Rear 3
