Behind Instrument Panel Components

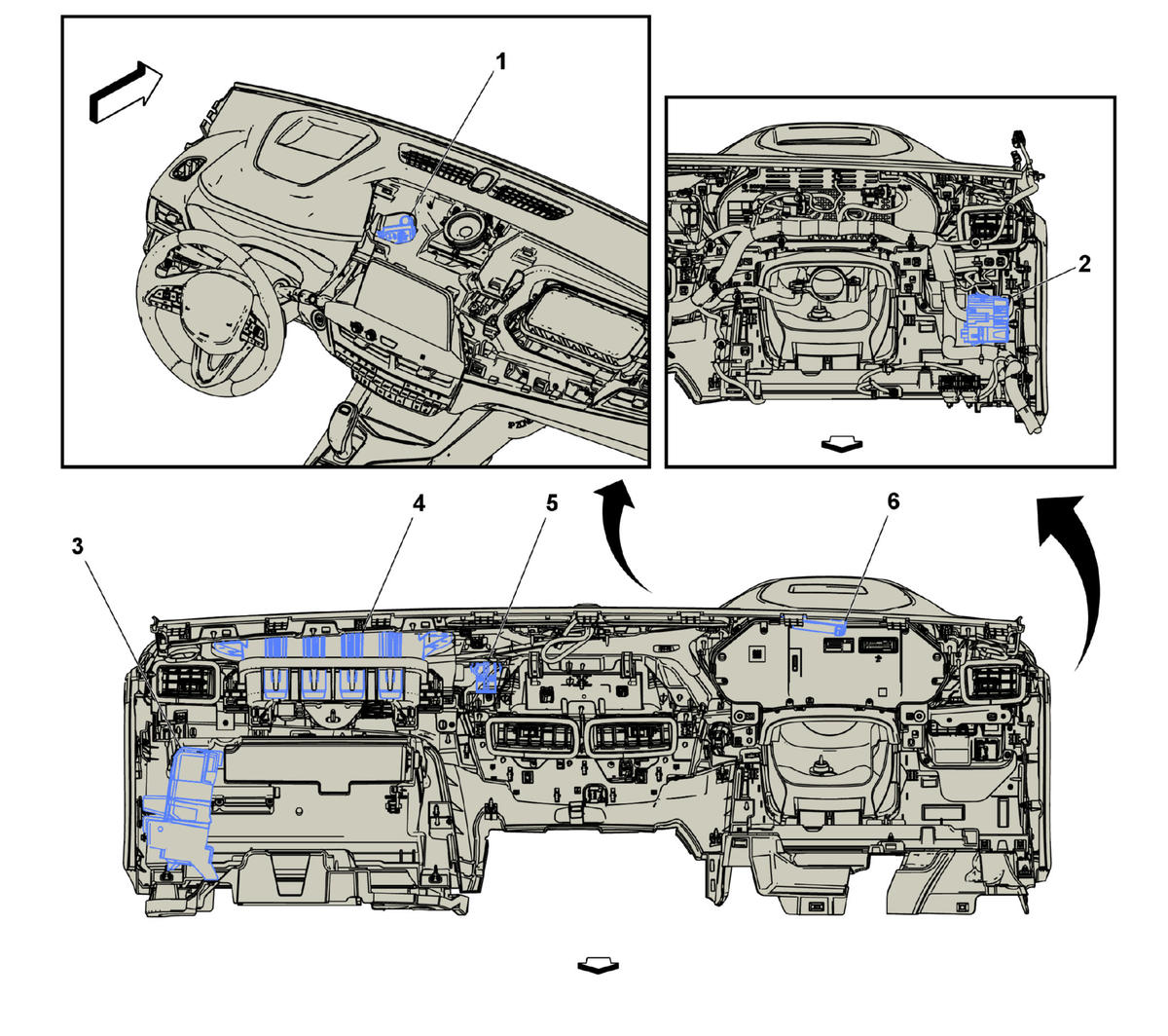

GM5890347Courtesy of GENERAL MOTORS COMPANY
Behind Instrument Panel Components

Component Name Callout
V1 Passenger Compartment Air Filter Module (KEM) V1 Passenger Compartment Air Filter Module 1
X51A Instrument Panel Wiring Harness Junction Block X51A Instrument Panel Wiring Harness Junction Block Label , or X51A Instrument Panel Wiring Harness Junction Block Top View , or X51A Instrument Panel Wiring Harness Junction Block Bottom View , or X51A Instrument Panel Wiring Harness Junction Block (M5N/MQA) , or X51A Instrument Panel Wiring Harness Junction Block (MG9/MHU) 2
A11 Radio A11 Radio X1 , or A11 Radio X2 , or A11 Radio X3 , or A11 Radio X5 , or A11 Radio X6 , or A11 Radio X7 , or A11 Radio X8 , or A11 Radio X10 3
F101 Instrument Panel Airbag F101 Instrument Panel Airbag X1 , or F101 Instrument Panel Airbag X2 4
T4TA Auxiliary Wireless Communication Interface Antenna T4TA Auxiliary Wireless Communication Interface Antenna 5
P43 Forward Collision Alert Display P43 Forward Collision Alert Display 6
