Installation Procedure

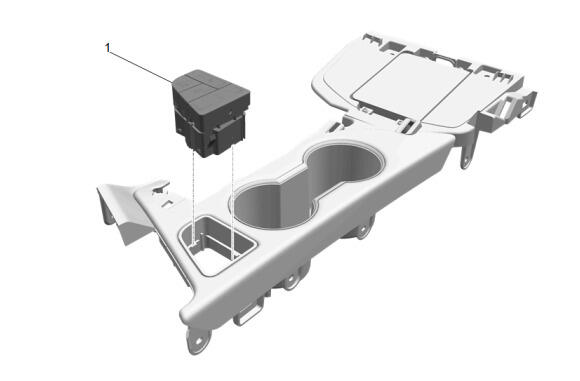

Vehicle Stability Control System Switch (1) - Install
Connect the electrical connectors.

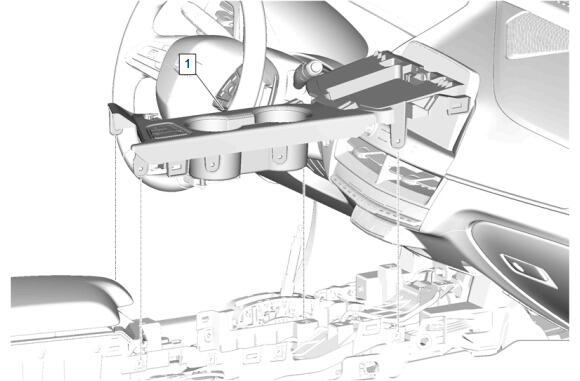

- Front Floor Console Cup Holder (1) - Install
- CAUTION:
Refer to Fastener Caution .

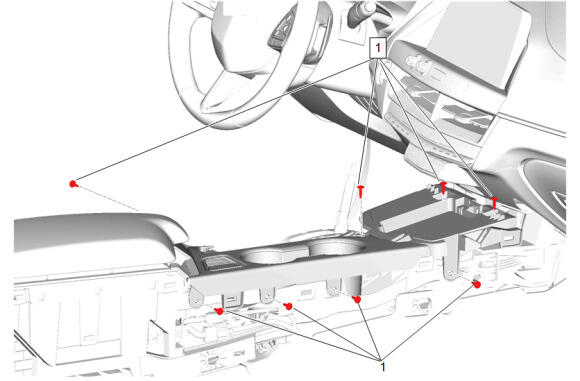

Front Floor Console Cup Holder Bolt (1) - Install and tighten [8x] - Fastener Specifications
Connect the electrical connector.
- Wireless Charging System Module (2) - Install
- Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
Automatic Transmission Range Selector Lever Cable Bolt (1) - Install and tighten - Fastener Specifications
- Automatic Transmission Range Selector Lever Cable (2) - Install and tighten - Fastener Specifications
- Connect the front floor console wiring harness (3) to the body wiring harness.
Front Floor Console Trim Plate (1) - Install
Install the automatic transmission control lever knob (1) then press down to engage the retainer.
- Carefully pull upward on the automatic transmission control lever knob (1) to ensure that the retainer is engaged.
Front Floor Console Trim Plate Bolt (4) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector (3).
- Insert the transmission control lever boot (2) into the front floor console trim plate.
- Shift the transmission through each gear and ensure that the shift lever knob operates properly.
- Front Floor Console Variable 1 Liner (1) - Install
Slide the front floor console (1) back into the instrument panel.
Engage the tabs (3) on both sides of the front floor console.
- Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications
- Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Front Floor Console Extension Panel - Right Side (1) - Install
- Return the seat to its original position.
Front Floor Console Extension Panel - Left Side (1) - Install
- Return the seat to its original position.
