Installation Procedure

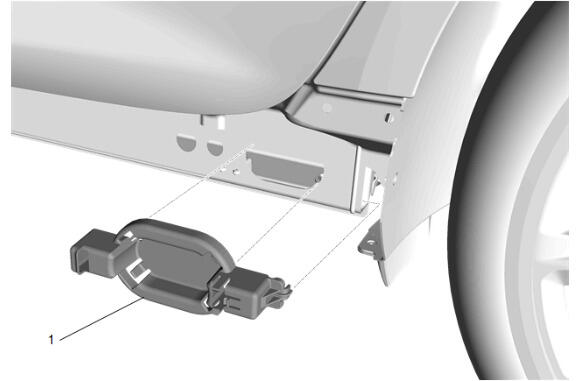

Ignition Lock Key Transmitter Antenna Bracket (1) - Install

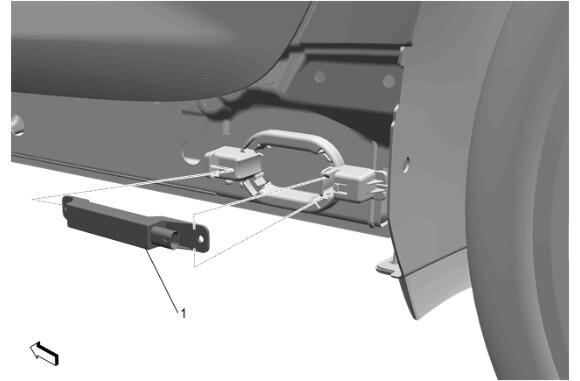

Install the low frequency body side antenna (1) and secure the 2 retainer tabs.
- Connect the electrical connector.

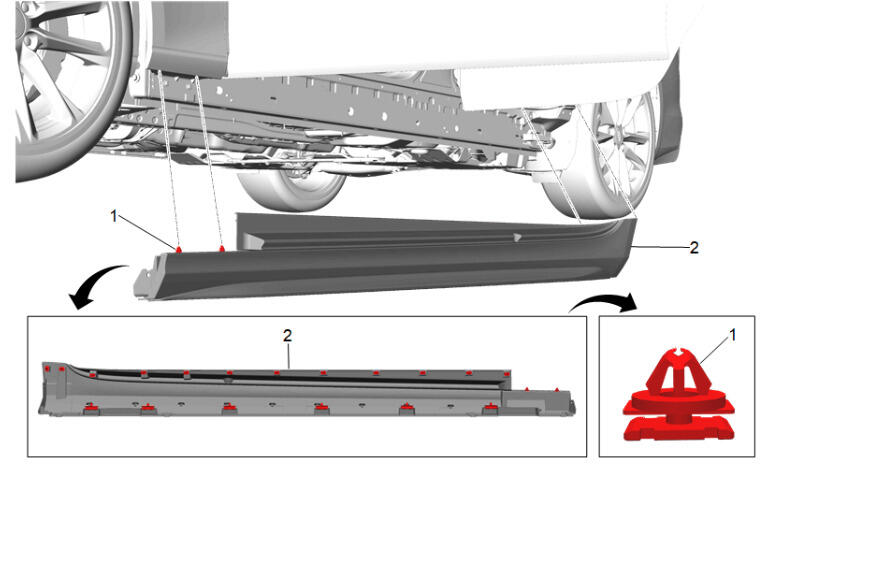

Position the rocker panel molding (2) to the vehicle and seat the upper rocker panel molding retainers (1) into the body side outer panel.
- Seat the lower rocker panel molding retainers (1) into the body side outer panel.

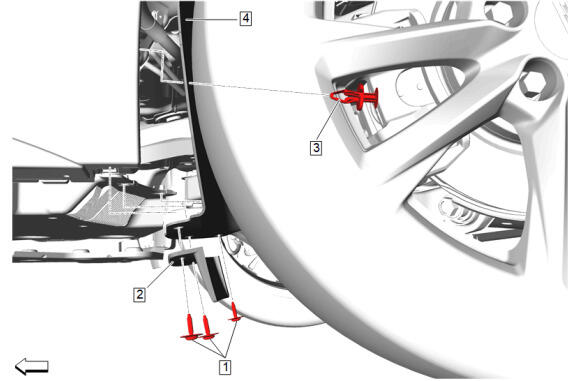

Position the rear wheelhouse liner (3) to its original location.
- Rear Wheelhouse Liner Retainer (2) Install
- Rear Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications

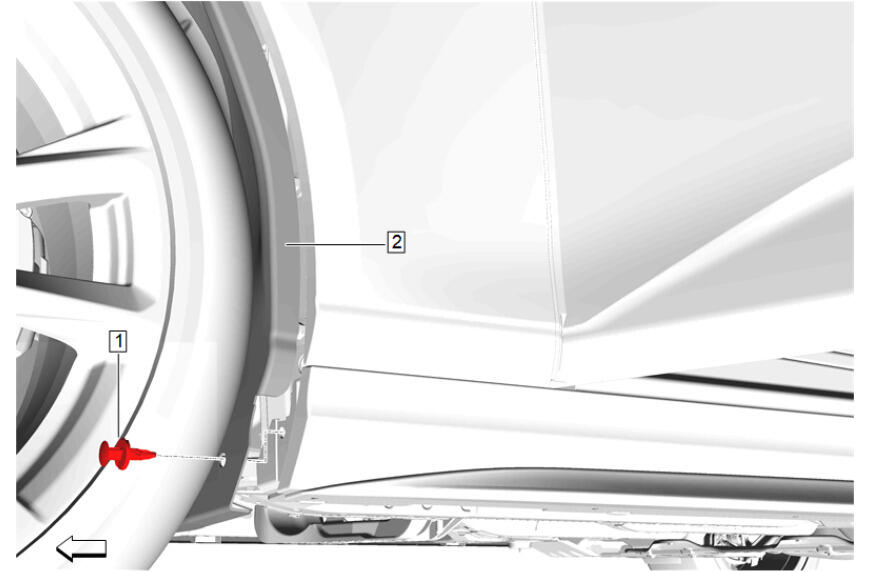

Position the front wheelhouse liner (2) to its original location.
- Front Wheelhouse Liner Retainer (1) - Install
- Close both front and rear side doors.
CAUTION:
Refer to Fastener Caution .
