Installation Procedure
Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).

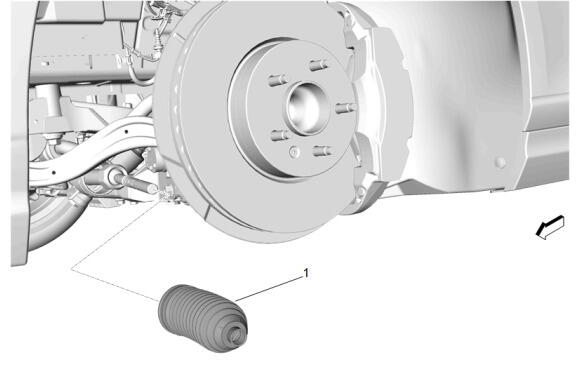

Steering Gear Boot (1) - Install

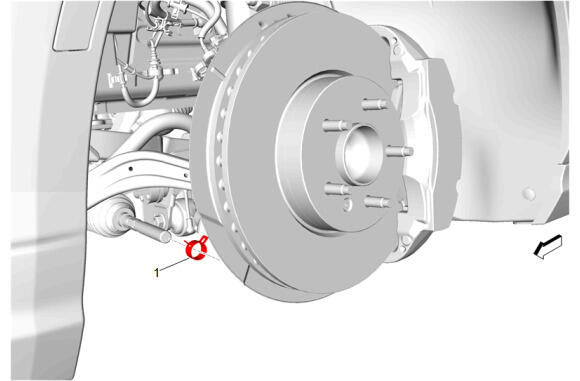

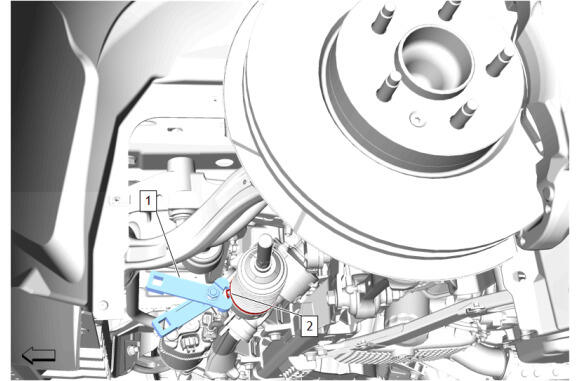

Steering Gear Boot Inner Clamp (2) - Tighten-use DT-35910 Drive Axle Boot Clamp Pliers (1)
Steering Gear Boot Outer Clamp (1) - Install
- NOTE:
Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.
NOTE:Some components not shown for graphic clarity.

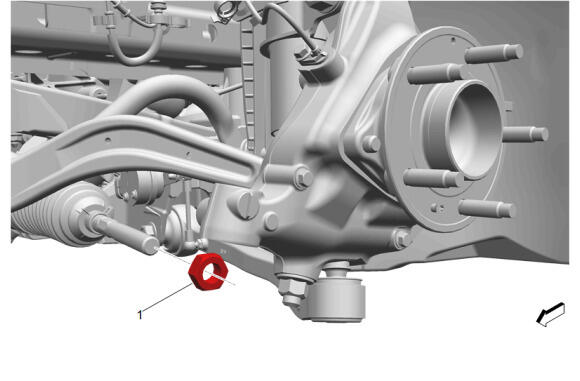

Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
- CAUTION:
Ensure the Outer Tie Rod Boot is not twisted or deformed during assembly. If the boot is twisted or deformed, damage to the boot will occur.
NOTE:Some components not shown for graphic clarity.

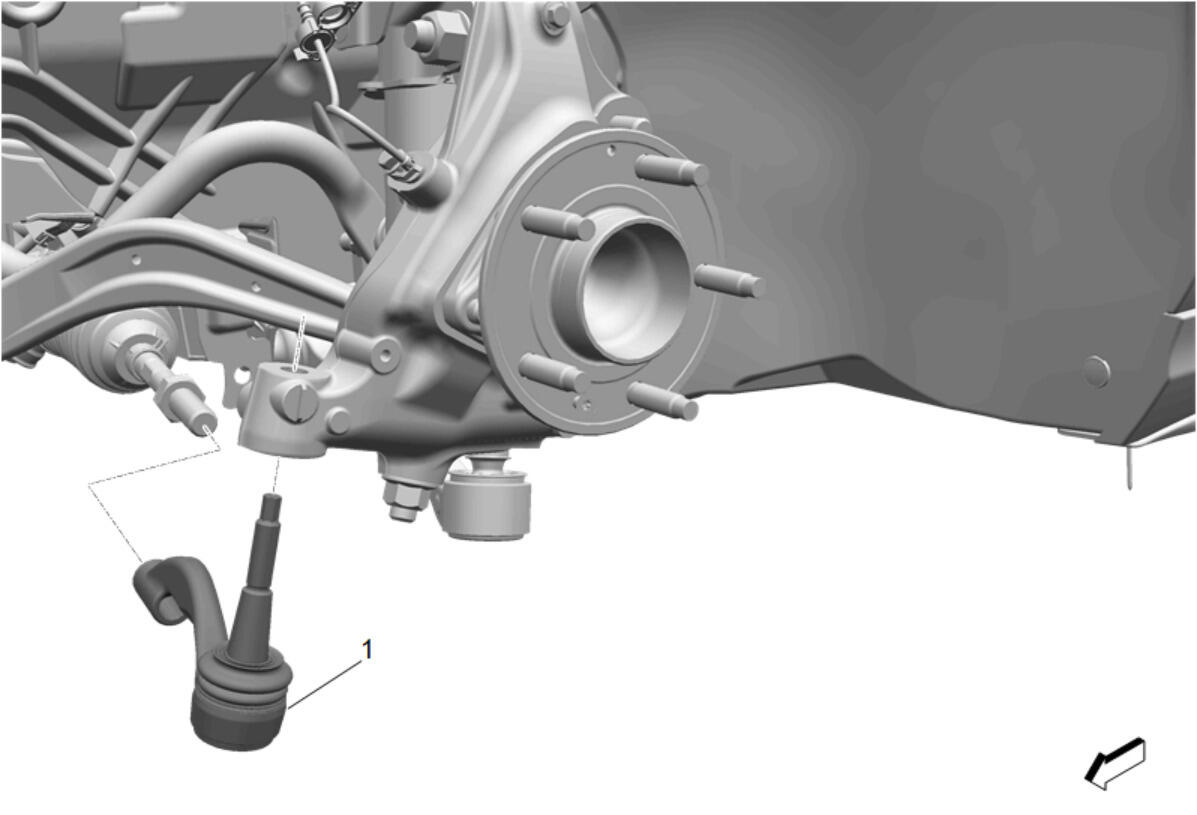

Steering Linkage Outer Tie Rod (1) - Install
- CAUTION:NOTE:
Some components not shown for graphic clarity.

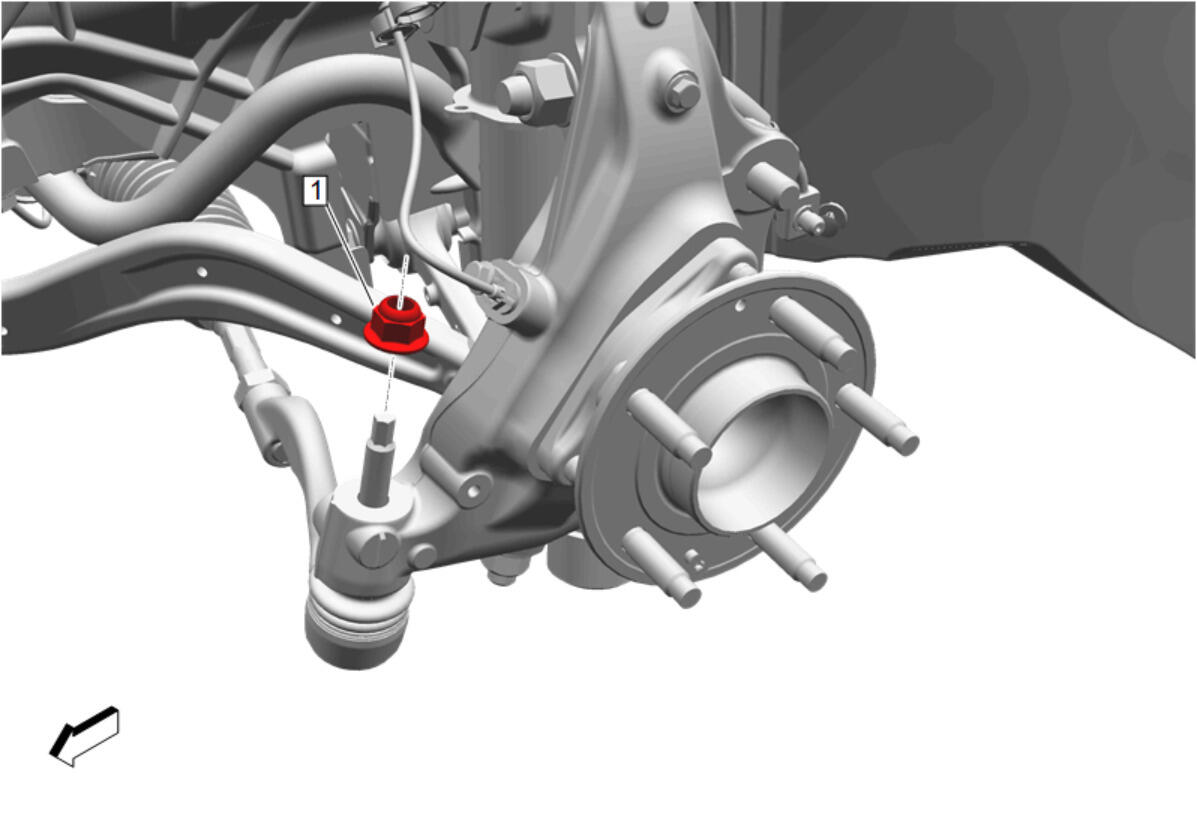

Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications

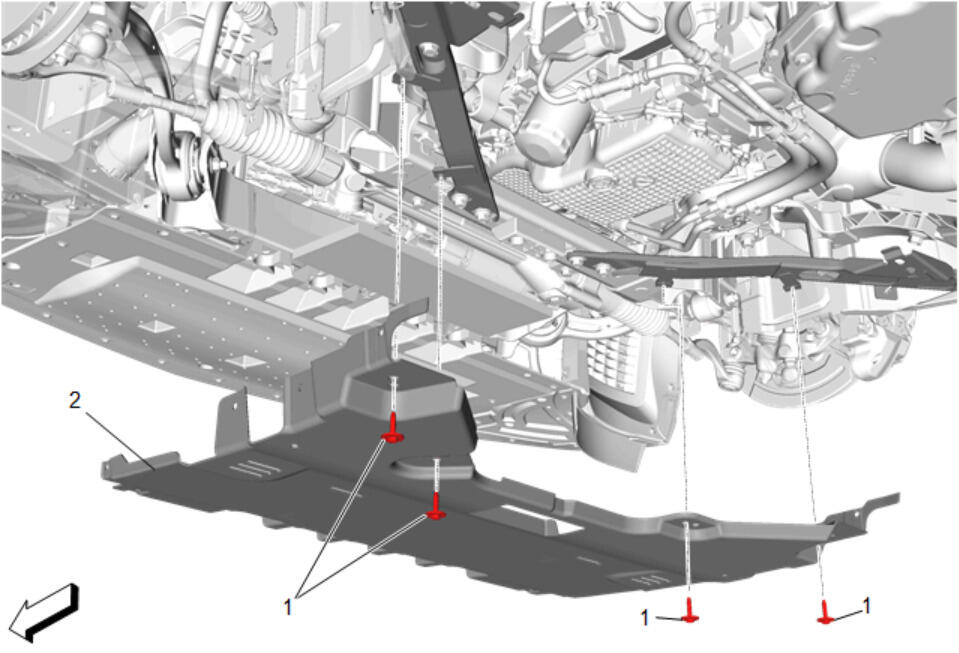

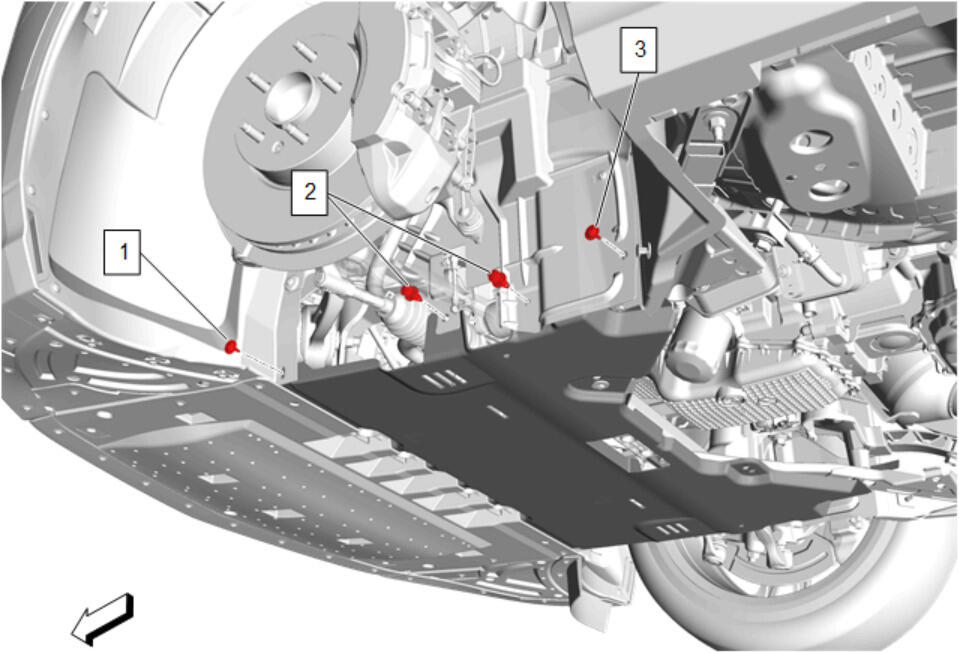

Front Compartment Air Deflector (2) - Install
- Front Compartment Air Deflector Bolt (1) - Install and tighten [4x] - Fastener Specifications

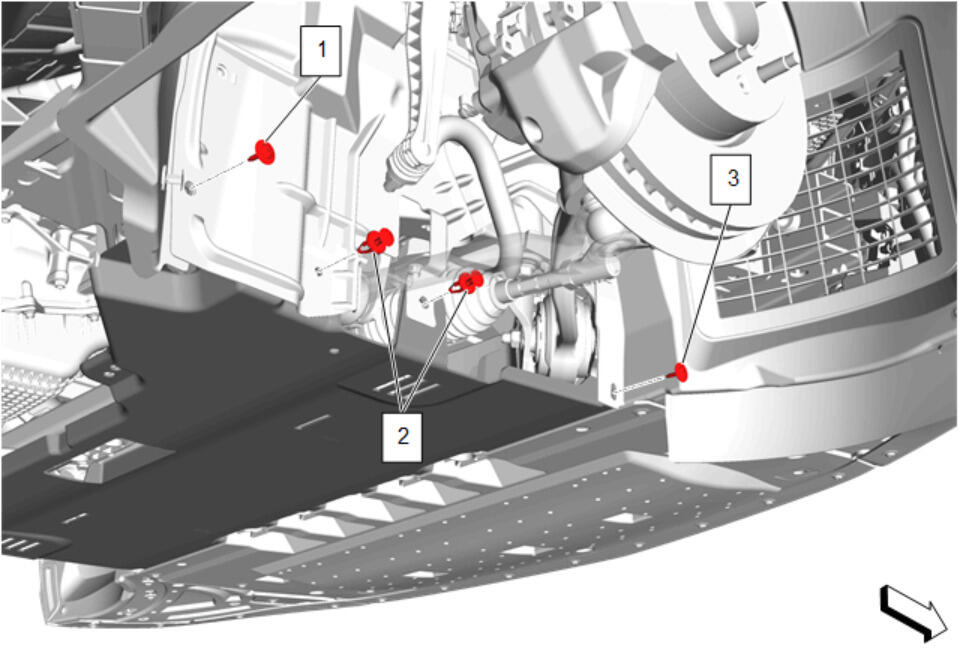

Front Wheelhouse Liner Bolt (3) - Install and tighten - Fastener Specifications
- Front Compartment Air Deflector Retainer (2) - Install [2x]
- Engine Front Splash Shield Bolt (1) - Install and tighten - Fastener Specifications
Front Wheelhouse Liner Bolt (1) - Install and tighten - Fastener Specifications
- Front Compartment Air Deflector Retainer (2) - Install [2x]
- Engine Front Splash Shield Bolt (3) - Install and tighten - Fastener Specifications

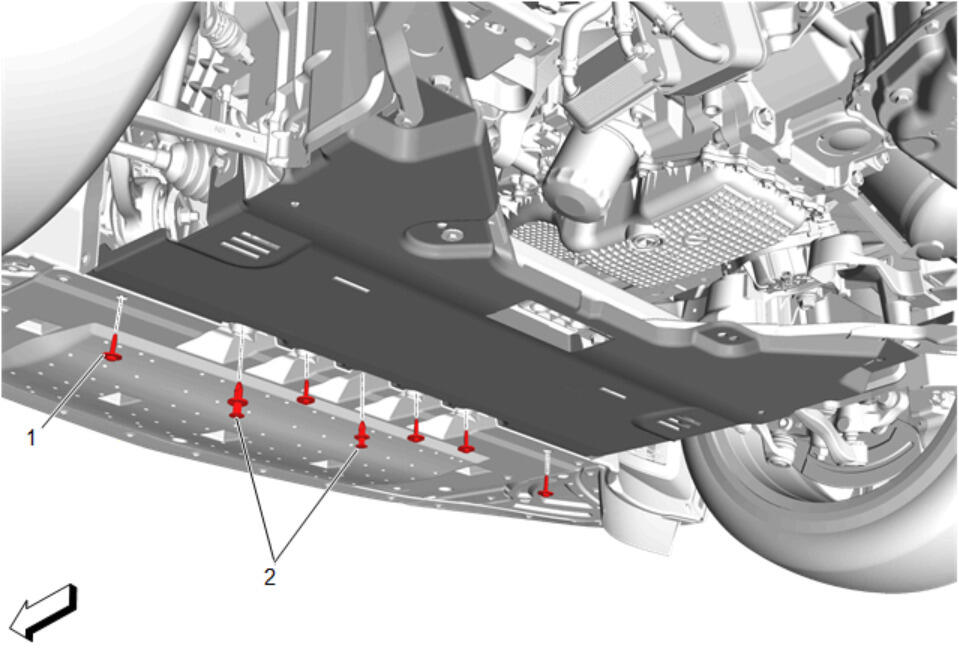

Front Bumper Fascia Air Deflector Retainer (2) - Install [2x]
- Front Compartment Air Deflector Bolt (1) - Install and tighten [5x] - Fastener Specifications
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Lower the vehicle.
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
