Fastener Specifications

GM5484187Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Accelerator Pedal Bracket Bolt - - 9 N.m (80 lb in) Accelerator Pedal Replacement

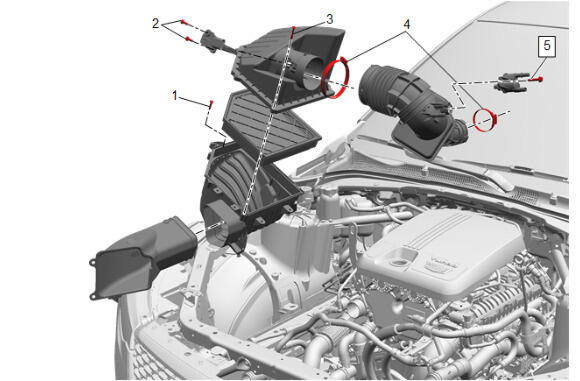

GM5483682Courtesy of GENERAL MOTORS COMPANY
Air Intake System with Mass Airflow Sensor and Purge Solenoid Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Air Cleaner Assembly Bolt - - 9 N.m (80 lb in) Air Cleaner Assembly Replacement
2 Mass Airflow Sensor Bolt [2x] - - 1.6 N.m (14 lb in) Mass Airflow Sensor Replacement
3 Air Cleaner Housing Cover Bolt [5x] - - 9 N.m (80 lb in) Air Cleaner Element Replacement
4 Air Cleaner Outlet Duct Clamp [2x] - - 4 N.m (35 lb in) Air Cleaner Outlet Duct Replacement
5 Evaporative Emission Canister Purge Solenoid Valve Bolt - - 9 N.m (80 lb in) Evaporative Emission Canister Purge Solenoid Valve Replacement

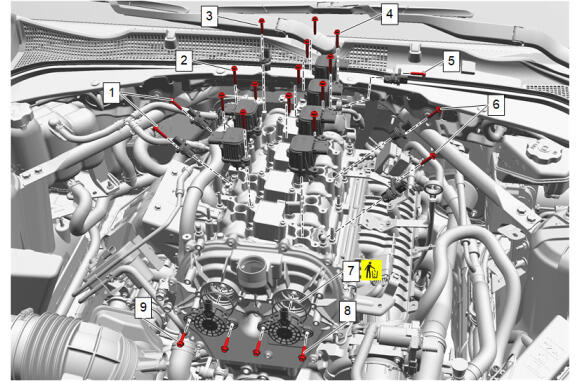

GM5484280Courtesy of GENERAL MOTORS COMPANY
Camshaft Sensors and Actuators

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Camshaft Exhaust Lobe Sensor Bolt [2x] - - 8.5 N.m (75 lb in) Exhaust Camshaft Profile Sleeve Position Sensor Replacement
2 Camshaft Lobe Position Actuator Bolt [4x] - - 8.5 N.m (75 lb in) Camshaft Position Actuator Replacement - Exhaust
3 Camshaft Position Sensor Bolt - - 8.5 N.m (75 lb in) Camshaft Position Sensor Replacement - Exhaust
4 Camshaft Lobe Position Actuator Bolt [8x] - - 8.5 N.m (75 lb in) Camshaft Position Actuator Replacement - Intake
5 Camshaft Position Sensor Bolt - - 8.5 N.m (75 lb in) Camshaft Position Sensor Replacement - Intake
6 Camshaft Intake Lobe Sensor Bolt [2x] - - 8.5 N.m (75 lb in) Intake Camshaft Profile Sleeve Position Sensor Replacement
7 Camshaft Position Actuator Magnet Gasket [2x] Yes - - Camshaft Position Actuator Valve Solenoid Replacement - Intake
8 Camshaft Position Actuator Valve Solenoid Bolt [2x] - - 8.5 N.m (75 lb in) Camshaft Position Actuator Valve Solenoid Replacement - Intake
9 Camshaft Position Actuator Valve Solenoid Bolt [2x] - - 8.5 N.m (75 lb in) Camshaft Position Actuator Valve Solenoid Replacement - Exhaust
GM5484959Courtesy of GENERAL MOTORS COMPANY
Charge Air Bypass Valve and Charge Air Cooler with Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Bypass Valve Bolt [3x] - - 9 N.m (80 lb in) Charge Air Bypass Valve Replacement
2 Throttle Inlet Absolute Pressure Sensor Bolt - - 5 N.m (44 lb in) Throttle Inlet Absolute Pressure Sensor Replacement
3 Charge Air Cooler Bolt [2x] - - 6 N.m (53 lb in) Charge Air Cooler Replacement

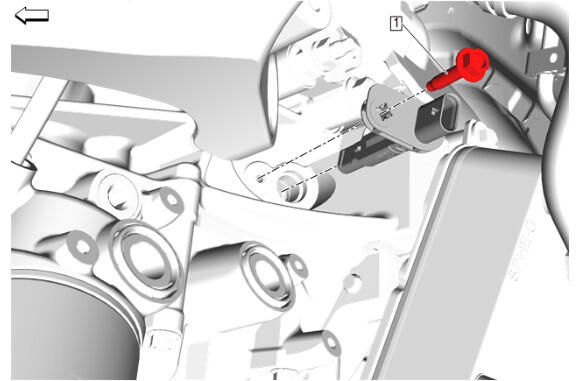

GM5509306Courtesy of GENERAL MOTORS COMPANY
Crankshaft Position Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Crankshaft Position Sensor Bolt - - 8.5 N.m (75 lb in) Crankshaft Position Sensor Replacement
GM5484153Courtesy of GENERAL MOTORS COMPANY
Engine Control Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Control Module Bracket Bolt [2x] - - 9 N.m (80 lb in) Engine Control Module Bracket Replacement
2 Engine Control Module Bracket Nut - - 9 N.m (80 lb in) Engine Control Module Bracket Replacement

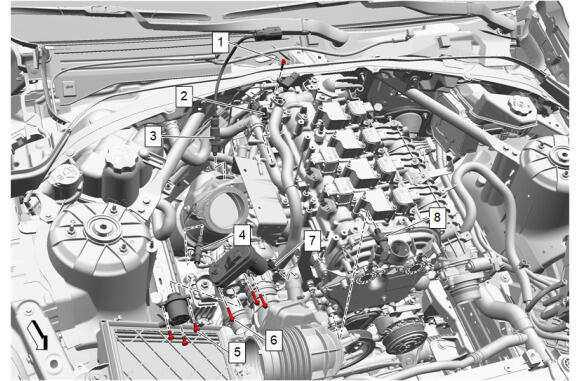

GM5642118Courtesy of GENERAL MOTORS COMPANY
Engine Sensors - Right Side of Engine

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Crankcase Pressure Sensor Bolt - - 8.5 N.m (75 lb in) Crankcase Pressure Sensor Replacement
2 Engine Coolant Temperature Sensor - - 9 N.m (80 lb in) Engine Coolant Temperature Sensor Replacement - Engine Coolant Heater Exhaust Pipe
3 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Sensor 1
4 Heated Oxygen Sensor - - 42 N.m (31 lb ft) Heated Oxygen Sensor Replacement - Sensor 2
5 Charge Air Bypass Regulator Solenoid Valve Bolt [3x] - - 6 N.m (53 lb in) Heated Oxygen Sensor Replacement - Sensor 2
5 Turbocharger Wastegate Actuator Bolt [3x] - - 6.5 N.m (58 lb in) Turbocharger Wastegate Actuator Replacement
6 Engine Coolant Temperature Sensor - - 9 N.m (80 lb in) Engine Coolant Temperature Sensor Replacement - Water Pump Outlet Pipe
7 Engine Oil Pressure Sensor - - 35 N.m (26 lb ft) Engine Oil Pressure Sensor Replacement

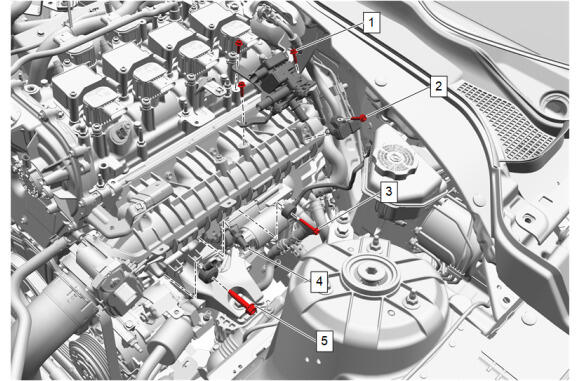

GM5485757Courtesy of GENERAL MOTORS COMPANY
Engine Sensors - Left Side of Engine

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Evaporative Emission Canister Purge Pump Bolt - - 8.5 N.m (75 lb in) Evaporative Emission Canister Purge Pump Replacement
2 Intake Air Pressure and Temperature Sensor Bolt - - 8.5 N.m (75 lb in) Intake Air Pressure and Temperature Sensor Replacement
3 Knock Sensor Bolt (Position 2) - - 15 N.m (11 lb ft) Knock Sensor Replacement (Position 1) , or Knock Sensor Replacement (Position 2)
4 Engine Coolant Temperature Sensor - - 9 N.m (80 lb in) Engine Coolant Temperature Sensor Replacement - Engine Block
5 Knock Sensor Bolt (Position 1) - - 15 N.m (11 lb ft) Knock Sensor Replacement (Position 1) , or Knock Sensor Replacement (Position 2)

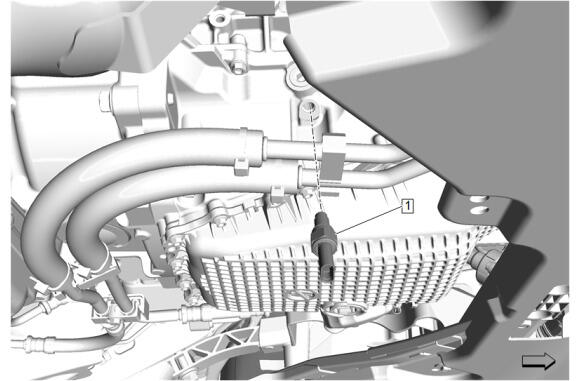

GM5510088Courtesy of GENERAL MOTORS COMPANY
Engine Oil Temperature Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Oil Temperature Sensor - - 20 N.m (15 lb ft) Engine Oil Temperature Sensor Replacement

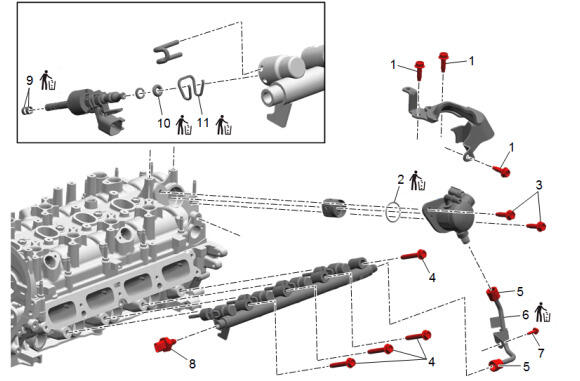

Fig 1: Exploded View Of Fuel Rail And Fuel Injector Components
GM5493934Courtesy of GENERAL MOTORS COMPANY
Fuel Rail and Fuel Injector Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Pump Shield Bolt [3x] - - 8.5 N.m (75 lb in) Fuel Pump Replacement
2 Fuel Pump Seal Yes - - Fuel Pump Replacement
3 Fuel Pump Bolt [2x] - - 36 N.m (27 lb ft) Fuel Pump Replacement
4 Fuel Injection Fuel Rail Bolt [4x] - - 36 N.m (27 lb ft) Fuel Injection Fuel Rail Assembly Replacement
5 Fuel Injection Fuel Feed Front Pipe Nut [2x] - - 30 N.m (22 lb ft) Fuel Feed Intermediate Pipe Replacement
6 Fuel Feed Intermediate Pipe Yes - - Fuel Feed Intermediate Pipe Replacement
7 Fuel Injection Fuel Feed Pipe Bolt - - 8.5 N.m (75 lb in) Fuel Feed Intermediate Pipe Replacement
8 Fuel Injection Fuel Rail Fuel Pressure Sensor - - 32.5 N.m (24 lb ft) Fuel Rail Pressure Sensor Replacement
9 Fuel Injector Nozzle Housing Seal [8x] Yes - - Fuel Injector Replacement
10 Fuel Injection Fuel Rail Seal [4x] Yes - - Fuel Injector Replacement
11 Direct Fuel Injector Hold Down Clamp [4x] Yes - - Fuel Injector Replacement
GM5492263Courtesy of GENERAL MOTORS COMPANY
Fuel Tank and Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Filler Pipe Ground Bolt [2x] - - 9 N.m (80 lb in) Fuel Tank Filler Pipe Replacement
2 Fuel Pump Power Control Module Nut [3x] - - 9 N.m (80 lb in) Fuel Pump Power Control Module Replacement
3 Fuel Pump Seal Yes - - Fuel Tank Fuel Pump Module Replacement
4 Fuel Tank Strap Bolt (Front) [3x] - - 22 N.m (16 lb ft) Fuel Tank Fuel Pump Module Replacement
5 Fuel Tank Strap Bolt (Rear) [2x] - - 27 N.m (20 lb ft) Fuel Tank Fuel Pump Module Replacement
6 Fuel Tank Filler Hose Clamp [2x] - - 3.5 N.m (31 lb in) Fuel Tank Filler Hose Replacement
GM5509279Courtesy of GENERAL MOTORS COMPANY
Oil Pump Flow Control Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Oil Pump Flow Control Valve Bolt - - 8.5 N.m (75 lb in) Oil Pump Flow Control Solenoid Valve Replacement (RWD) , or Oil Pump Flow Control Solenoid Valve Replacement (AWD)

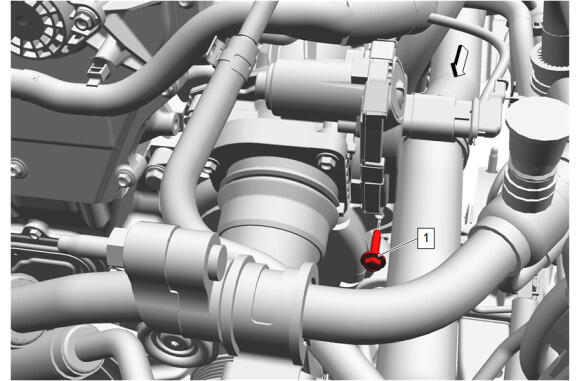

GM5581829Courtesy of GENERAL MOTORS COMPANY
Radiator Inlet Hose Bracket Bolt

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Inlet Hose Bracket Bolt - - 9 N.m (80 lb in) Knock Sensor Replacement (Position 1) , or Knock Sensor Replacement (Position 2)

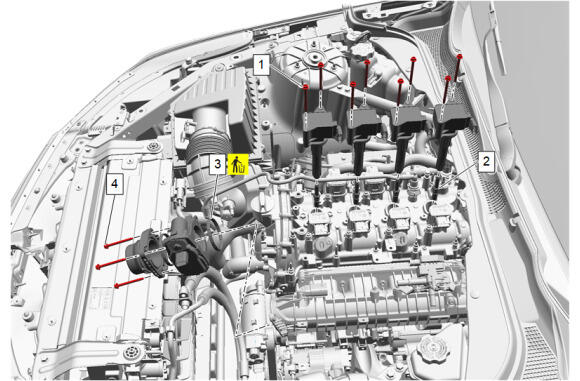

GM5493900Courtesy of GENERAL MOTORS COMPANY
Throttle Body and Ignition Coils

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Ignition Coil Bolt [8x] - - 8.5 N.m (75 lb in) Ignition Coil Replacement
2 Gas Engine Ignition Spark Plug
[4x]		 - - 17 N.m (13 lb ft) Gas Engine Ignition Spark Plug Replacement
3 Throttle Body Seal [2x] Yes - - Throttle Body Assembly Replacement
4 Throttle Body Bolt [3x] - - 8.5 N.m (75 lb in) Throttle Body Assembly Replacement
