Removal Procedure

  1. Remove the front bumper fascia. Front Bumper Fascia Removal and Installation

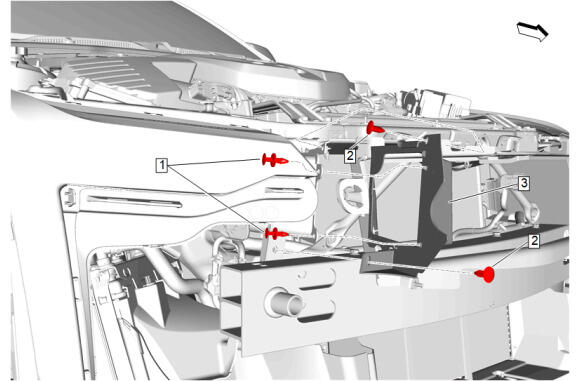

  2. GM5522060Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Deflector Retainer (1) - Remove [2x]

  3. Radiator Air Upper Baffle Retainer (2) - Remove [2x]
  4. Radiator Air Front Upper Baffle (3) - Remove
  5. GM5422177Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Upper Baffle Retainer- Side (1) - Remove [2x]

  6. Radiator Air Upper Baffle Retainer (2) - Remove [4x]

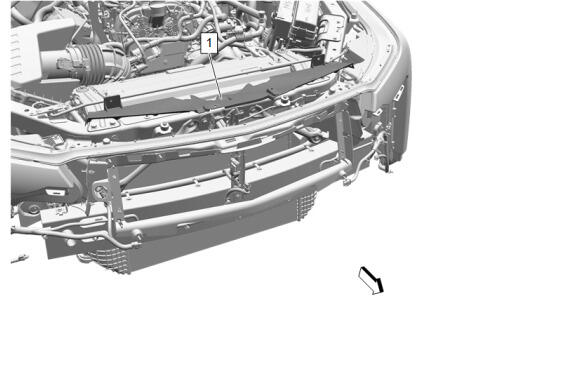

  7. GM5585861Courtesy of GENERAL MOTORS COMPANY

    Radiator Air Front Upper Baffle (1) - Remove

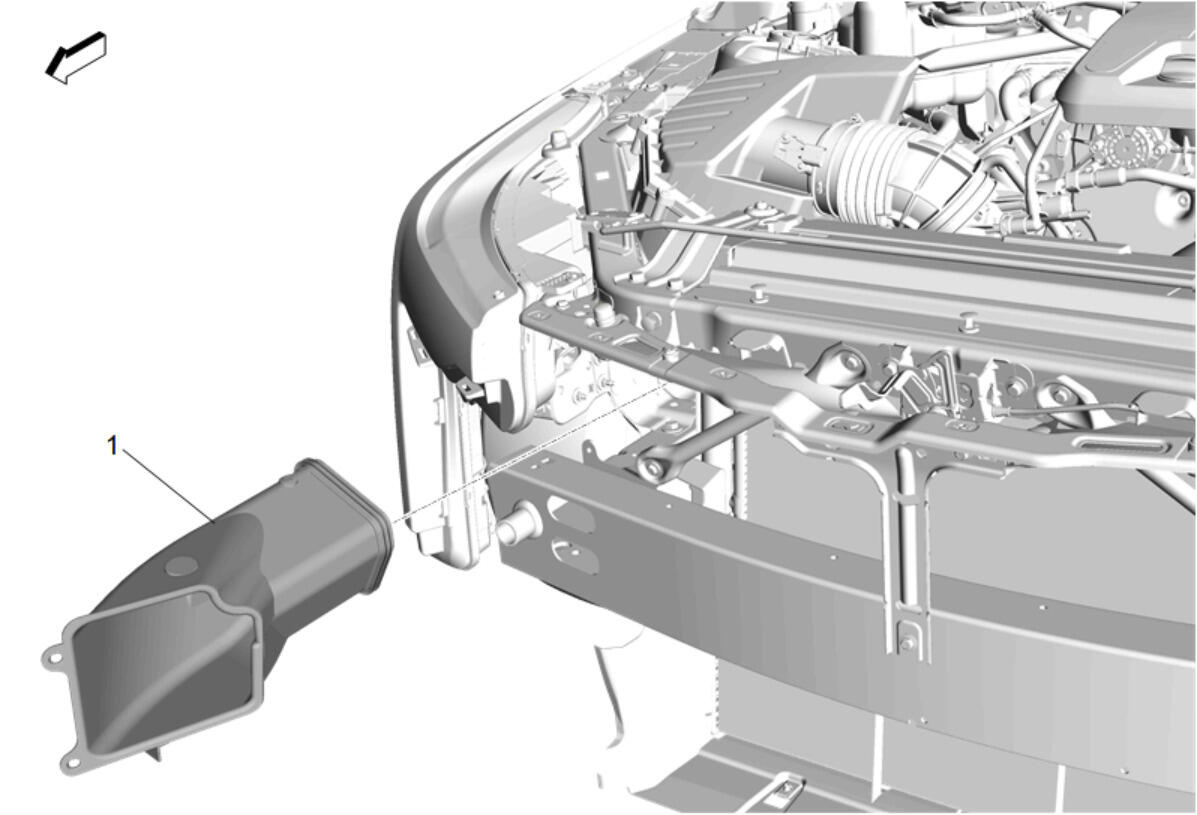

  8. GM5405710Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct (1) - Remove
