Removal Procedure

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

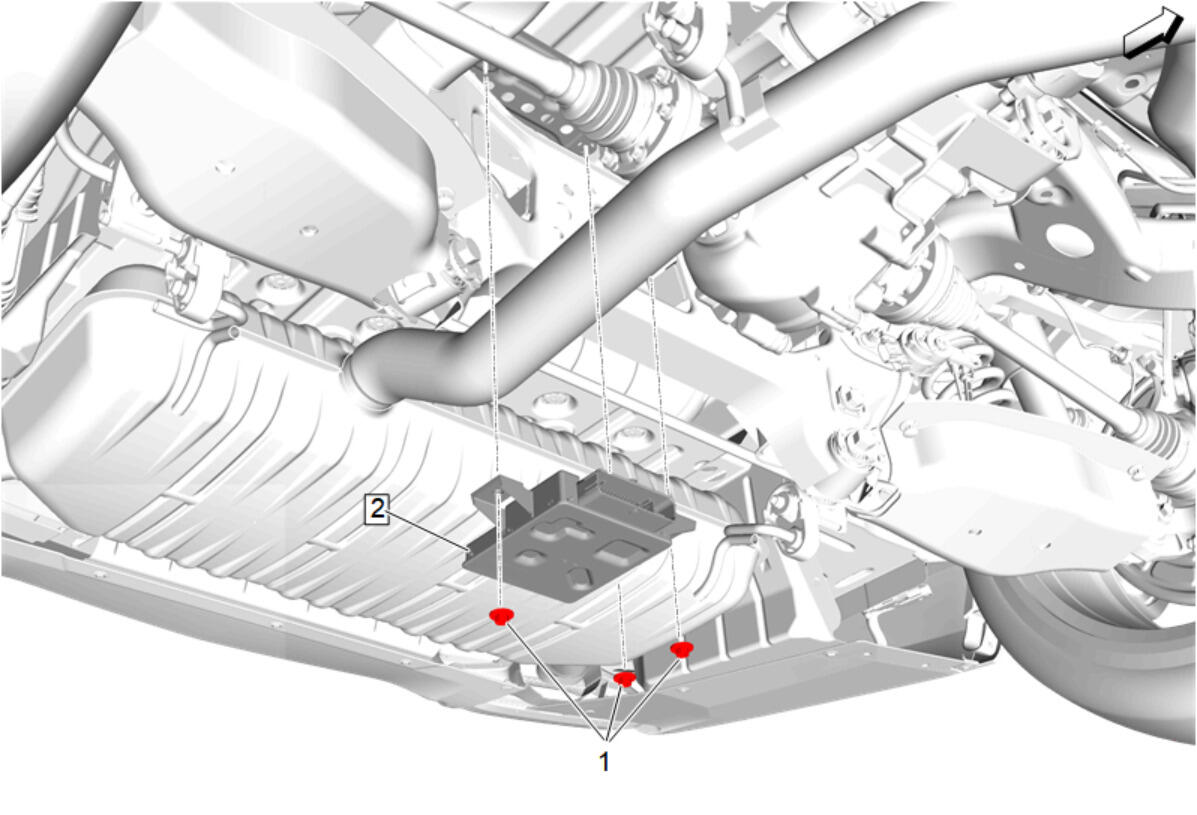

  2. GM5405471Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  3. Fuel Pump Power Control Module Nut (1) - Remove [3x]
  4. Fuel Pump Power Control Module (2) - Remove
