Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

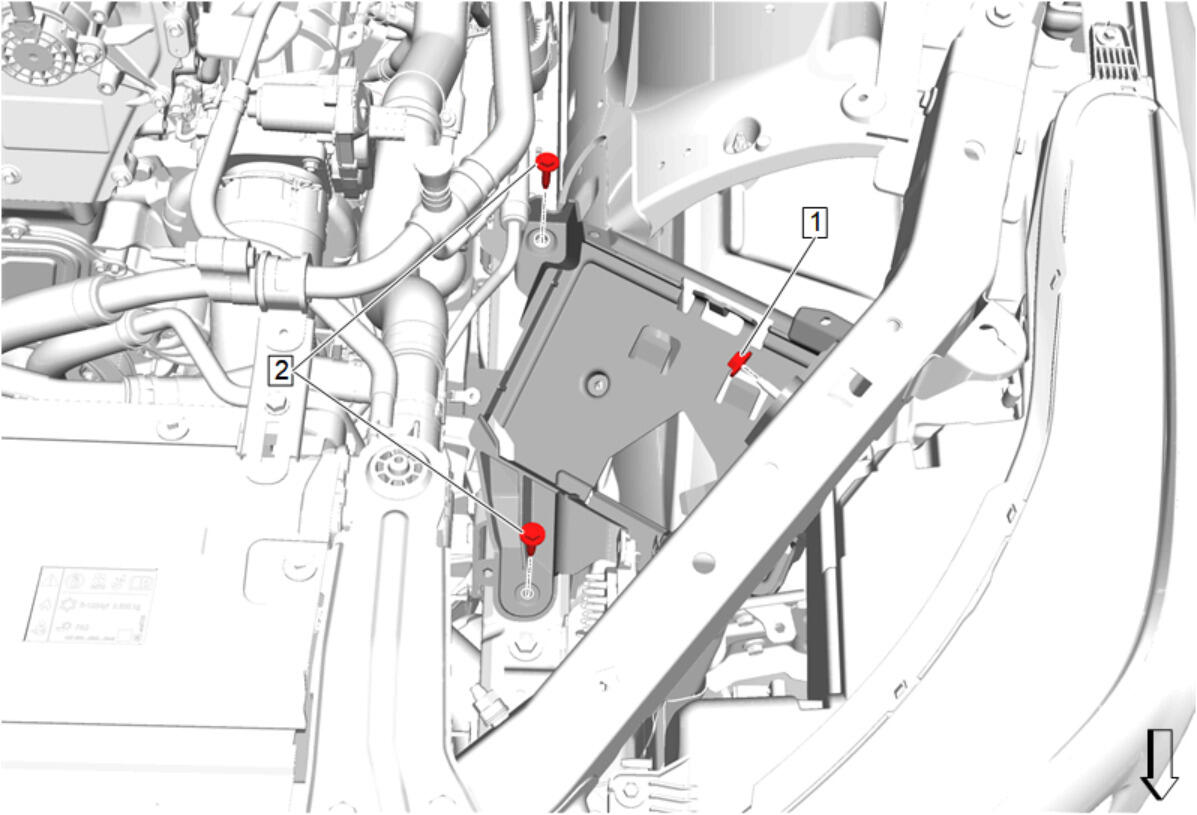

Engine Control Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Engine Control Module Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Engine Control Module Bracket Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the transmission control module electrical harness retainer.

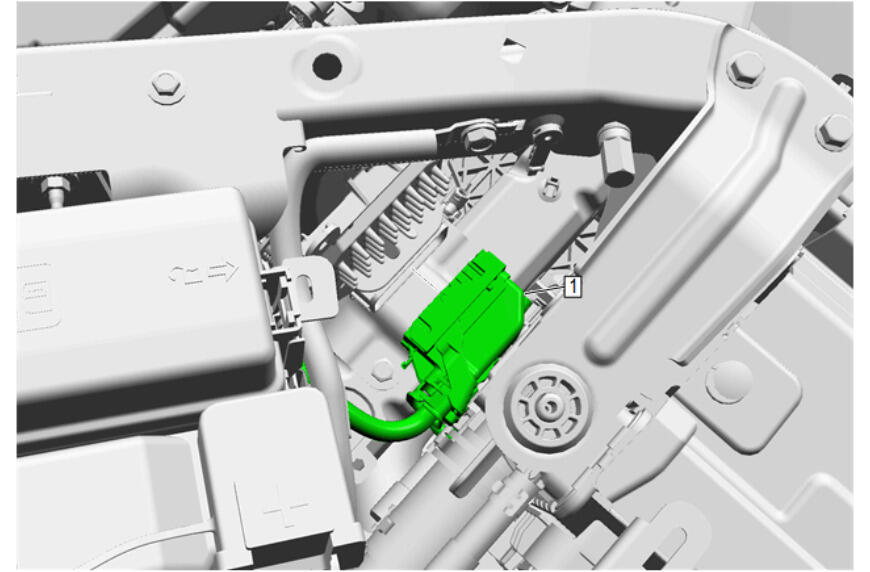

Connect the transmission control module electrical connector (1).

NOTE:

Engine control module electrical harness retainer is installed at a later step.

Install all electrical harness retainers to the engine control module bracket, except the engine control module electrical harness retainer.
If replacing the engine control module, it is necessary to reprogram the replacement module. Control Module References
Courtesy of GENERAL MOTORS COMPANY

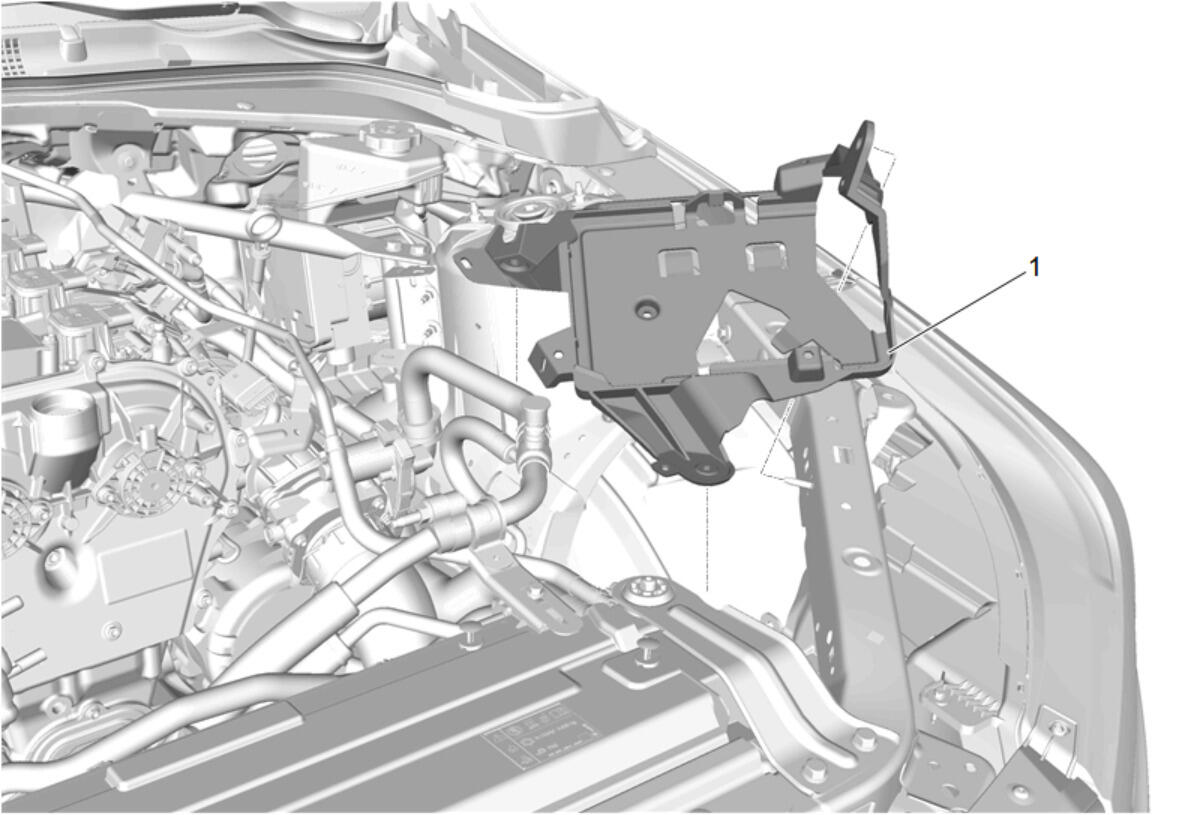

Engine Control Module (1) - Install
Connect the engine control module electrical harness retainer at the engine control module bracket.
Courtesy of GENERAL MOTORS COMPANY

Reconnect the 3 electrical connectors (1) to the engine control module.
Courtesy of GENERAL MOTORS COMPANY

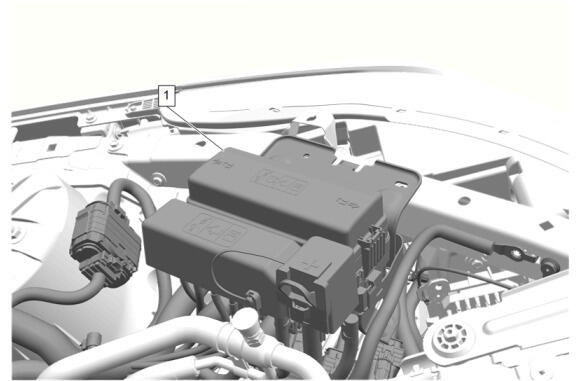

Install the body wiring harness junction block bracket and fuse block assembly (1).
Courtesy of GENERAL MOTORS COMPANY

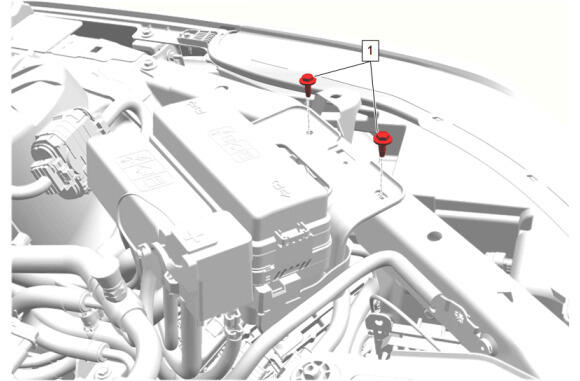

Body Wiring Harness Junction Block Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

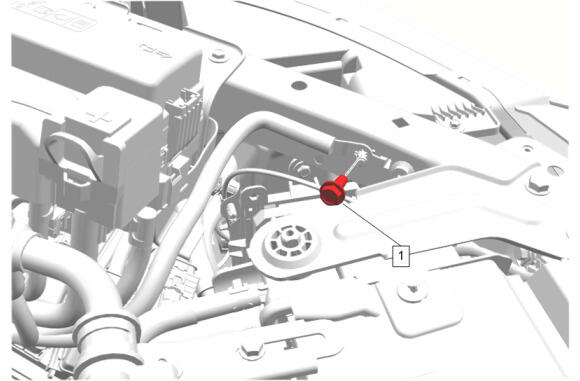

Battery Negative Cable Ground Bolt (1) - Install and tighten - Fastener Specifications
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
