Installation Procedure

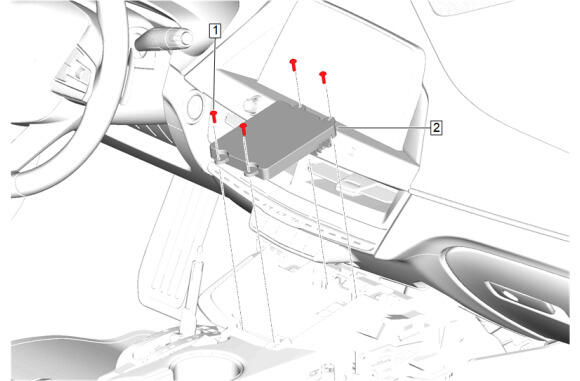

  1. GM5488339Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  2. Wireless Charging System Module (2) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications

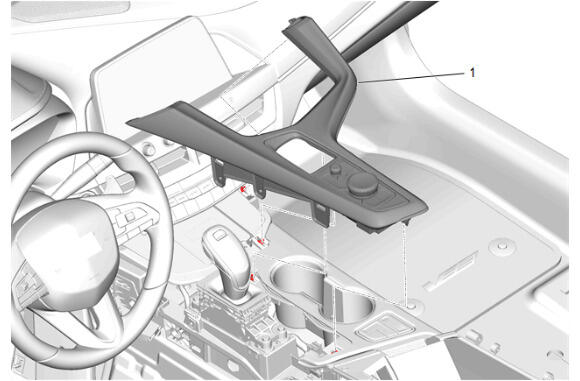

  4. GM5502706Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  5. Front Floor Console Trim Plate (1) - Install

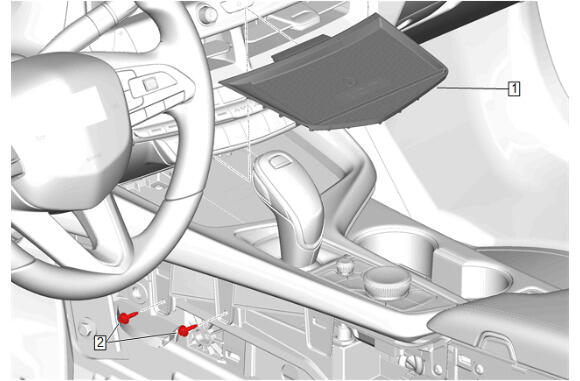

  6. GM5502705Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (2) - Install and tighten [2x] - Fastener Specifications

  7. Front Floor Console Variable 1 Liner (1) - Install

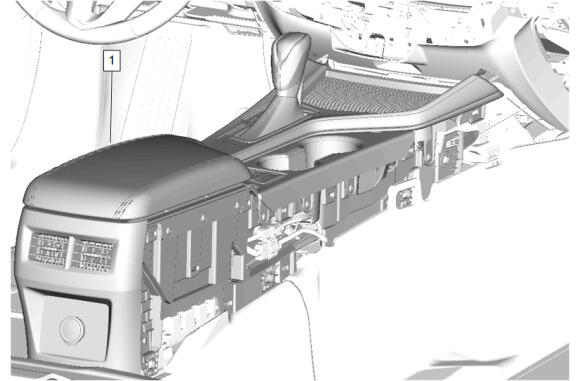

  8. GM5482681Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

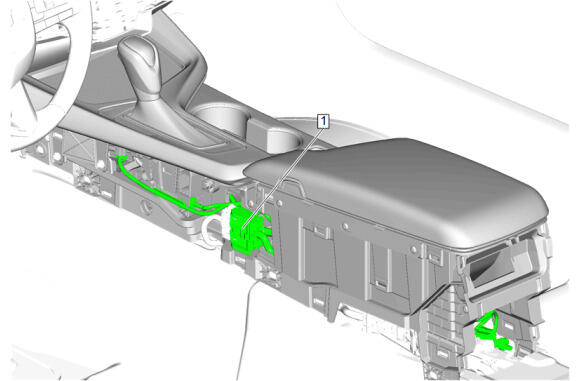

  9. GM5643539Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console harness connector (1).

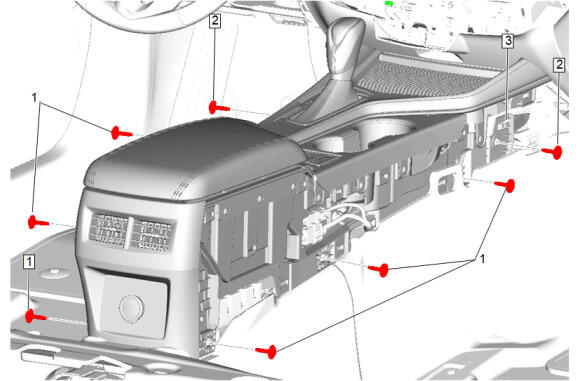

  10. GM5482680Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications

  11. Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications

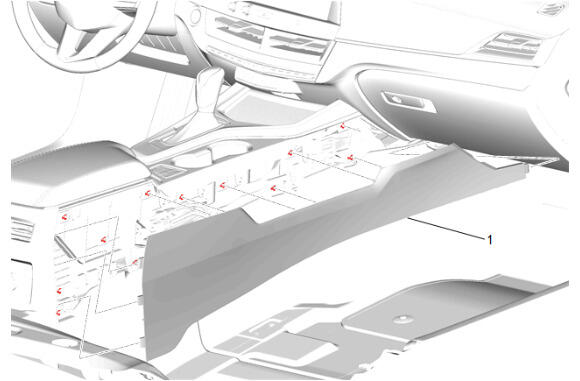

  12. GM5479956Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Right Side (1) - Install

  13. Return the seat to its original position.

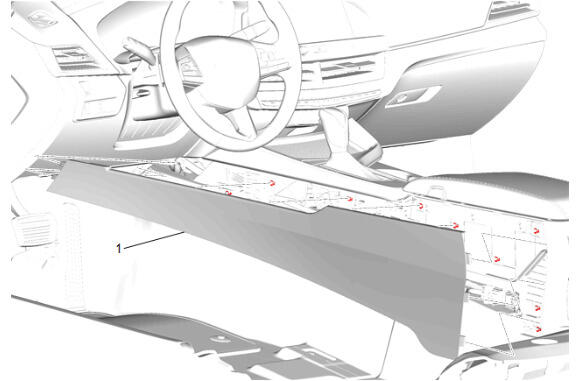

  14. GM5479957Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel - Left Side (1) - Install

  15. Return the seat to its original position.
  16. Perform the necessary programming and setup procedure:Control Module References
