Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Wireless Charging System Module (2) - Install

CAUTION:

Refer to Fastener Caution .

Wireless Charging System Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

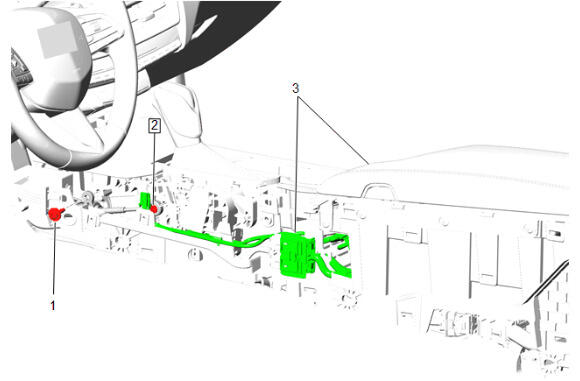

Automatic Transmission Range Selector Lever Cable Bolt (1) - Install and tighten - Fastener Specifications
Automatic Transmission Range Selector Lever Cable (2) - Install and tighten - Fastener Specifications
Connect the front floor console wiring harness (3) to the body wiring harness.
Courtesy of GENERAL MOTORS COMPANY

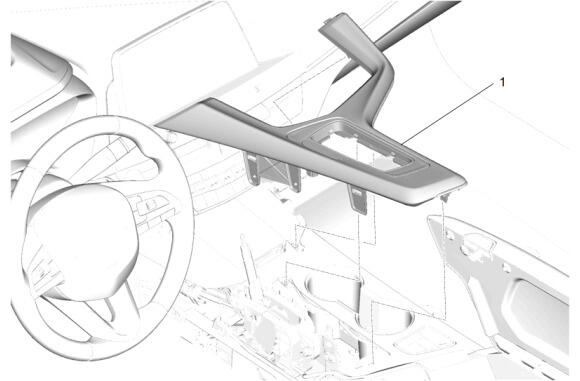

Front Floor Console Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

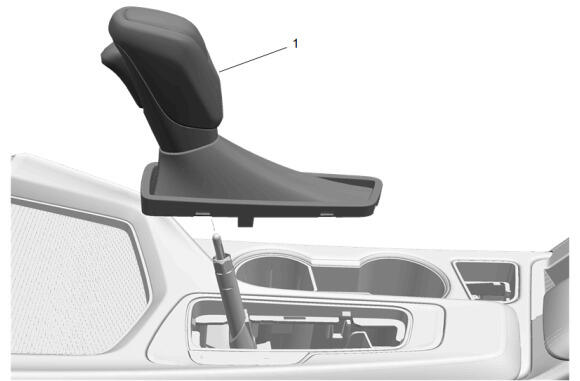

Install the automatic transmission control lever knob (1) then press down to engage the retainer.
Carefully pull upward on the automatic transmission control lever knob (1) to ensure that the retainer is engaged.
Courtesy of GENERAL MOTORS COMPANY

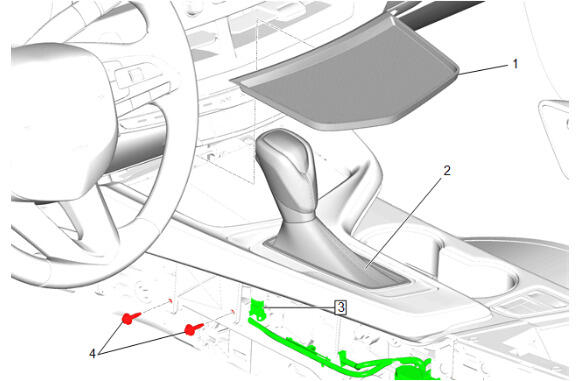

Front Floor Console Trim Plate Bolt (4) - Install and tighten [2x] - Fastener Specifications
Connect the electrical connector (3).
Insert the transmission control lever boot (2) into the front floor console trim plate.
Shift the transmission through each gear and ensure that the shift lever knob operates properly.
Front Floor Console Variable 1 Liner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Slide the front floor console (1) back into the instrument panel.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Bolt (1) - Install and tighten [6x] - Fastener Specifications
Front Floor Console Bracket Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install
Return the seat to its original position.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install
Return the seat to its original position.
Perform the necessary programming and setup procedure:Control Module References
