Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

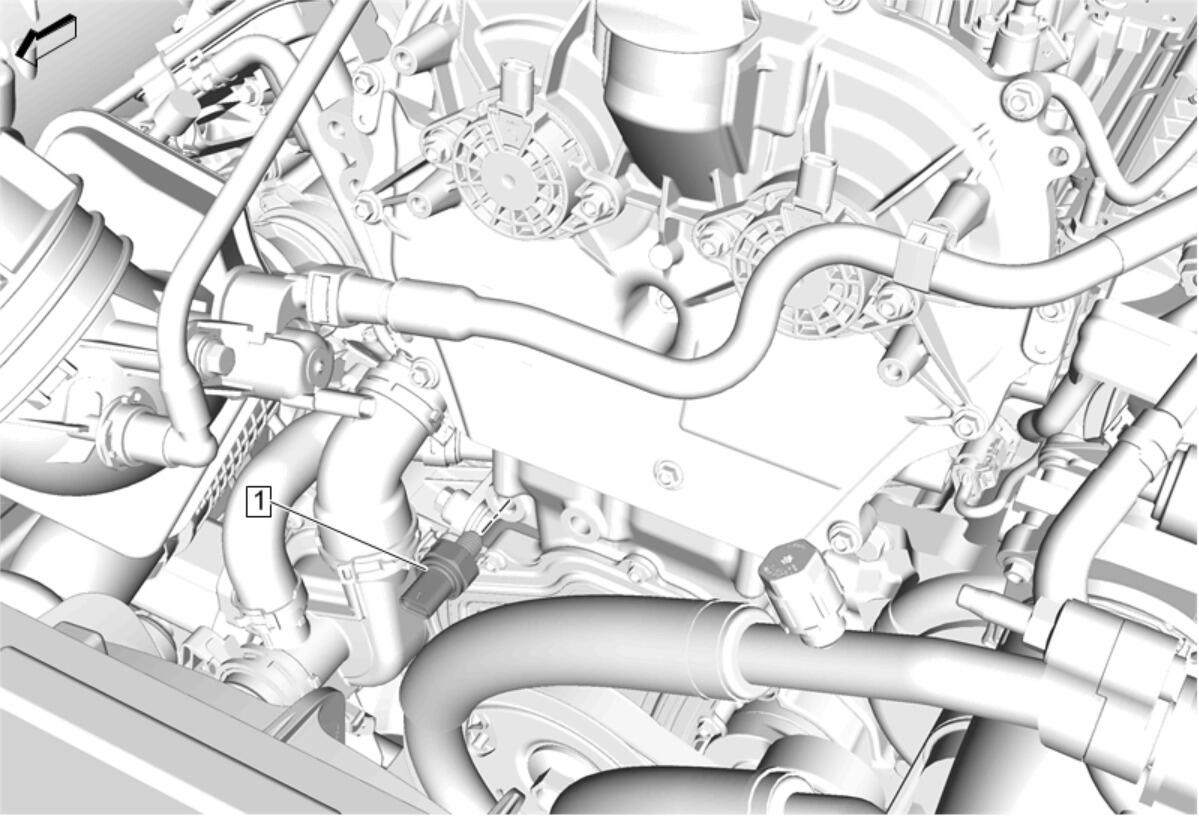

Engine Oil Pressure Sensor (1) - Install and tighten - Fastener Specifications
Connect the oil pressure sensor electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the intake manifold cover fully engages the intake manifold cover studs.
Push down on the front of the intake manifold cover (1) as indicated.
Install the oil fill cap.
