Installation Procedure

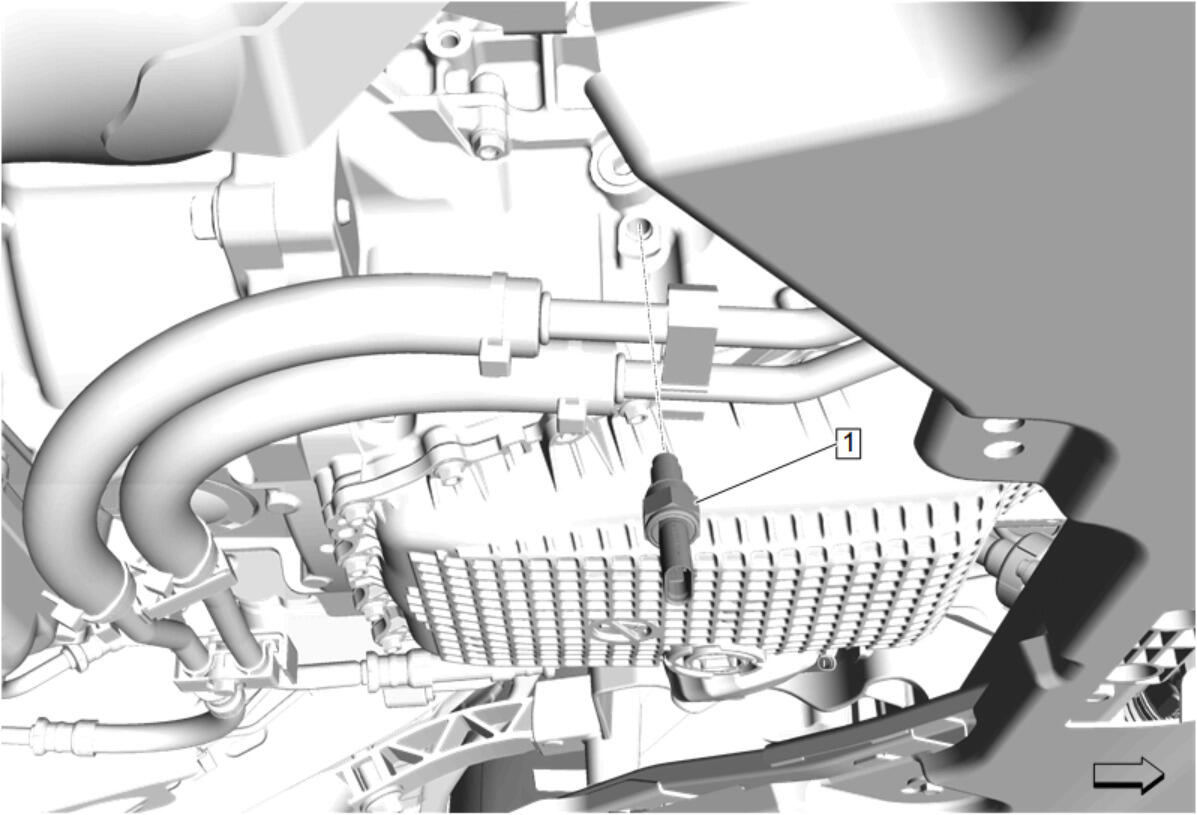

  1. GM5404656Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Engine Oil Temperature Sensor (1) - Install and tighten - Fastener Specifications

  2. Connect the electrical connector.
  3. Remove the support and lower the vehicle.
  4. Top off engine oil as needed.
