Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 GMC Yukon XL, 2020 GMC Yukon, 2020 Chevrolet Tahoe, 2020 Chevrolet Suburban, and 2020 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

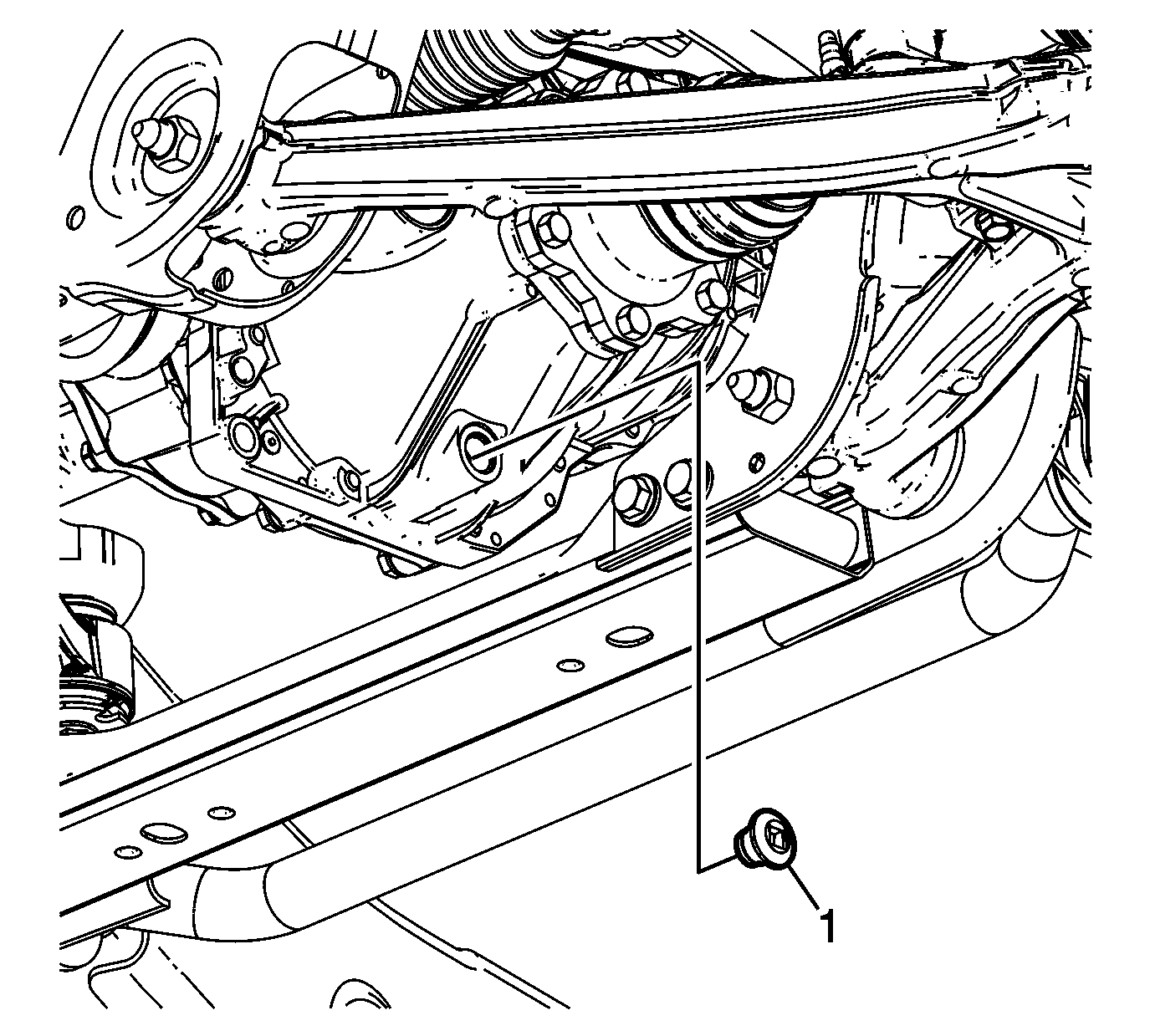

Fig 1: Identifying Front Axle Drain Plug
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the drain plug (1).

Tighten

Tighten the drain plug to 45 N.m (33 lb ft).

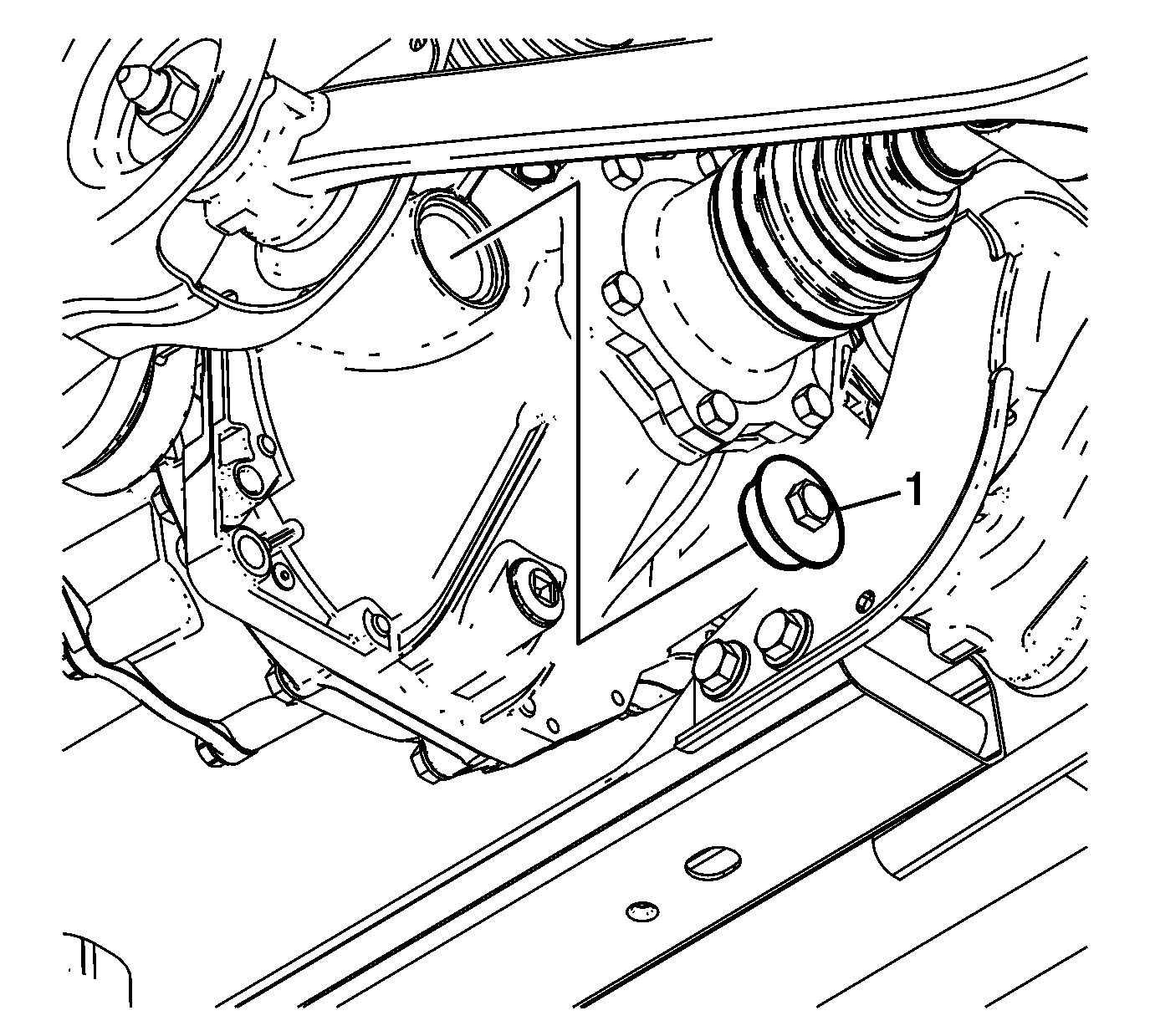

Fig 2: Identifying Front Axle Fill Plug
Courtesy of GENERAL MOTORS COMPANY

Remove the fill plug (1)
Fill the differential carrier assembly with axle lubricant. Use the correct fluid. Refer to Approximate Fluid Capacities , and Adhesives, Fluids, Lubricants, and Sealers .
Install the fill plug (1).
Tighten

Tighten the fill plug to 33 N.m (24 lb ft).
Install the steering gear skid shield, if equipped. Refer to Steering Gear Skid Shield Replacement .
Lower the vehicle.
