Airbag Front Passenger Presence Module Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 GMC Yukon XL, 2020 GMC Yukon, 2020 Chevrolet Tahoe, 2020 Chevrolet Suburban, and 2020 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

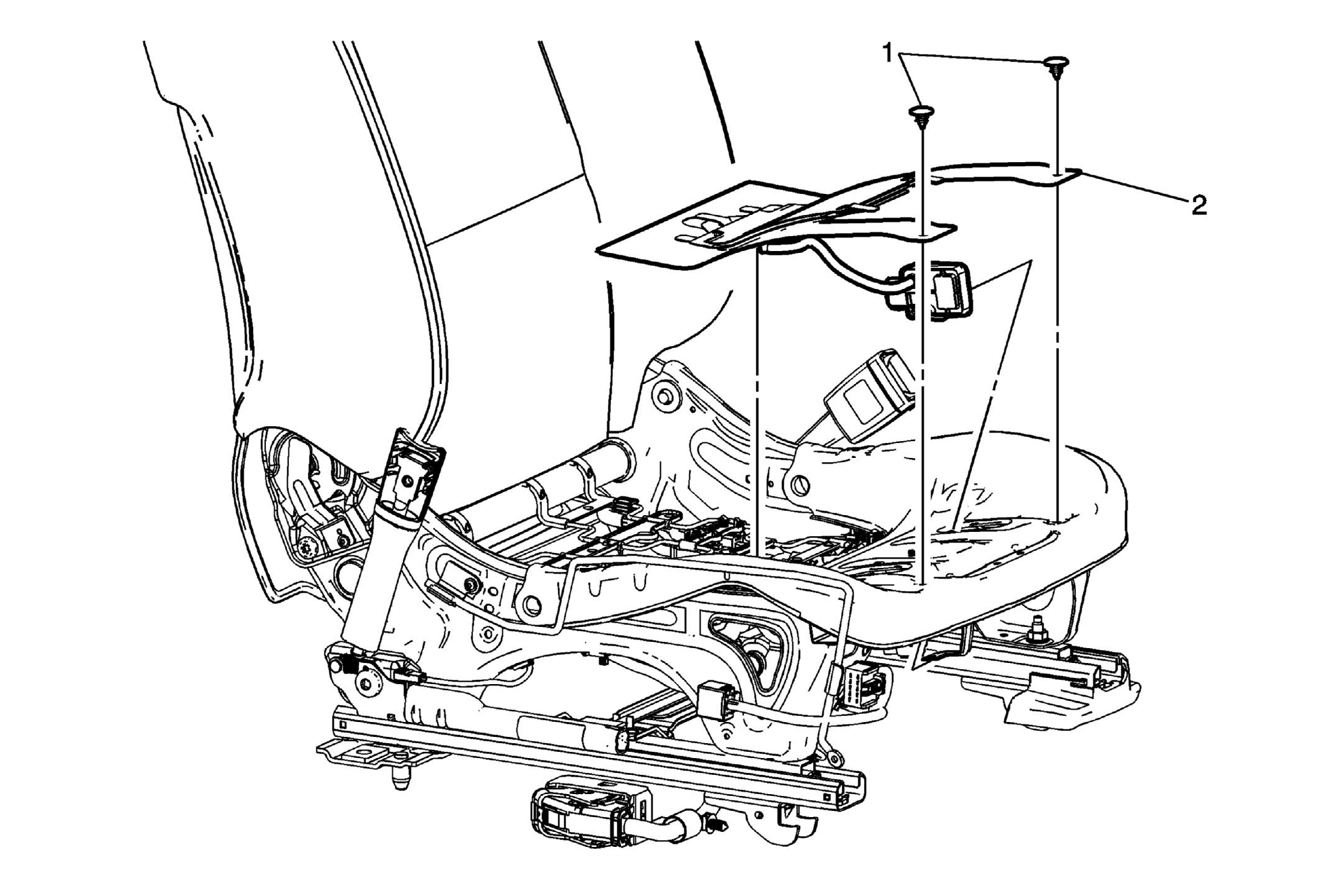

GM3271907Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.

Preliminary Procedure

  1. Remove the driver or passenger seat. Refer to Front Seat Removal and Installation .
  2. Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1 Inflatable Restraint Front Passenger Presence Module Retainer (Qty: 2)
2 Inflatable Restraint Front Passenger Presence Module

Procedure

  1. Unhook the module from the bracket on the underside of seat frame and push up through seat pan.
  2. Disconnect and remove the sensor and module from the seat pan.
  3. Program the inflatable restraint passenger presence system after replacement. Refer to Passenger Presence System Rezeroing .
