K107 Drive Motor Control Module X2
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

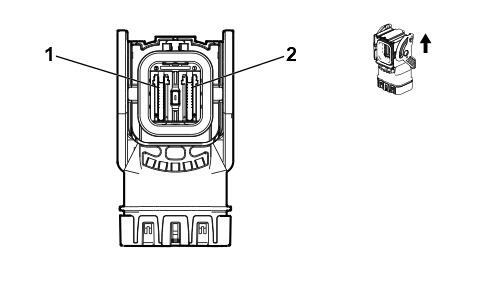

Connector Part Information
- Harness Type: Battery Positive and Negative Cable - High Voltage
- OEM Connector: H7Z009-000-A
- Service Connector: Service by Harness
- Description: 2-Way F HVR270 Shielded Series, Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
50 |
OG |
10856 |
High Voltage Battery Traction Power Inverter Module 1 [+] |
I |
- |
| 2 |
50 |
OG / BK |
10858 |
High Voltage Battery Traction Power Inverter Module 1 [-] |
I |
- |
