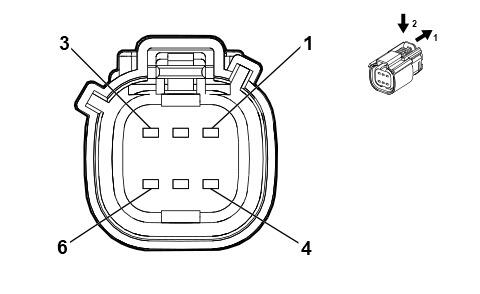

K43 Power Steering Control Module X6
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Steering Gear Torque and Angle Sensor
- OEM Connector: Not Available
- Service Connector: Service by Harness
- Description: 6-Way
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
- |
GY / RD |
8371 |
Handwheel Channel B High Reference |
I |
- |
| 3 |
- |
GN |
8372 |
Handwheel Channel B Torque Pressure Sensor 1 SENT Signal |
I |
- |
| 4 |
- |
YE / GN |
8373 |
Handwheel Channel B Torque Pressure Sensor 2 SENT Signal |
I |
- |
| 5 |
- |
GN / BU |
8374 |
Handwheel Channel B Angle Position Sensor SENT Signal |
I |
- |
| 6 |
- |
BK / GY |
8375 |
Handwheel Channel B Low Reference |
I |
- |
