Removal Procedure
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
The body side rear window garnish molding does not need to be removed from the vehicle.
Body Side Rear Window Garnish Molding (1) - Reposition
Starting at the top and working down with a trim tool, grasp the body lock pillar garnish molding (1) and gently pull the panel away from the body to release the retainers.
- Body Lock Pillar Garnish Molding (1) - Reposition
Disconnect the electrical connectors.

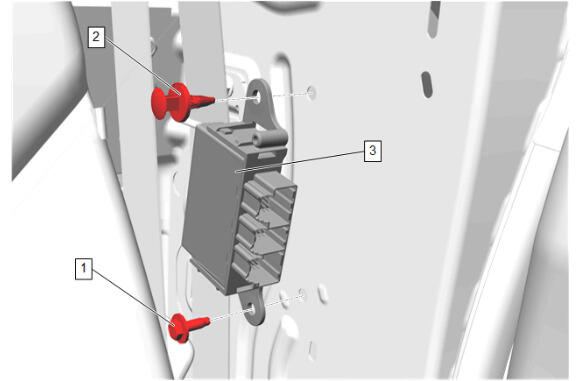

- Parking Assist Alarm Control Module Bolt (1) - Remove
- Parking Assist Control Module Fastener (2) - Remove
- Parking Assist Control Module (3) - Remove
