Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Ensure the silicone decoupling ring is installed on the sensor to avoid sensor failure.

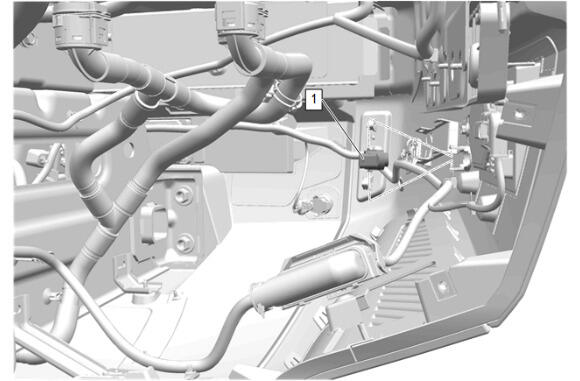

Insert the advanced parking assist rear object sensor (1) into the housing.
- Connect the electrical connector.
Rear Wheelhouse Panel Rear Liner (3) - Install
- Rear Wheelhouse Liner Bolt (1) - Install and tighten [9x] - Fastener Specifications
- Rear Wheelhouse Liner Retainer (2) - Install
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
CAUTION:
Refer to Fastener Caution
