Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

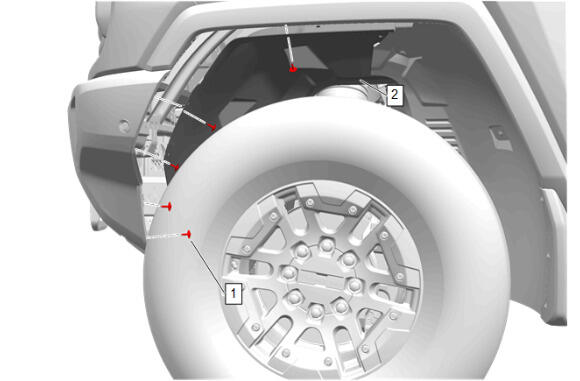

Front Wheelhouse Liner Bolt (1) - Remove [5x]
Front Wheelhouse Front Liner (2) Reposition
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The object sensor is a one piece design. Do NOT twist the sensor cap to try and remove the painted cap. Replacement sensor requires painting to match fascia/bumper body color.

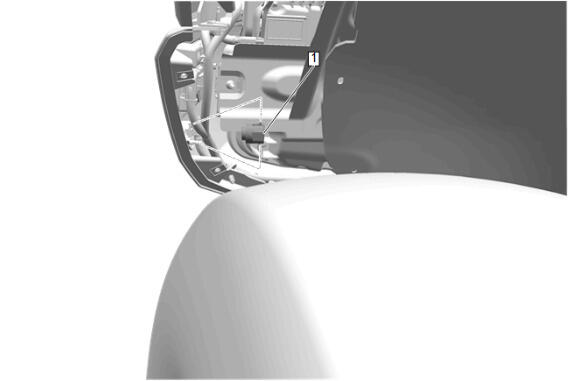

Lift the locking tabs on the housing and remove the advanced parking assist front object sensor (1).
Disconnect the electrical connector.
