Removal Procedure
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Release the retainers with a suitable plastic trim tool.
- Instrument Panel Lower Insulator Retainer (1) - Remove [4x]
- Instrument Panel Lower Trim Panel Insulator (2) - Remove

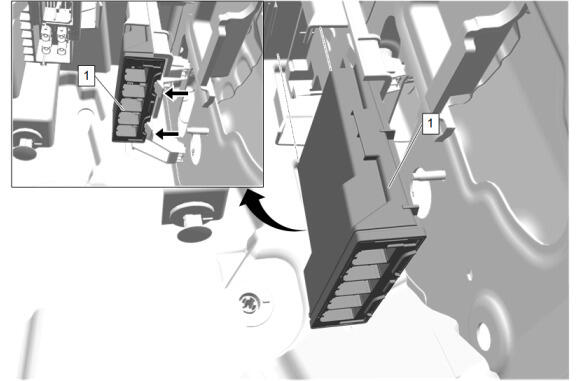

 Courtesy of GENERAL MOTORS COMPANY
|
Disconnect the electrical connectors.
- Release the retaining tabs.
- Lighting Control Module (1) - Remove
