Removal Procedure
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.
With the aid of an assistant, remove the fascia. (1) Front Bumper Fascia Removal and Installation
Disconnect the electrical connector.

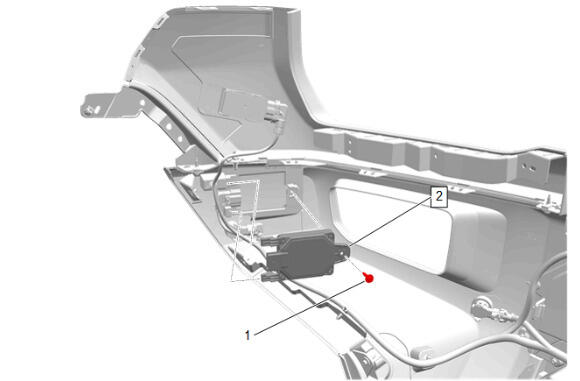

- Short Range Radar Sensor Bolt (1) - Remove
- Front Short Range Radar Sensor (2) - Remove
NOTE:
Observe the mounting location of the short range radar sensor to ensure proper reinstallation.
