Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

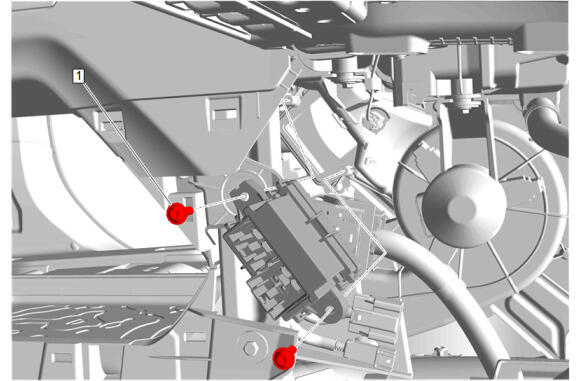

Blower Motor Control Module Replacement - Rear
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Blower Motor Control Module Replacement - Rear |

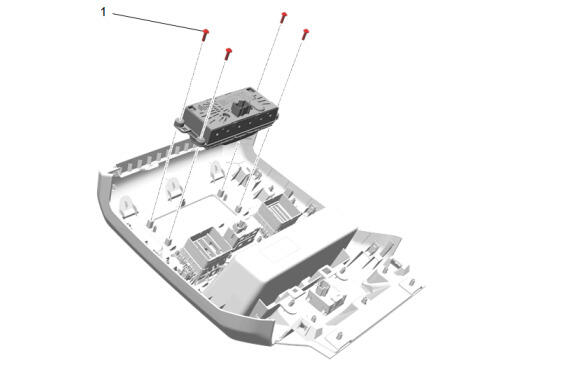

Heater and Air Conditioning Auxiliary Control
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Auxiliary Control Bolt [4x] | - | - | 1.5 N.m (13 lb in) | Heater and Air Conditioning Auxiliary Control Replacement |

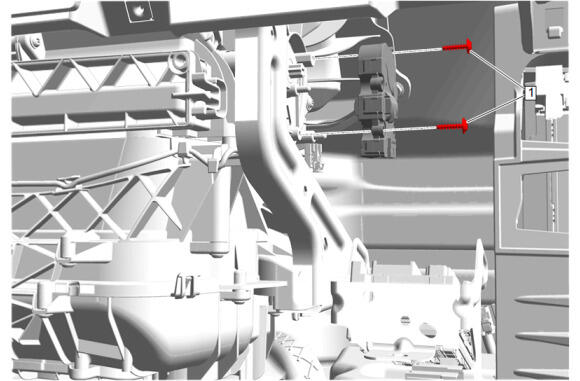

Programmable Temperature Valve Actuator - Air Inlet
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 2 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Programmable Temperature Valve Actuator Replacement - Air Intake |

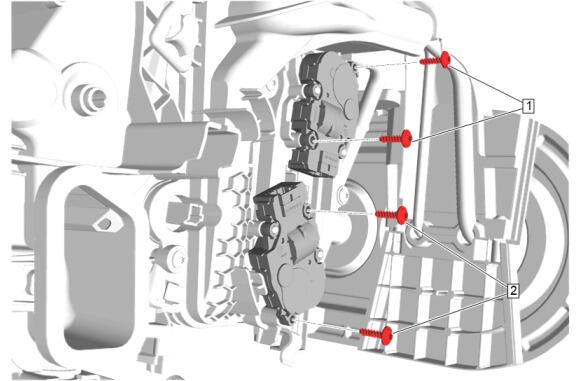

Programmable Temperature Valve Actuator - Front and Rear Temperature
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Programmable Temperature Valve Actuator Replacement - Right Side |
| 2 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Programmable Temperature Valve Actuator Replacement - Rear Temperature |

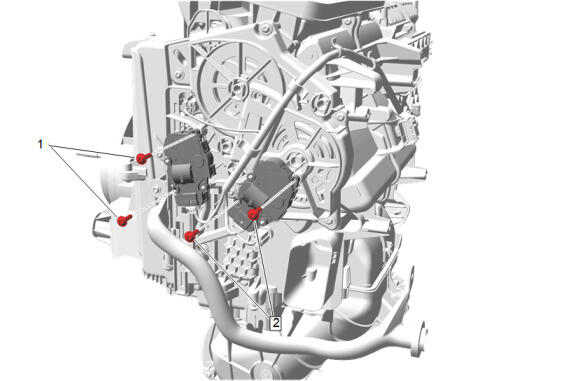

Programmable Temperature Valve Actuator - Mode and Temperature
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Programmable Temperature Valve Actuator Replacement - Left Side |
| 2 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Programmable Temperature Valve Actuator Replacement - Front Mode |

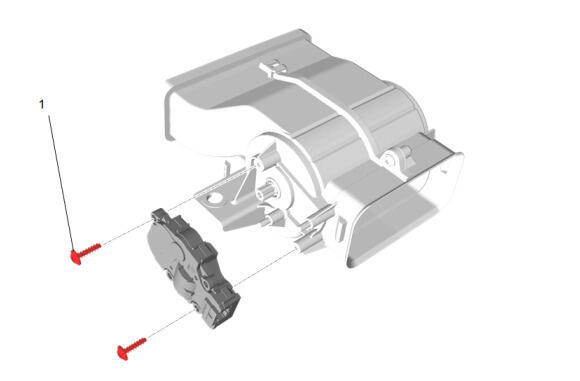

Programmable Temperature Valve Actuator - Rear Mode
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Heater and Air Conditioning Evaporator and Blower Upper and Blow Lower Case Bolt [2x] | - | - | 1.5 N.m (13 lb in) | Programmable Temperature Valve Actuator Replacement - Rear Mode |
