Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Turn the 6 front compartment sight shield retainers (1) a quarter turn counter clockwise to release the shield on both sides.
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Side Sight Shield- Left Side and Right Side (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a flat bladed plastic trim tool.

Front Fender Ornamentation Vent Bolt- Left Side and Right Side (2) - Remove [2x]
Release the retainers.
Front Fender Ornamentation Vent- Left Side and Right Side (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Using the appropriate trim tool, remove the windshield wiper arm finish caps (1) from the windshield wiper arms (3).
Windshield Wiper Arm Nut (2) - Remove [3x]
Using the appropriate tool, remove the windshield wiper arms (3).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

Air Inlet Grille Panel Retainer (1) - Remove [4x]
Windshield Washer Nozzle Hose - Disconnect
Air Inlet Grille Panel (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

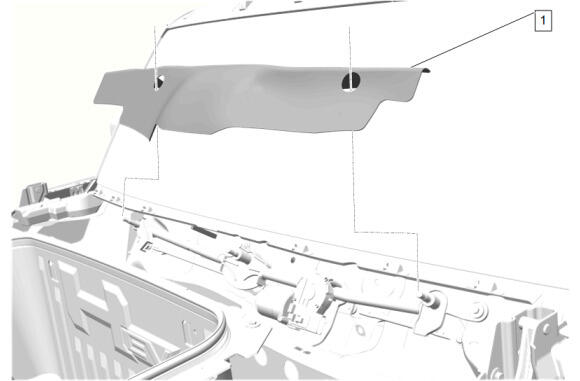

Windshield Wiper System Module Shield (1) - Remove
