Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

Disable the SIR system. SIR Disabling and Enabling

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console - Remove - Front Floor Console Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct Retainer (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Floor Rear Air Distributor Bracket Nut (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector. (1)
Wiring Harness Retainer (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Maneuver the front floor console rear air duct (1) from the auxiliary blower motor (3).
Remove the front floor console rear air duct (1) from the floor rear air distributor (2) and remove the duct.
Courtesy of GENERAL MOTORS COMPANY

Maneuver the floor rear air distributor (1) from the floor rear air outlet duct (2) and remove.
Courtesy of GENERAL MOTORS COMPANY

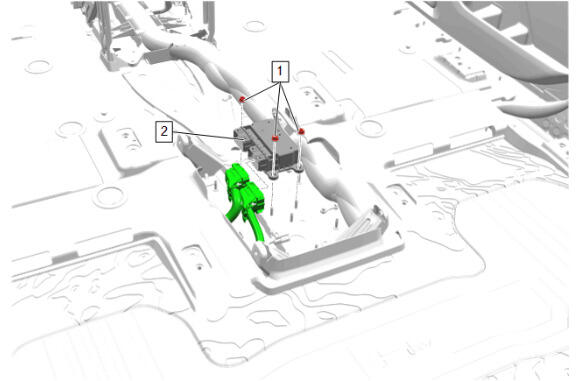

Airbag Sensing and Diagnostic Module Nut (1) - Remove [3x]
Restraints Control Module (2) - Remove
Disconnect the electrical connectors.
