Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

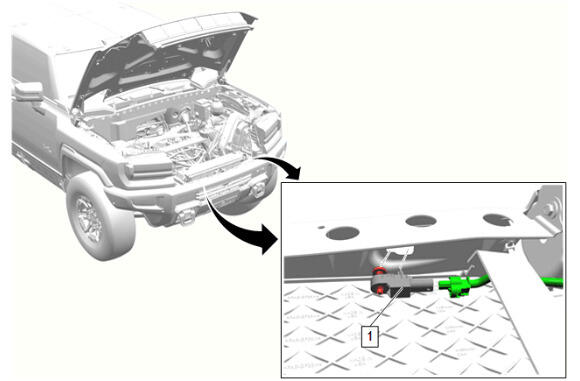

Connect the electrical connector.
- Slide the integral bolt into the narrow portion of the keyhole slot until the integral tab is fully seated into wide portion of the keyhole slot before securing.
- Airbag Front End Discriminating Sensor (1) - Install and tighten - Fastener Specifications

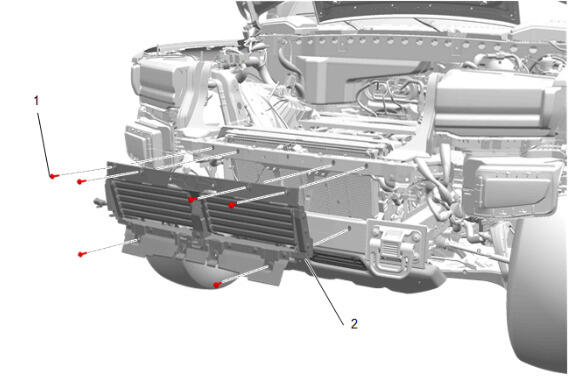

Front Bumper Shutter (2) - Install
- Connect the electrical connector.
- Front Bumper Shutter Bolt (1) - Install and tighten [6x] - Fastener Specifications
- NOTE:
Left side shown, right side similar.

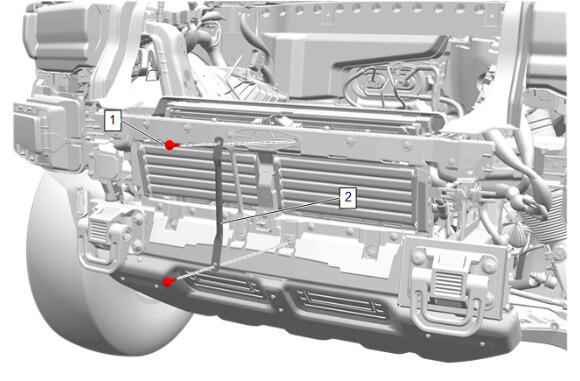

Hood Front Bumper Bracket Support- Left Side and Right Side (2) - Install [2x]
- Front Bumper Shutter Bolt- Left Side and Right Side (1) - Install and tighten [4x] - Fastener Specifications
With the aid of an assistant, install the fascia. (1) Front Bumper Fascia Removal and Installation
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
