Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Hummer EV. However, it is still accessible from the selected car via links, so may be relevant.

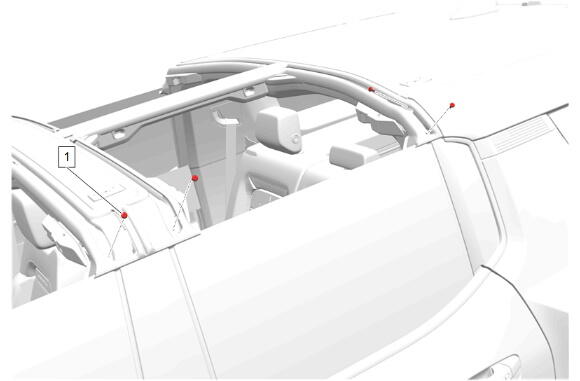

Removable Top
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Lift Off Panel/Window Rear Weatherstrip Retainer Bolt [16x] | - | - | 2.5 N.m (22 lb in) | Front Side Door Front Weatherstrip Retainer Replacement |
| 2 | Roof Lift Off Panel/Window Front Striker Bracket Bolt [6x] | - | - | 9 N.m (80 lb in) | Roof Lift Off Panel/Window Front Striker Bracket Replacement |
| 3 | Rear Roof Lift Off Panel/Window Rear Striker Bolt [6x] | - | - | 9 N.m (80 lb in) | Rear Roof Lift Off Panel/Window Rear Striker Replacement |
| 4 | Center Roof Lift Off Panel Nut [8x] | - | - | 22 N.m (16 lb ft) | Center Roof Lift Off Panel Insert Replacement |
| 5 | Roof Lift Off Panel/Window Front Striker Bolt [4x] | - | - | 9 N.m (80 lb in) | Roof Lift Off Panel/Window Front Striker Replacement |
| 6 | Roof Lift Off Panel/Window Latch Handle Bolt [8x] | - | - | 18 N.m (13 lb ft) | Roof Lift Off Panel/Window Latch Replacement |
| 7 | Roof Lift Off Panel/Window Rear Locator Bracket Bolt [8x] | - | - | 9 N.m (80 lb in) | Roof Lift Off Panel/Window Rear Striker Replacement - Front |
| 8 | Center Roof Lift Off Panel Insert Bolt [8x] | - | - | 9 N.m (80 lb in) | Center Roof Lift Off Panel Insert Housing Replacement |
Roof Lift Off Panel
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Removable Top Locating Pin [8x] | - | - | 9 N.m (80 lb in) | Removable Top Locating Pin Replacement |
| 2 | Removable Top Locating Pin [8x] | - | - | 18 N.m (13 lb ft) | Roof Lift Off Panel/Window Rear Locating Pin Replacement |
| 3 | Center Roof Lift Off Panel Insert Bolt [8x] | - | - | 2.5 N.m (22 lb in) | Center Roof Lift Off Panel Replacement |
Roof Lift Off Panel/Window weatherstrips
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Roof Lift Off Panel/Window Rear Weatherstrip Retainer Bolt [4x] | - | - | 2.5 N.m (22 lb in) | Folding Top Rear Weatherstrip Replacement |
