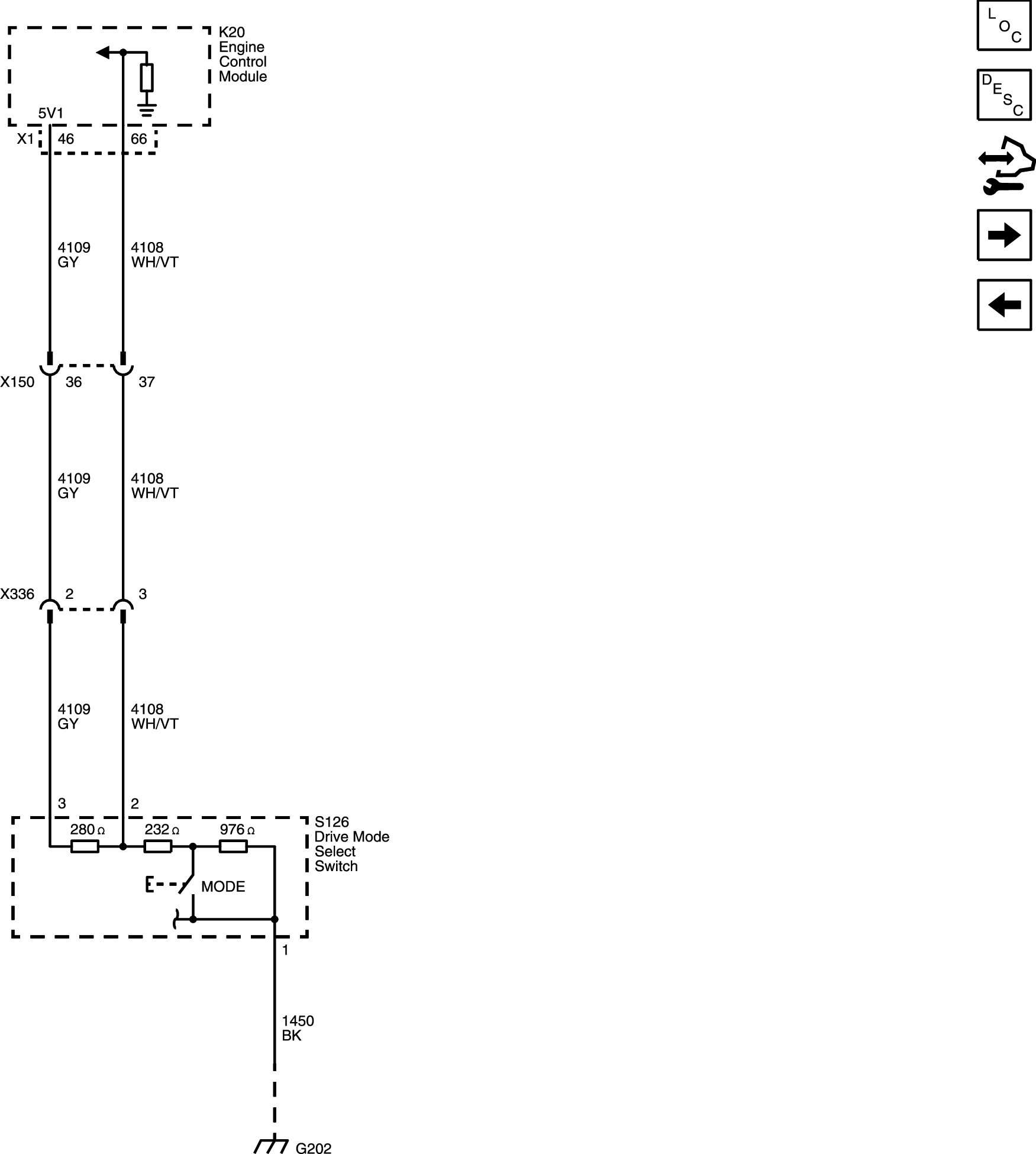

Controls - Mode Switch

WARNING: This page is about a different car, the 2020 Cadillac CT6. However, it is still accessible from the selected car via links, so may be relevant.
GM5363262Courtesy of GENERAL MOTORS COMPANY
