Front View Driver Information Camera Replacement
WARNING: This page is about a different car, the 2020 Cadillac CT6. However, it is still accessible from the selected car via links, so may be relevant.

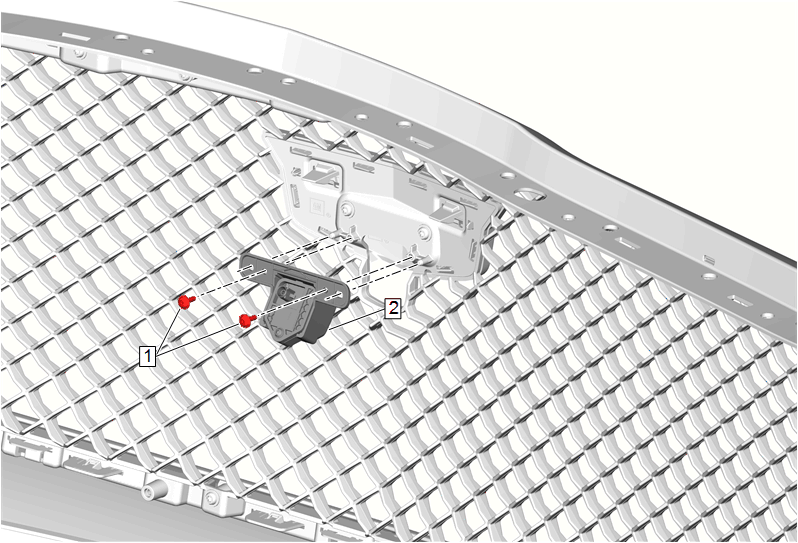

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Shutter Replacement |
|
| 1 | Front Bumper Fascia Bolt [2x]
CAUTION:
Tighten 2.5N.m (22 lb in) |
| 2 | Front View Driver Information Camera Procedure After installation, perform the video processing control module calibration. Video Processing Control Module Calibration |
