Front Suspension 4 Corner Leveling System Position Sensor Replacement

WARNING: This page is about a different car, the 2020 Cadillac CT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

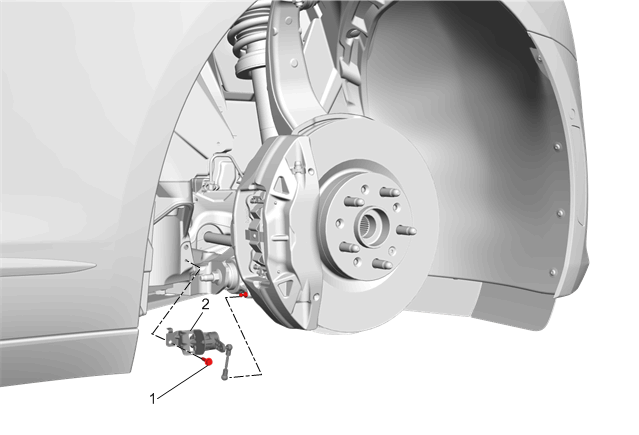

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Front Suspension 4 Corner Leveling System Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Suspension 4 Corner Leveling System Position Sensor Procedure Disconnect the electrical connector. Using an appropriate tool, separate the ball and socket. Lower the vehicle.

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle

Front Suspension 4 Corner Leveling System Position Sensor Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Front Suspension 4 Corner Leveling System Position Sensor

Procedure

Disconnect the electrical connector.
Using an appropriate tool, separate the ball and socket.
Lower the vehicle.
