Front Frame Heat Shield Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 GMC Yukon XL, 2020 GMC Yukon, 2020 Chevrolet Tahoe, 2020 Chevrolet Suburban, and 2020 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

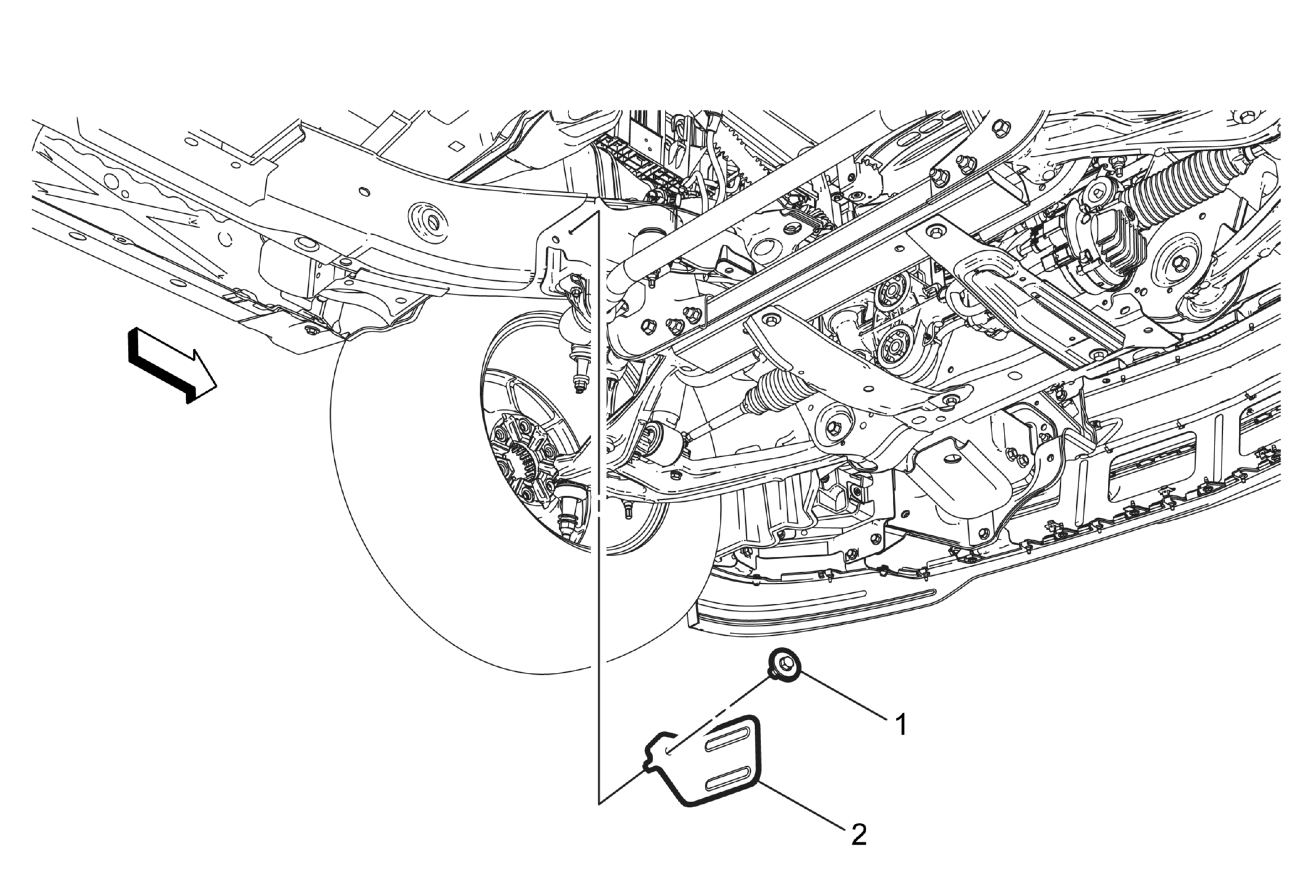

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Front Frame Heat Shield Fastener
CAUTION:
Refer to Fastener Caution . Tighten: 12 N.m (106 lb in) |
| 2 | Front Frame Heat Shield - Front Axle Bushing |
