K9 Body Control Module X7
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 GMC Yukon XL, 2020 GMC Yukon, 2020 Chevrolet Tahoe, 2020 Chevrolet Suburban, and 2020 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

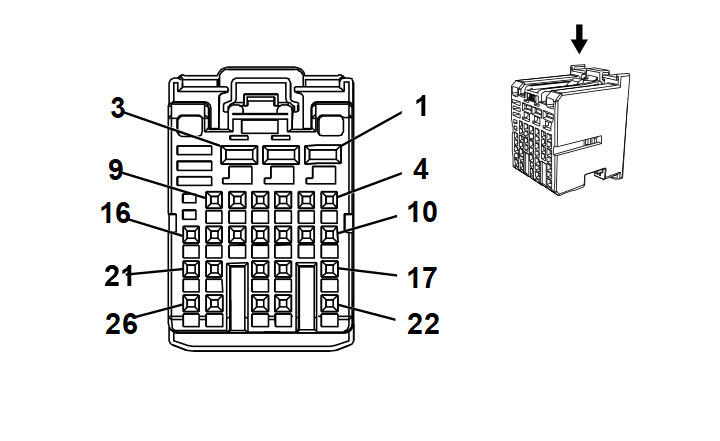

Connector Part Information
- Harness Type: Body
- OEM Connector: 13962301
- Service Connector: 13587578
- Description: 26-Way F 0.64, 2.8 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13587507 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY |
157 |
Dome/Reading Lamp Control |
II |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
WH/BN |
6815 |
Inadvertent Load Control |
II |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.5 |
YE/WH |
816 |
Brake Transmission Shift Interlock Solenoid Actuator Control |
I |
- |
| 7 |
0.5 |
YE/GY |
57 |
Left Cornering Lamp Control |
I |
- |
| 8 |
0.5 |
GY/GN |
5996 |
Driver Outside Rearview Mirror Courtesy Lamp Control |
I |
- |
| 9 |
0.5 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
| 10 |
0.35 |
BU/BN |
7547 |
Dead Lock Relay Control |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.35 |
BN/WH |
3269 |
Child Security Lock Actuator Status Signal Left Rear |
I |
- |
| 13 |
0.35 |
GN/WH |
1932 |
Shift Select Switch Park Signal |
I |
- |
| 14 |
0.35 |
YE/BU |
5797 |
Rear Closure Handle Switch Open Signal |
I |
- |
| 15 |
0.35 |
YE/BN |
3265 |
Child Security Lock Switch Signal |
I |
- |
| 16 |
0.5 |
WH/BU |
3691 |
Trailer Brake Apply Signal |
I |
- |
| 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
GY/BK |
3268 |
Child Security Lock Actuator Status Signal Right Rear |
I |
- |
| 19 |
0.35 |
GY |
156 |
Courtesy Lamp Switch Signal |
I |
- |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
| 21 |
0.35 |
YE/VT |
244 |
Passenger Door Lock Switch Lock Control |
I |
- |
| 22 |
0.35 |
WH/YE |
7557 |
Interior Door Handle Accent Lighting Control |
I |
- |
| 23 |
0.5 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 24 |
0.35 |
BN/VT |
245 |
Passenger Door Lock Switch Unlock Control |
I |
- |
| 25 |
0.35 |
GN |
4512 |
Mobile Device Wireless Charger Charge Indicator Control |
I |
- |
| 26 |
- |
- |
- |
Not Occupied |
- |
- |
