K9 Body Control Module X4
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2020 GMC Yukon XL, 2020 GMC Yukon, 2020 Chevrolet Tahoe, 2020 Chevrolet Suburban, and 2020 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

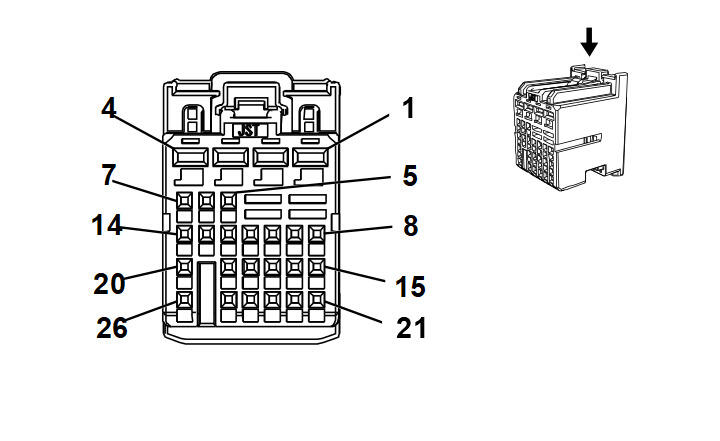

Connector Part Information
- Harness Type: Body
- OEM Connector: 13962485
- Service Connector: 13587579
- Description: 26-Way F 0.64, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13582297 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13582298 |
J-35616-64B (LT BU) |
J-38125-215A |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13587507 |
J-35616-35 (VT) |
J-38125-12A |
SNAC-A061T-M2.8 |
Delphi 20 |
E |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
YE |
712 |
Left Headlamp Low Beam Control |
III |
- |
| 2 |
0.75 |
YE |
312 |
Right Headlamp Low Beam Control |
III |
- |
| 3 |
0.75 |
GN/VT |
1315 |
Right Front Turn Signal Lamp Control |
III |
- |
| 4 |
0.5 |
BN/GN |
19 |
Right Rear Stop/Turn Signal Lamp Control |
III |
- |
| 5 |
0.75 |
WH/YE |
7541 |
Right Rear Stop Lamp Control |
II |
- |
| 6 |
0.75 |
GY/YE |
7542 |
Left Rear Stop Lamp Control |
II |
- |
| 7 |
0.75 |
GY/BU |
7538 |
Left Front DRL Control |
II |
- |
| 8 |
0.35 |
GY/YE |
6188 |
Liftgate Window/Rear Compartment Lid Motor Unlatch Control |
I |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
VT/WH |
5065 |
Stop Lamp Relay Coil Control |
I |
- |
| 12 |
0.35 |
GY/VT |
755 |
Retained Accessory Power Relay Coil Control |
I |
- |
| 13 |
0.5 |
GN/YE |
6846 |
Rear License Plate Lamp Control |
I |
- |
| 14 |
0.35 |
BN/GY |
2268 |
Windshield Washer Relay Control |
I |
- |
| 15 |
0.35 |
GN/VT |
5199 |
Run/Crank Relay Coil Control |
I |
- |
| 16 |
0.35 |
GY |
91 |
Windshield Wiper Motor Relay Coil Control |
I |
- |
| 17 |
0.5 |
BN/GN |
196 |
Windshield Wiper Motor Park Switch Signal |
I |
- |
| 18 |
0.35 |
WH/YE |
5075 |
Current Sensor Signal |
I |
- |
| 19 |
0.35 |
BU/YE |
6844 |
ABS/Traction Control Hill Descent Control Switch Signal |
I |
- |
| 20 |
0.75 |
RD/YE |
2340 |
Secondary Fused Battery Positive Voltage 23 |
II |
- |
| 21 |
0.35 |
BU/VT |
5076 |
Current Sensor Voltage Reference |
I |
- |
| 22 |
0.35 |
VT/YE |
5985 |
Accessory Wake-Up Serial Data |
I |
- |
| 23 |
0.5 |
WH/BU |
5986 |
Serial Data Communication Enable |
I |
- |
| 24 |
0.5 |
BN/GN |
109 |
Hood Ajar Switch Signal |
I |
- |
| 25 |
0.35 |
YE/BU |
4086 |
Ignition Mode Switch Challenge Active Signal |
I |
- |
| 26 |
0.75 |
BK/WH |
451 |
Ground 4 |
II |
- |
