Intake Air Splash Shield Replacement

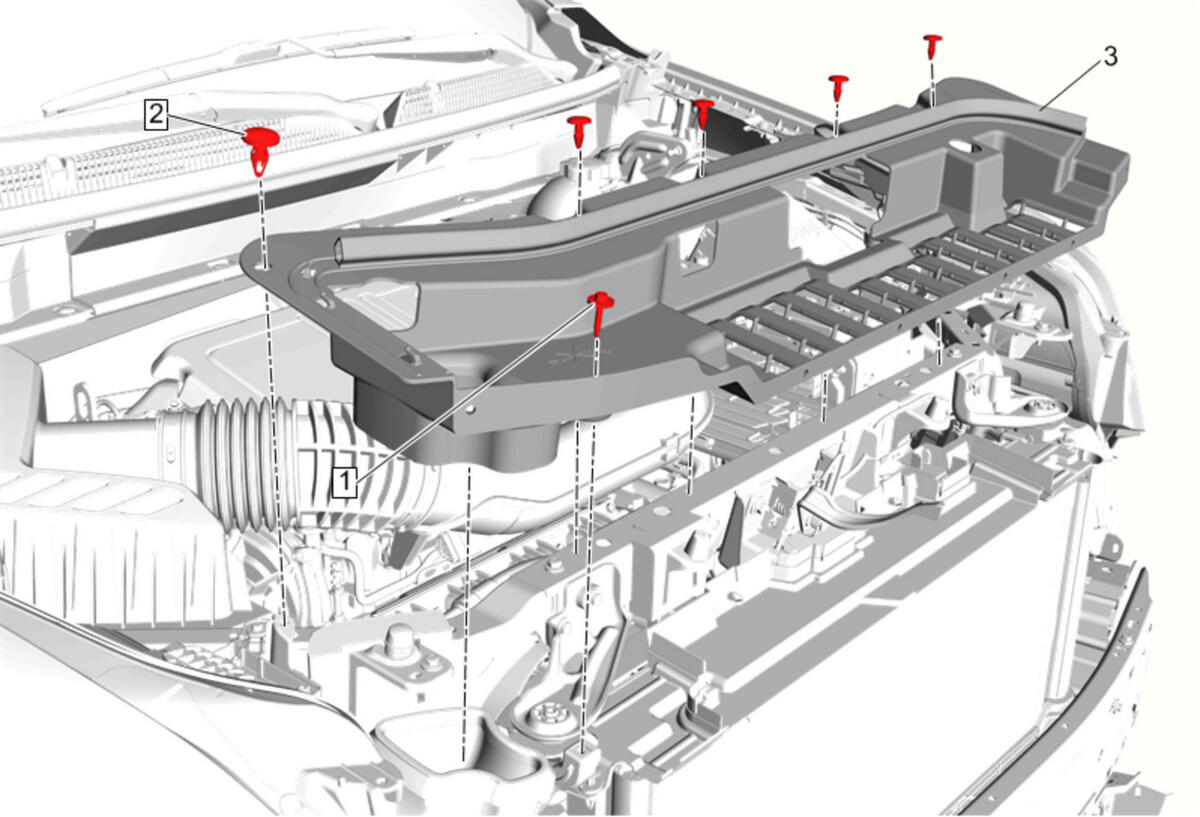

GM5160651Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Center Support Replacement
  2. Radiator Air Front Upper Baffle Replacement (LSY)
1 Intake Air Duct Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Intake Air Splash Shield Retainer [5x]
3 Intake Air Splash Shield
