Intake Air Duct Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Assembly Replacement |
|

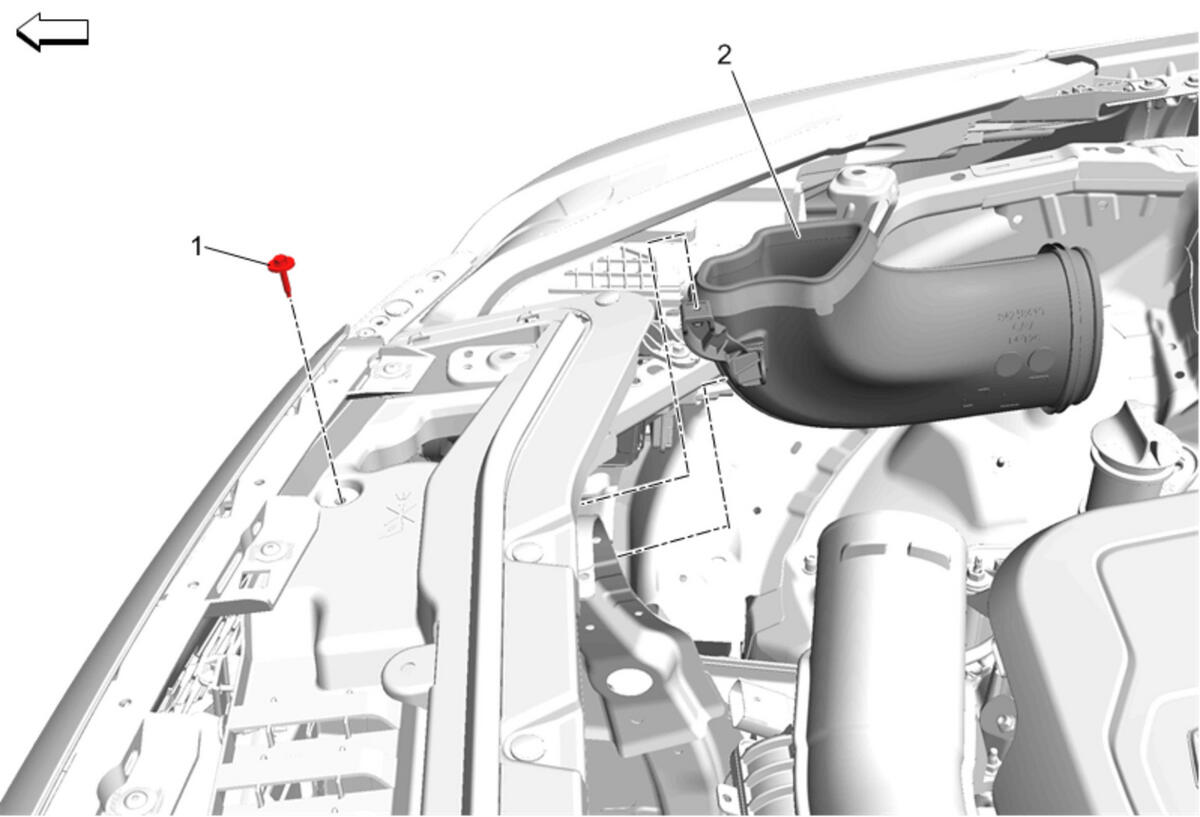

| 1 | Intake Air Duct Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Intake Air Duct Procedure Pull intake air duct froward to release from air cleaner assembly. |
