Camshaft Intake Lobe Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

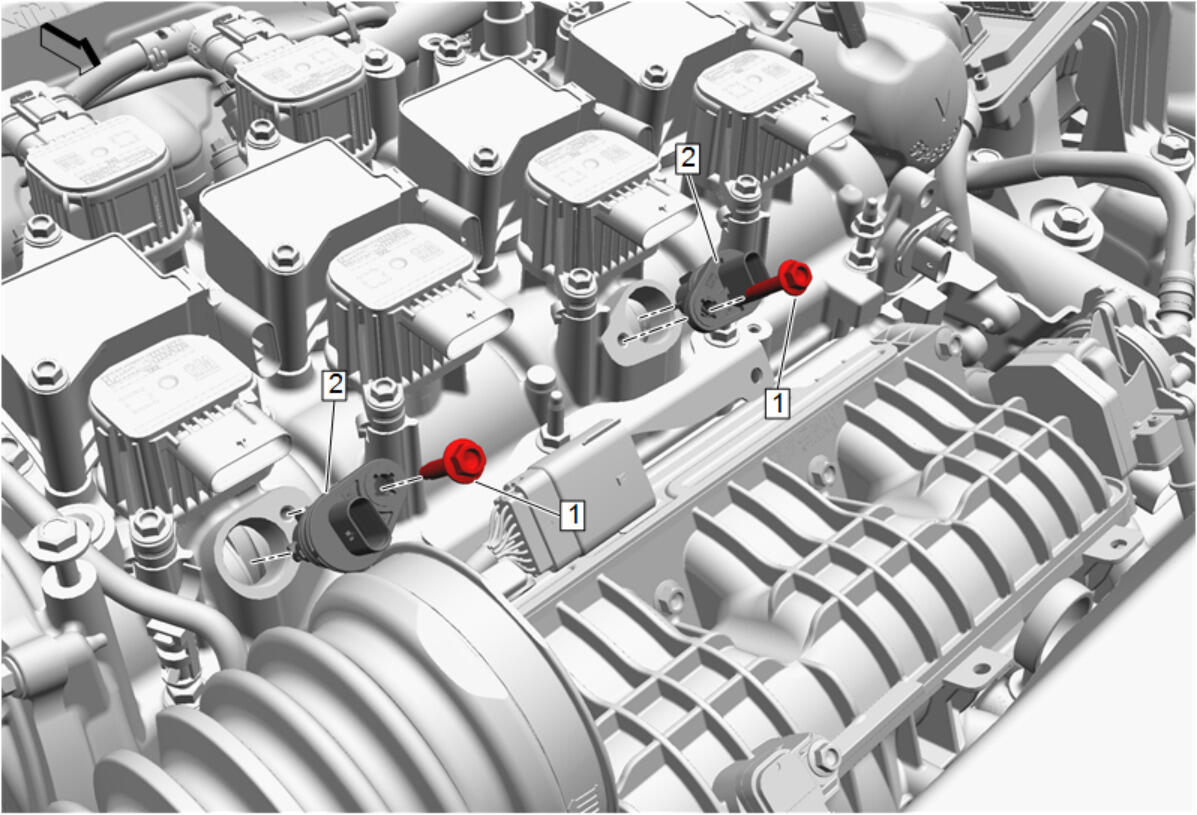

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Resonator Replacement Air Cleaner Outlet Intermediate Duct Replacement
1	Camshaft Intake Lobe Sensor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Camshaft Intake Lobe Sensor [2x] Procedure Disconnect the electrical connector. Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

Callout

Component Name

Preliminary Procedures

Camshaft Intake Lobe Sensor Bolt [2x]

CAUTION:

Tighten
8.5 N.m (75 lb in)

Camshaft Intake Lobe Sensor [2x]

Procedure

Disconnect the electrical connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
