Body Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

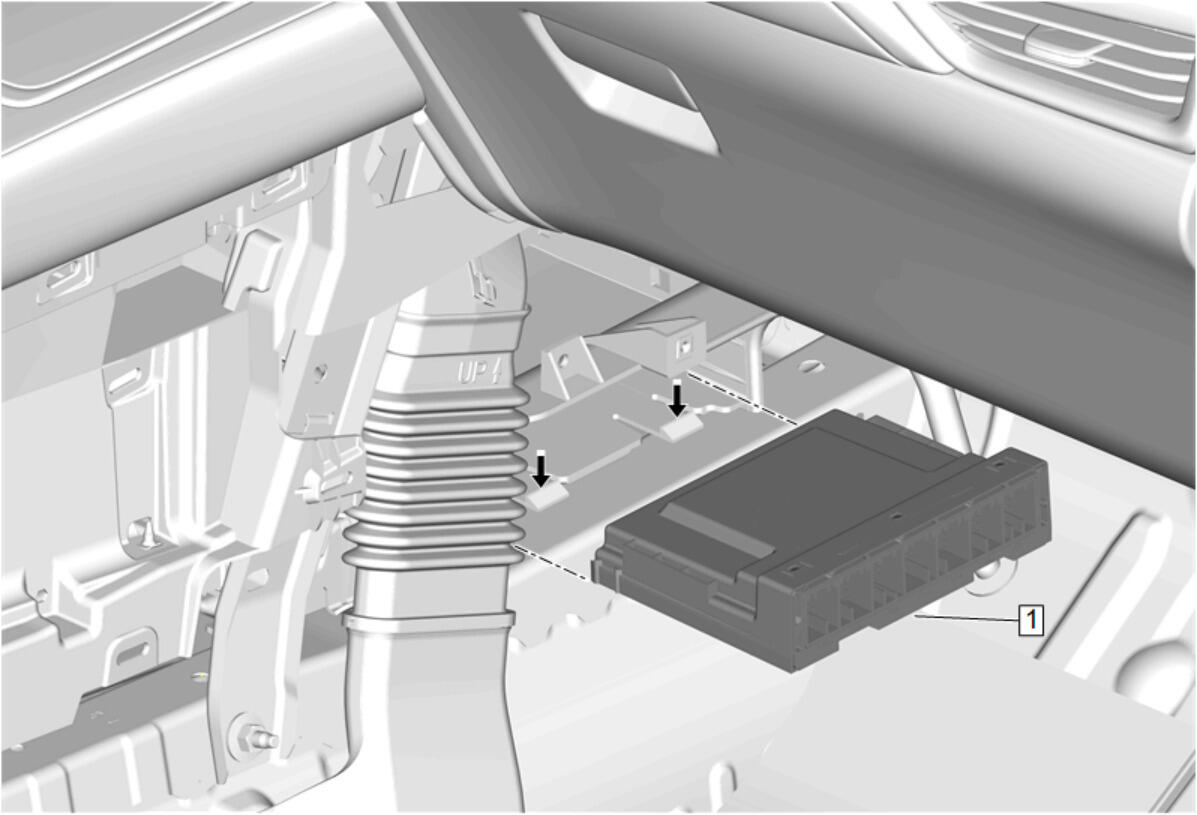

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Right Side
1	Body Control Module Procedure Reposition the front floor panel carpet as necessary. Disconnect the electrical connectors. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Body Control Module

Procedure

Reposition the front floor panel carpet as necessary.
Disconnect the electrical connectors.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
