Installation Procedure

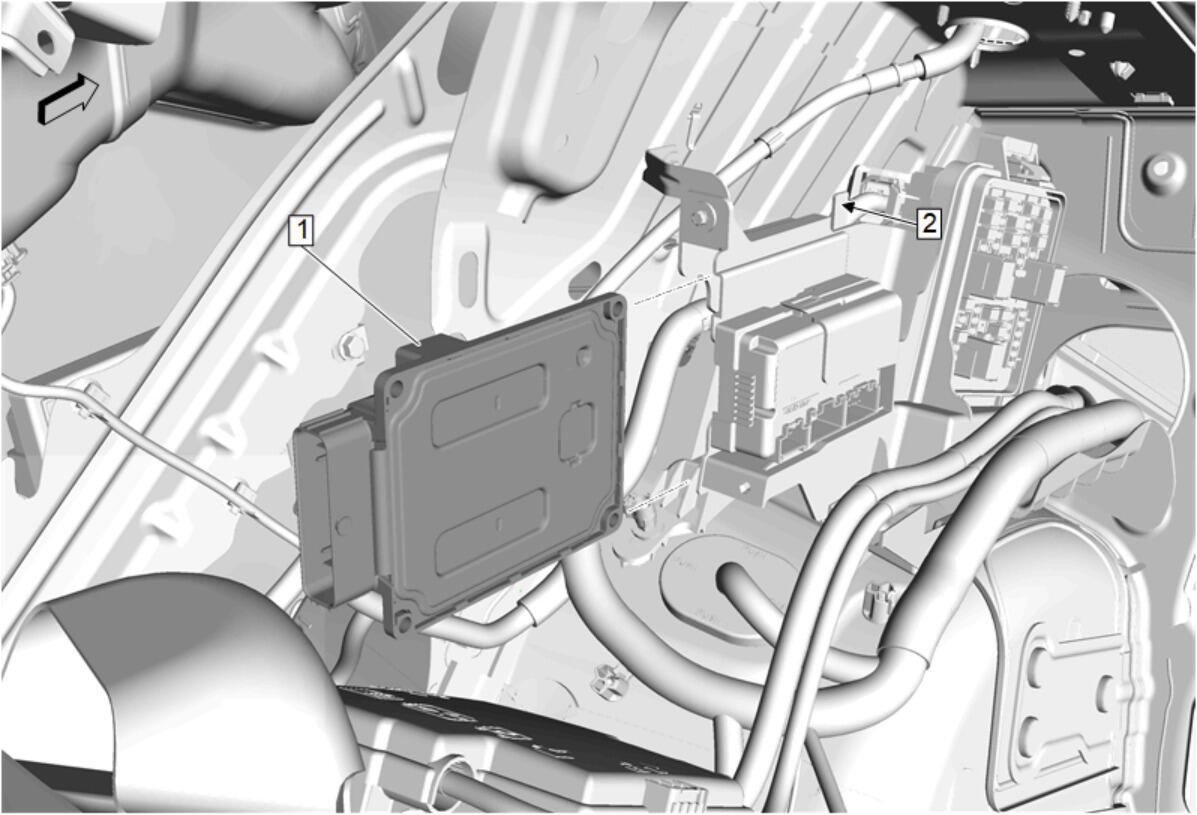

  1. GM5324313Courtesy of GENERAL MOTORS COMPANY

    Slide the electronic suspension control module (1) into the rear body fuse block bracket until the retaining tab (2) is engaged.

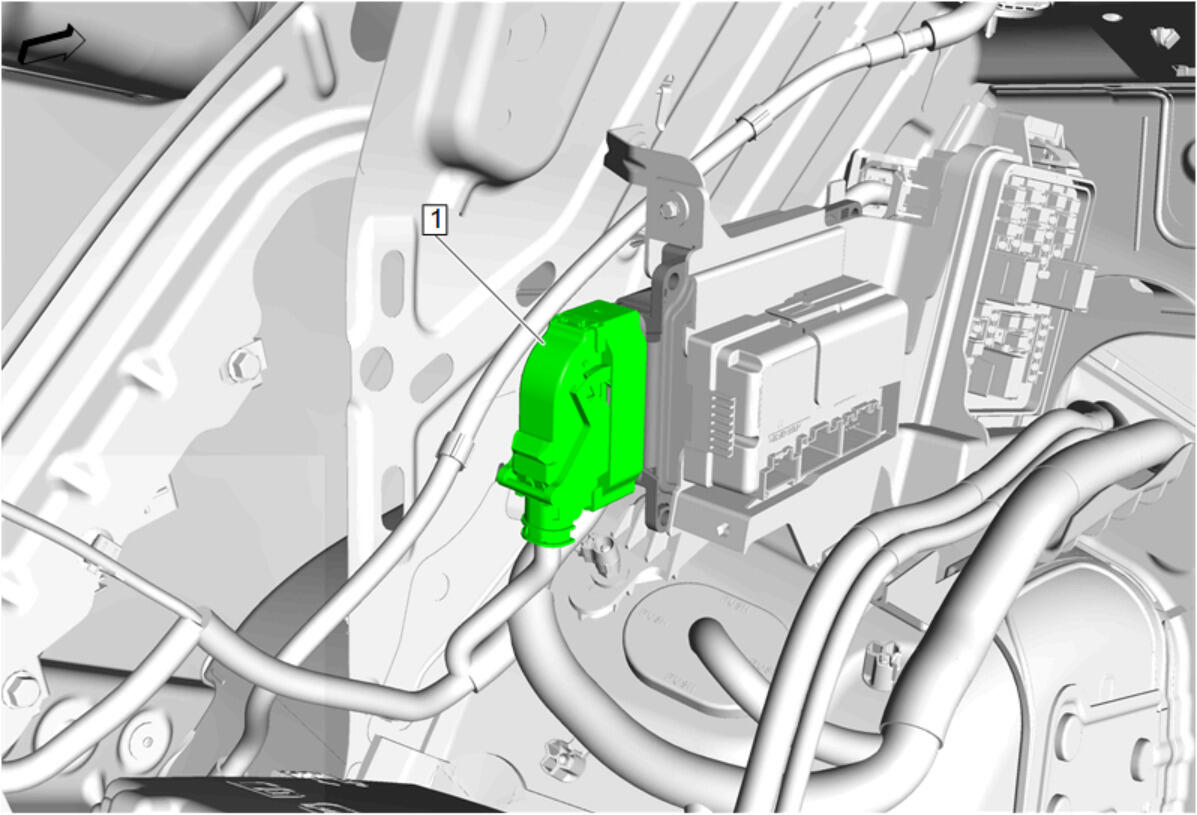

  2. GM5324309Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Electronic Suspension Control Module - Connect

  3. Rear Compartment Side Trim- Left Side - Install - Rear Compartment Side Trim Replacement - Left Side
  4. Perform the necessary programming and setup procedure:Control Module References
  5. Clear All Vehicle DTCs
