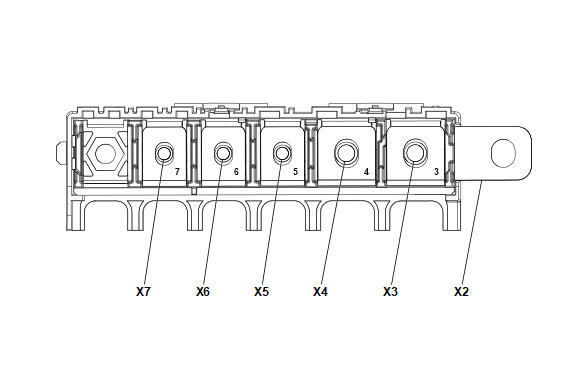

X50B Battery Distribution Engine Compartment Fuse Block Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
3	-	F3UB	250A	G13 Generator
4	-	F4UB	100A	K43 Power Steering Control Module
5	-	F5UB	80A	G59 Engine Coolant Pump (LSY)
6	-	F6UB	100A	G10 Engine Cooling Fan Motor
7	-	F7UB	60A	A104 Brake Master Cylinder K160 Brake System Control Module
