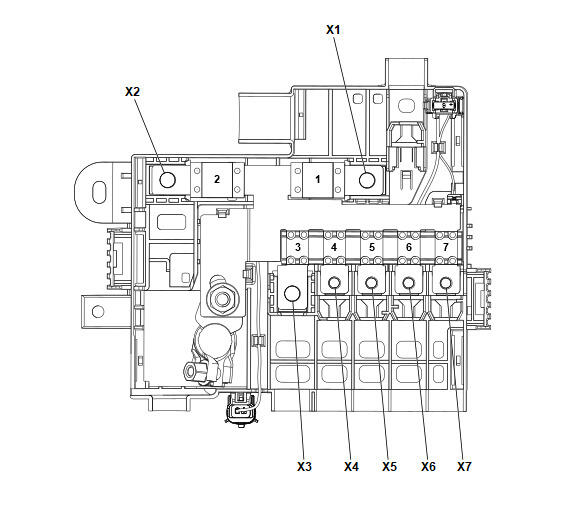

X50D Battery Distribution Fuse Block Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
1	-	F1BA	250A	X50B Battery Distribution Engine Compartment Fuse Block
2	-	F2BA	350A	M64 Starter
3	-	F3BA	100A	Not Used
4	-	F4BA	100A	X51A Instrument Panel Wiring Harness Junction Block
5	-	F5BA	100A	X51A Instrument Panel Wiring Harness Junction Block
6	-	F6BA	100A	X53A Body Wiring Harness Junction Block - Rear
7	-	F7BA	100A	X53A Body Wiring Harness Junction Block - Rear
8	-	F8BA	100A	Not Used
9	-	F9BA	5A	B110 Battery Monitor Module
