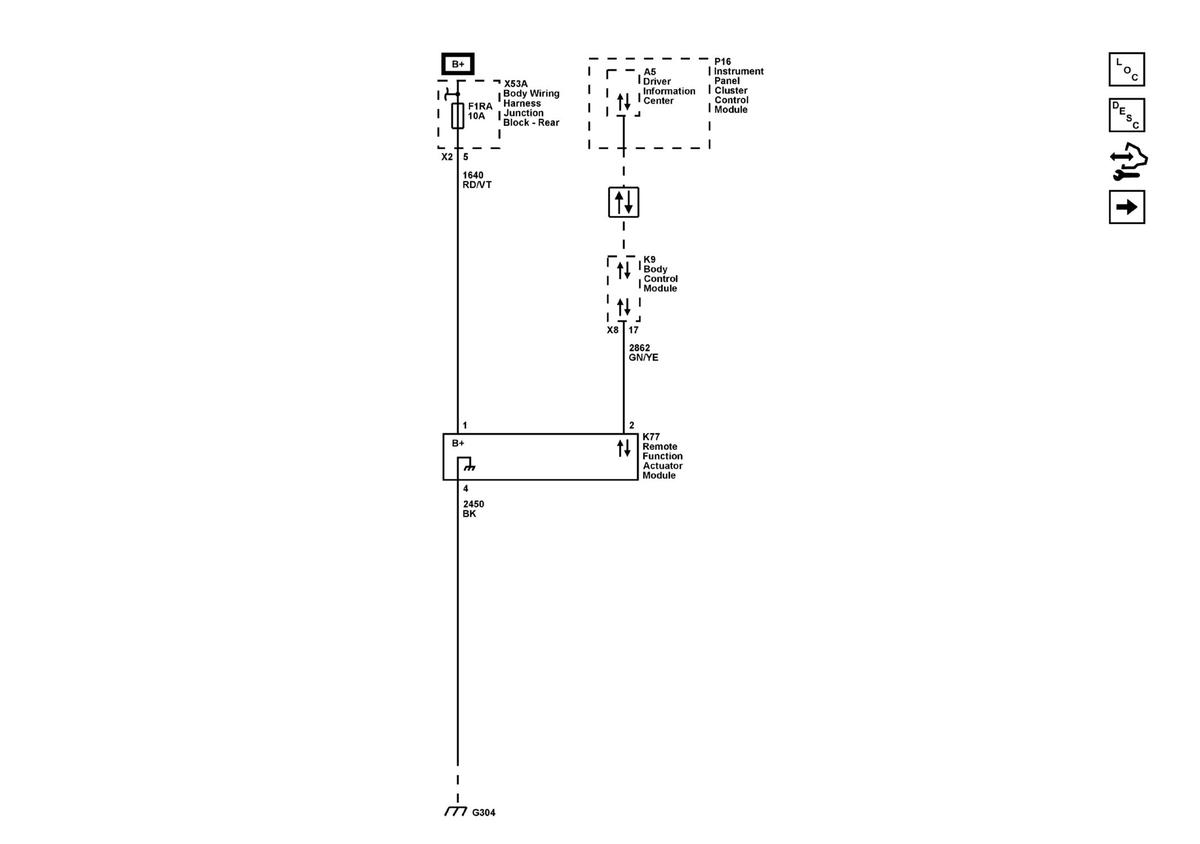

Home >> Cadillac >> 2020 >> CT5 V, RWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions System >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Active
