Fastener Specifications

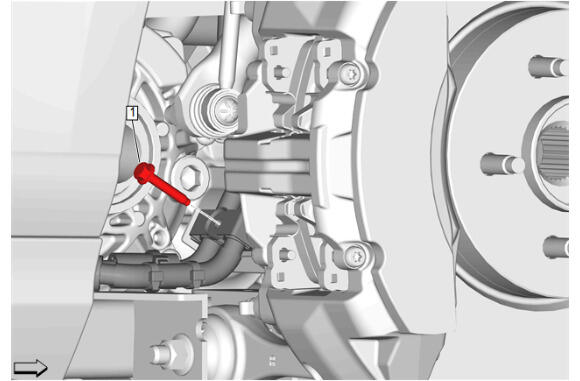

GM5492264Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fastener @ Right Wheelhouse

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clip Bolt - - 9 (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

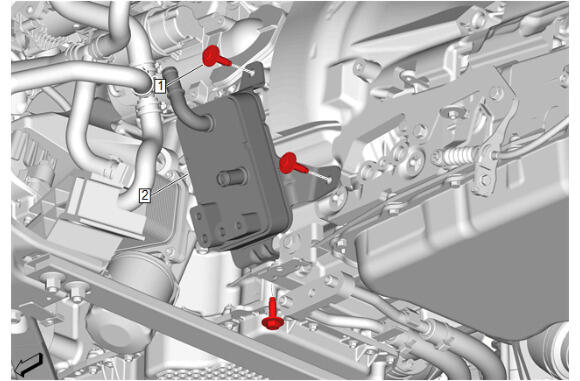

GM5485960Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fasteners @ Automatic Transmission Fluid Cooling Exchanger

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Bolt [ 3x ] - - 22 (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, without V03) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, RWD) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, AWD)

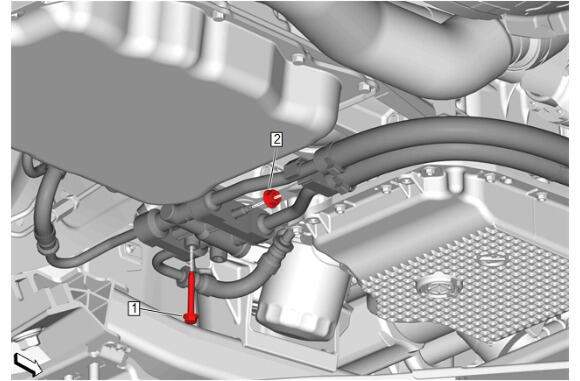

GM5493981Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fasteners @ Transmission Cooler Bypass Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Nut - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 (80 lb in) Transmission Cooler Bypass Valve Replacement (LSY, RWD, with V03) Transmission Cooler Bypass Valve Replacement (L3B, RWD) Transmission Cooler Bypass Valve Replacement (L3B, AWD)

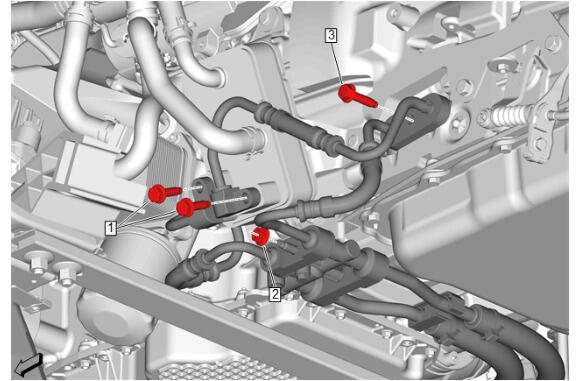

GM5493980Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fasteners @ Transmission Side, Transmission Cooler Bypass Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Connector Bolt [ 2x ] - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Nut - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Pipe Bolt - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

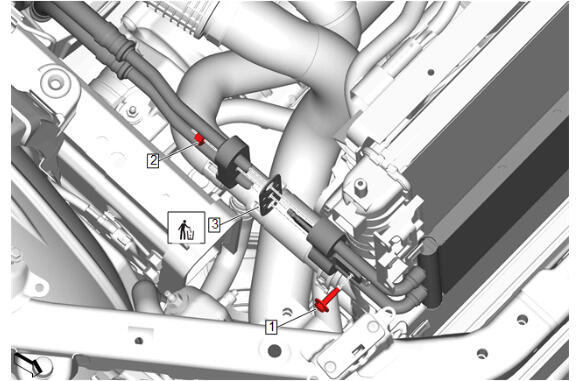

GM5427411Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Fasteners, Seal @ Transmission Fluid Auxiliary Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 6 (53 lb in) Transmission Fluid Auxiliary Cooler Replacement (LSY, RWD, with V03)
2 Transmission Fluid Cooler Pipe Nut - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

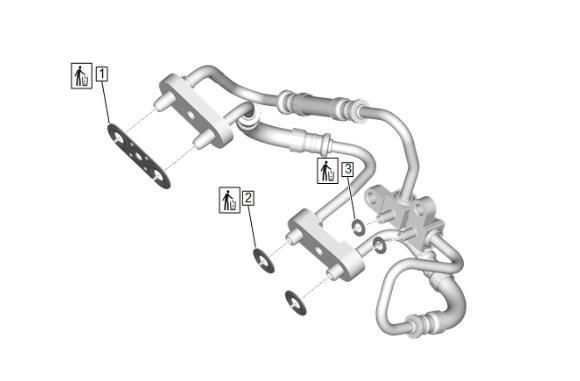

GM5485738Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Seals

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Thermal Bypass Valve Gasket [ 2x ] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Pipe Seal [ 2x ] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
GM5494015Courtesy of GENERAL MOTORS COMPANY
L3B, AWD, Seals

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Thermal Bypass Valve Gasket [ 2x ] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

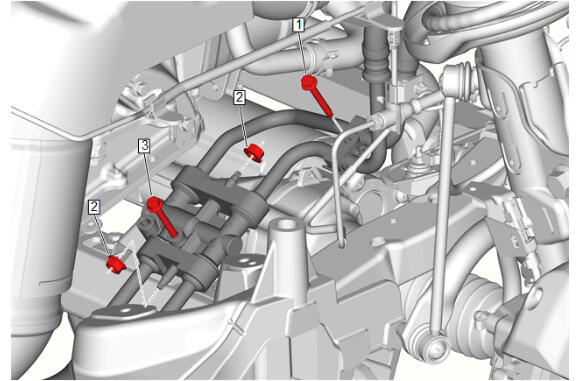

GM5484134Courtesy of GENERAL MOTORS COMPANY
L3B, RWD, Fasteners @ Transmission Cooler Bypass Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clip Bolt - - 9 (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Nut [ 2x ] - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 (80 lb in) Transmission Cooler Bypass Valve Replacement (LSY, RWD, with V03) Transmission Cooler Bypass Valve Replacement (L3B, RWD) Transmission Cooler Bypass Valve Replacement (L3B, AWD)
GM5427411Courtesy of GENERAL MOTORS COMPANY
L3B, RWD, Fasteners, Seal @ Transmission Fluid Auxiliary Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 6 (53 lb in) Transmission Fluid Auxiliary Cooler Replacement (LSY, RWD, with V03)
2 Transmission Fluid Cooler Pipe Nut - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

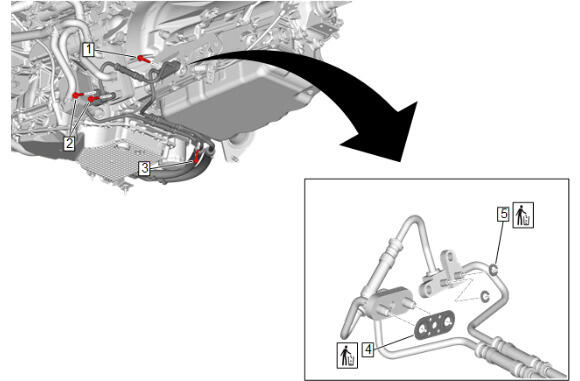

GM5484129Courtesy of GENERAL MOTORS COMPANY
L3B, RWD, Fasteners, Seal @ Transmission Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bolt - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Connector Bolt [ 2x ] - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Pipe Clip Bolt - - 9 (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
4 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
5 Transmission Fluid Cooler Pipe Seal [ 2x ] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

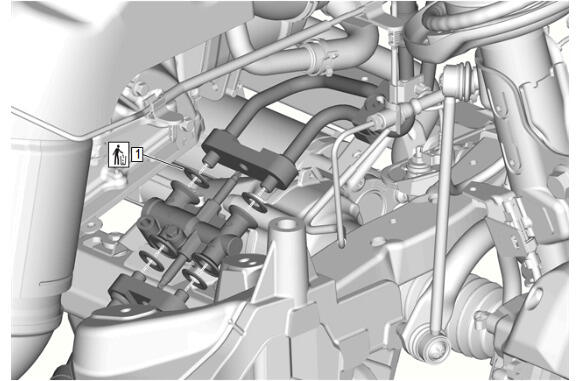

GM5484131Courtesy of GENERAL MOTORS COMPANY
L3B, RWD, Seals

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Seal [ 4x ] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

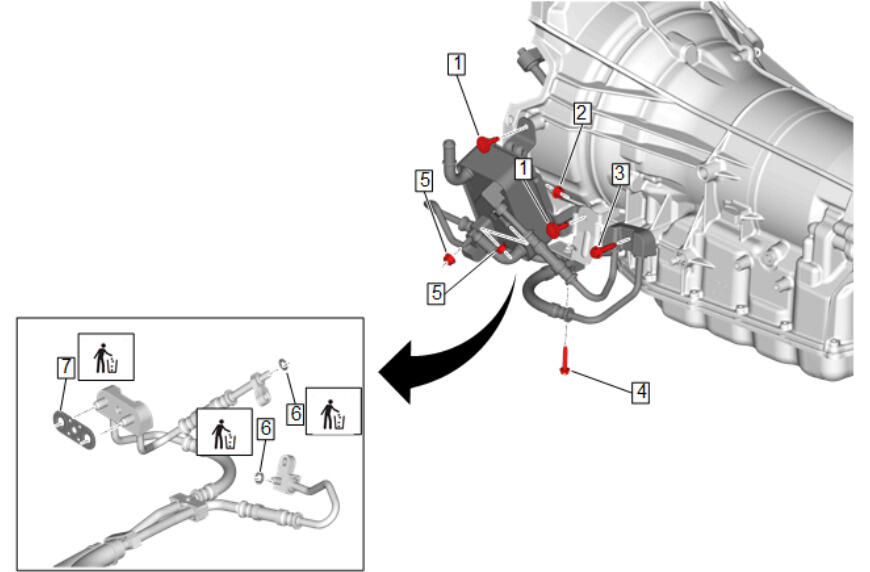

GM5427408Courtesy of GENERAL MOTORS COMPANY
LSY, RWD, with V03, Fasteners @ Automatic Transmission Fluid Cooling Exchanger, Transmission Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Cooling Exchanger Bolt [ 2x ] - - 22 (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, without V03) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, RWD) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, AWD)
2 Transmission Fluid Auxiliary Cooler Bracket Nut   - 22 (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, without V03) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, RWD) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, AWD)
3 Transmission Fluid Cooler Pipe Bolt   - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
4 Transmission Fluid Cooler Pipe Clip Bolt   - 9 (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
5 Transmission Fluid Cooler Pipe Nut [ 2x ]   - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
6 Transmission Fluid Cooler Pipe Seal [ 2x ] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
7 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
GM5427411Courtesy of GENERAL MOTORS COMPANY
LSY, RWD, with V03, Fasteners, Seal @ Transmission Fluid Auxiliary Cooler

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Bracket Bolt - - 6 (53 lb in) Transmission Fluid Auxiliary Cooler Replacement (LSY, RWD, with V03)
2 Transmission Fluid Cooler Pipe Nut - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)

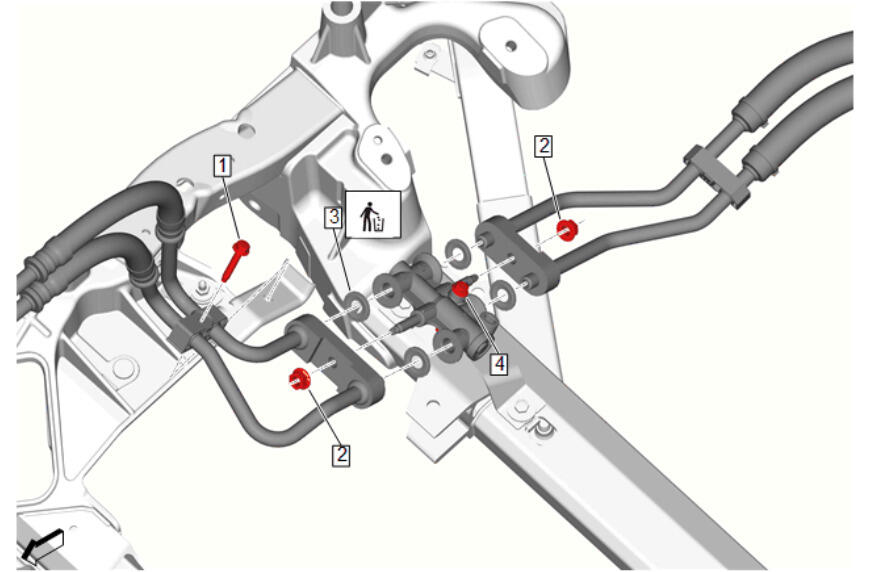

GM5427409Courtesy of GENERAL MOTORS COMPANY
LSY, RWD, with V03, Fasteners, Seals @ Transmission Cooler Bypass Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Cooler Pipe Clip Bolt - - 9 (80 lb in) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
2 Transmission Fluid Cooler Pipe Nut [ 2x ] - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
3 Transmission Fluid Cooler Thermal Bypass Valve Gasket [ 4x ] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
4 Transmission Fluid Cooler Thermal Bypass Valve Bolt - - 9 (80 lb in) Transmission Cooler Bypass Valve Replacement (LSY, RWD, with V03) Transmission Cooler Bypass Valve Replacement (L3B, RWD) Transmission Cooler Bypass Valve Replacement (L3B, AWD)

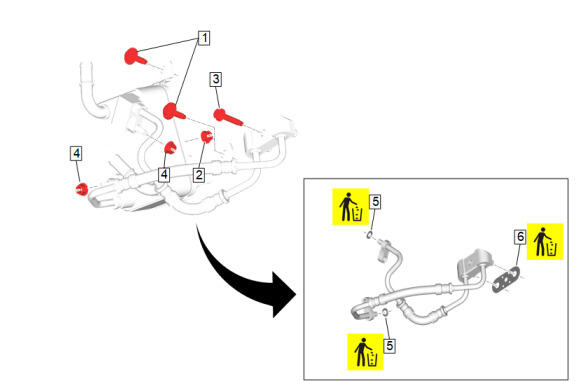

GM5415625Courtesy of GENERAL MOTORS COMPANY
LSY, RWD, without V03, Fasteners, Seals @ Automatic Transmission Fluid Cooling Exchanger, Transmission Side, Transmission Side

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Fluid Auxiliary Cooler Bolt [ 2x ] - - 22 (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, without V03) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, RWD) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, AWD)
2 Transmission Fluid Auxiliary Cooler Nut - - 22 (16 lb ft) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, without V03) Automatic Transmission Fluid Cooling Exchanger Replacement (LSY, RWD, with V03) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, RWD) Automatic Transmission Fluid Cooling Exchanger Replacement (L3B, AWD)
3 Transmission Fluid Cooler Pipe Bolt - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
4 Transmission Fluid Cooler Pipe Nut [ 2x ] - - 22 (16 lb ft) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
5 Transmission Fluid Cooler Pipe Seal [ 2x ] Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
6 Transmission Fluid Cooler Seal Yes - - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, without V03) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LSY, RWD, with V03, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, RWD, ATOC Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, Transmission Side) Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (L3B, AWD, ATOC Side)
