Fastener Specifications

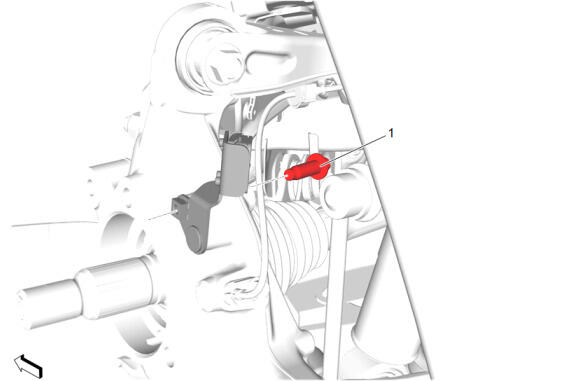

Electronic Suspension Rear Vertical Accelerometer Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Electronic Suspension Rear Vertical Accelerometer Bolt | - | - | 9 (7 lb ft) | Electronic Suspension Rear Vertical Accelerometer Replacement (F55) |

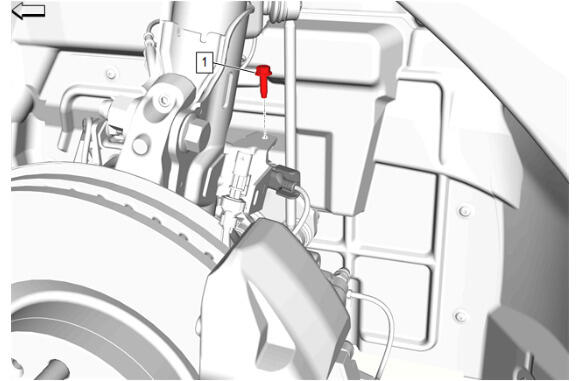

Electronic Suspension Wheel Front Vertical Accelerometer Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Electronic Suspension Front Vertical Accelerometer Bolt | - | - | 9 (7 lb ft) | Electronic Suspension Wheel Front Vertical Accelerometer Replacement (F55) |
