Installation Procedure

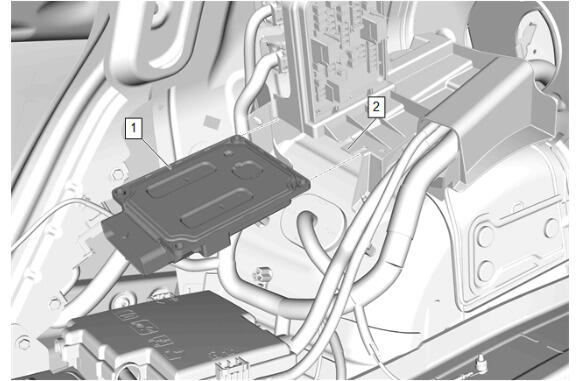

Slide the electronic suspension control module (1) into the rear body fuse block bracket until the retaining tab (2) is engaged.
- Reposition the wiring harness and connect the wiring harness retainers.

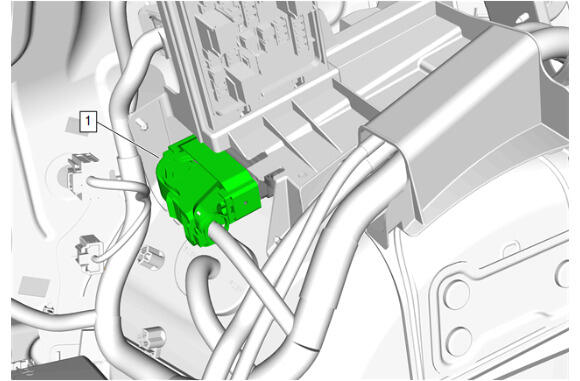

Electrical Connector (1) @ Electronic Suspension Control Module - Connect

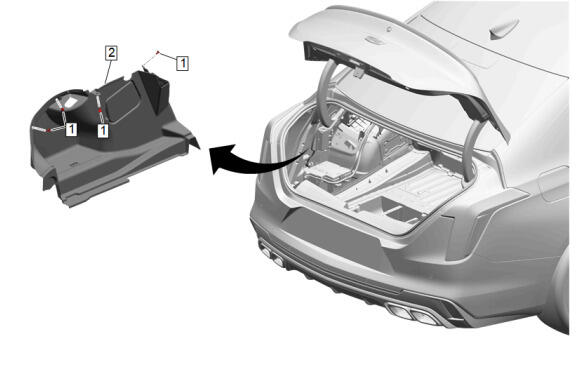

Rear Compartment Side Trim-Left Side (2) - Install
- Rear Compartment Side Trim Insulator Retainer (1) - Install [4x]

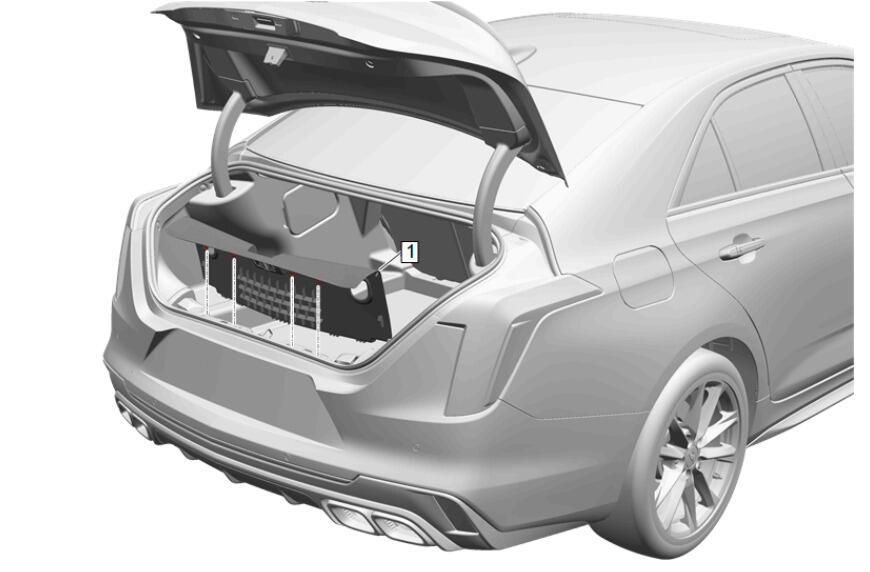

Rear End Trim Finish Panel (1) - Install

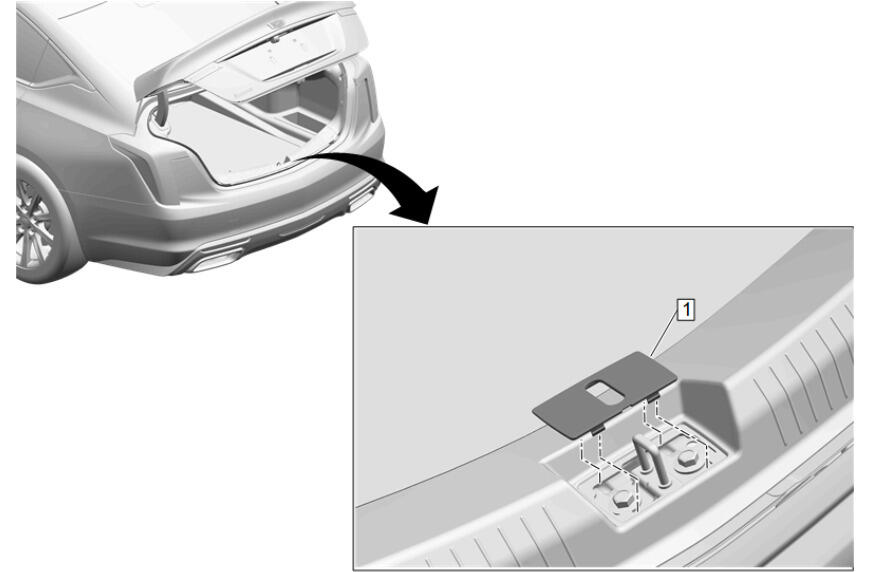

Rear End Trim Finish Panel Opening Cover (1) - Install

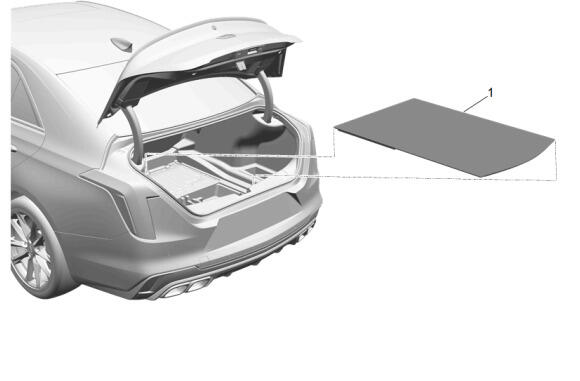

Rear Compartment Floor Panel Trim (1) - Install

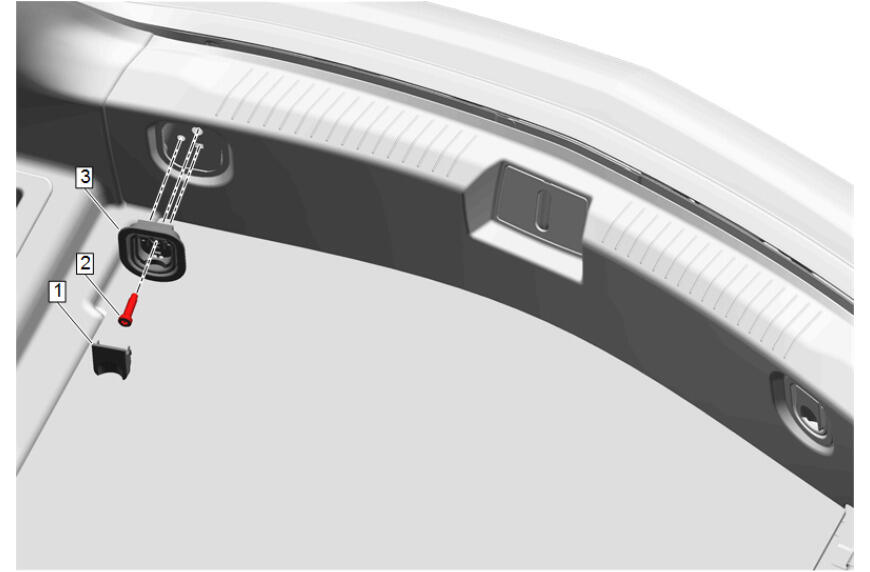

Cargo Tie Down Loop (3) - Install [2x]
- Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Cargo Tie Down Loop Bolt Cap (1) - Install [2x]
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
