Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

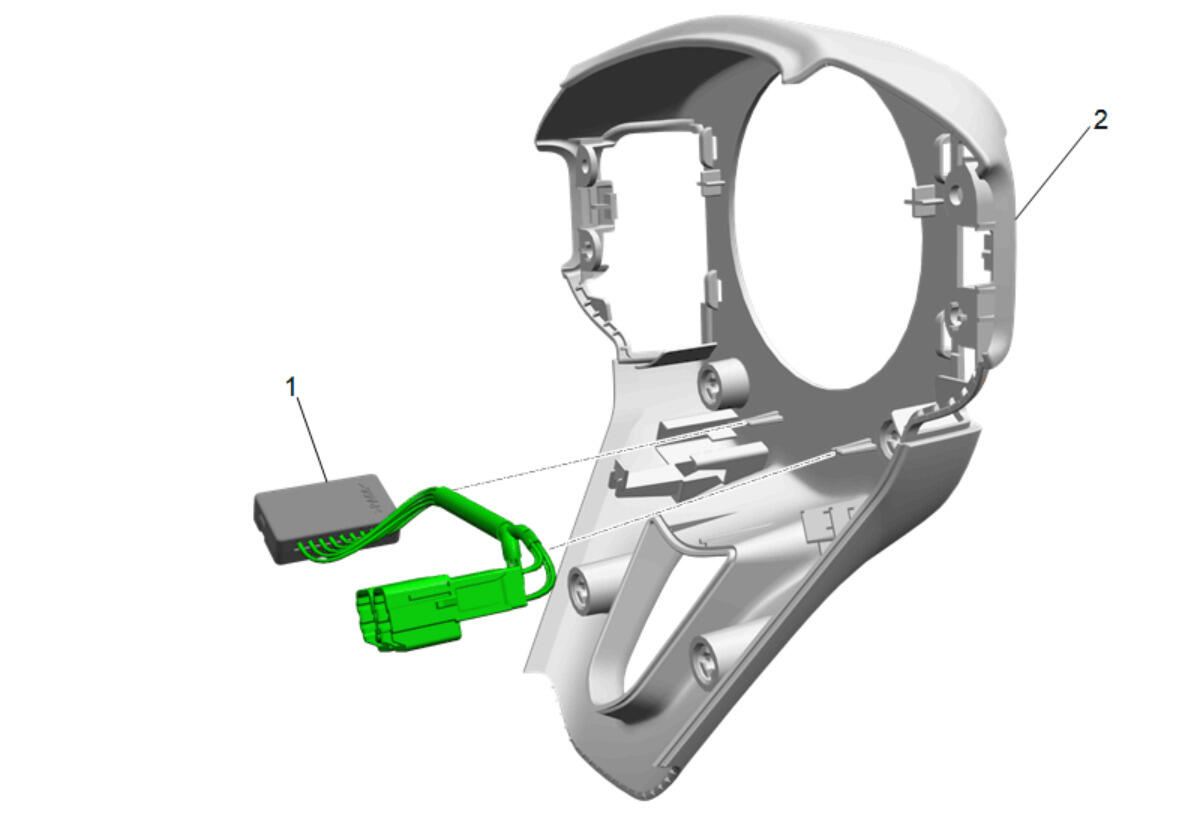

Install the heated steering wheel module (1) to the steering wheel shroud (2).
Courtesy of GENERAL MOTORS COMPANY

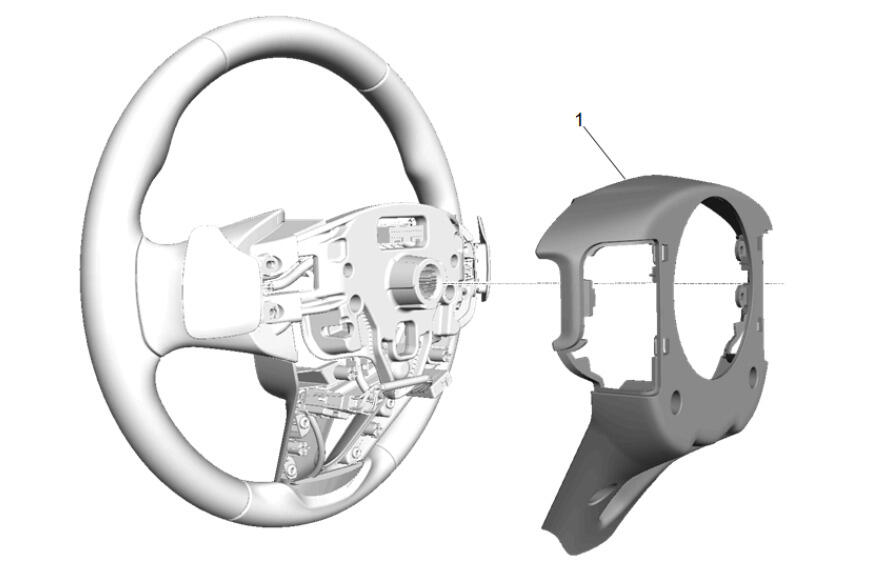

Steering Wheel Shroud (1) - Install

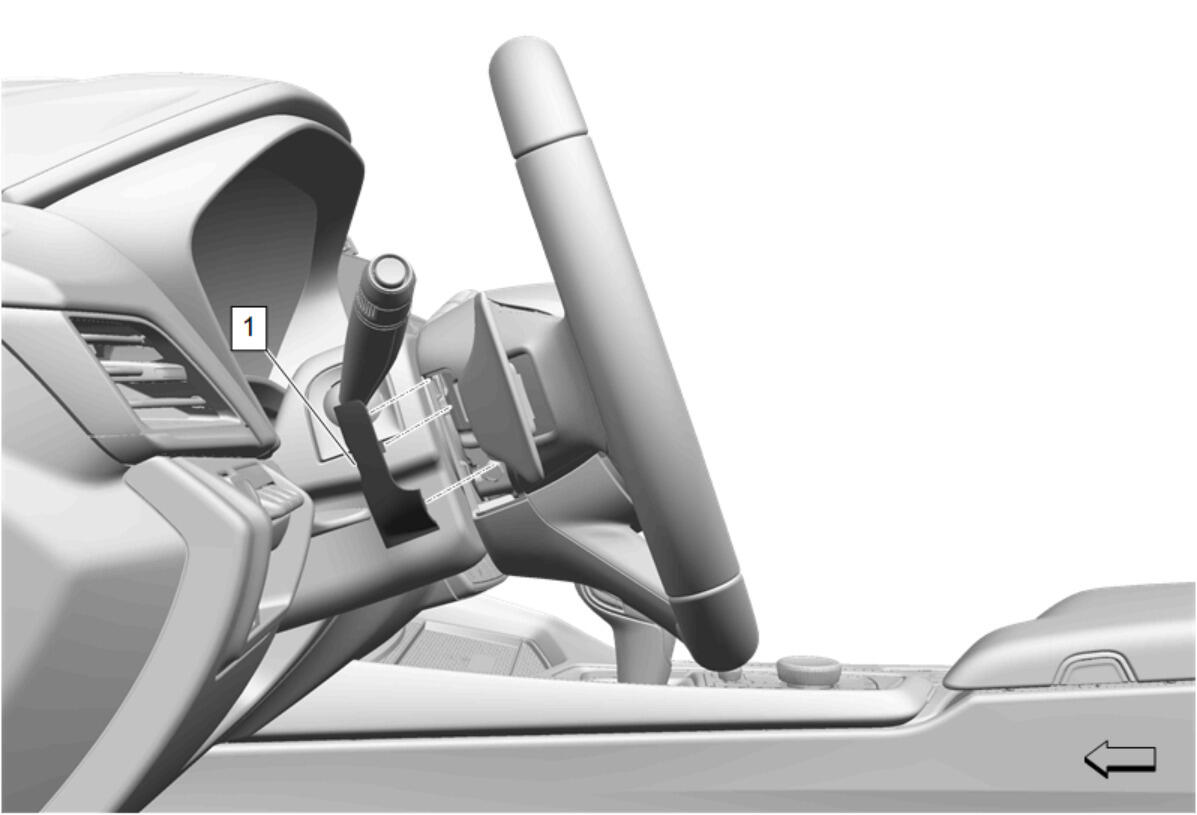

Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

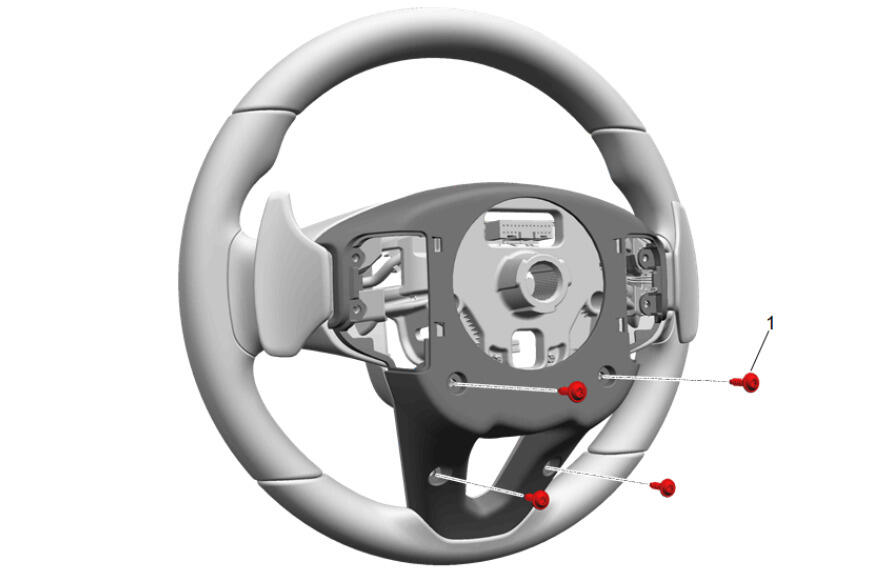

Steering Wheel Bolt (1) @ Steering Wheel Shroud - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

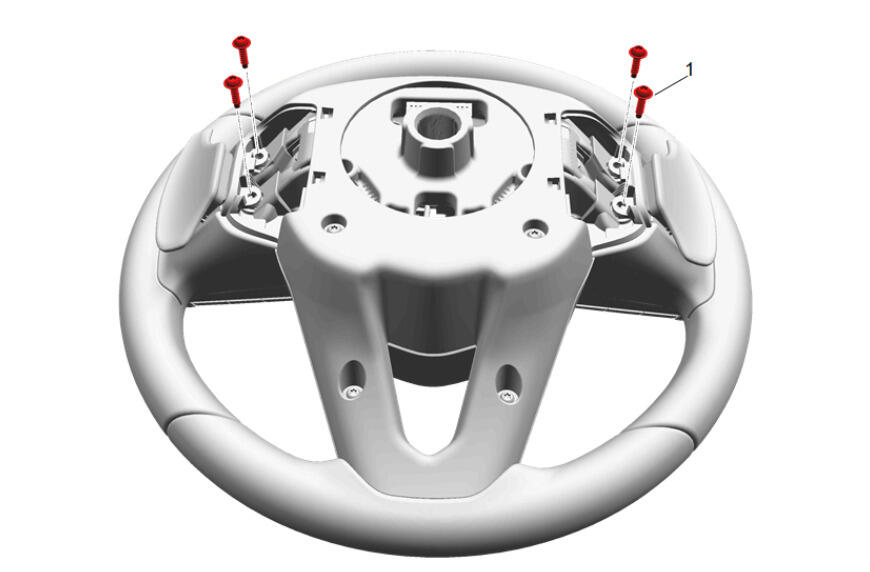

Steering Wheel Bolt (1) @ Automatic Transmission Manual Shift Auxiliary Position Switch - Install and tighten [4x]
- For vehicles equipped with MQA transmission, refer to Fastener Specifications .
- For vehicles equipped with M5N transmission, refer to Fastener Specifications .
Courtesy of GENERAL MOTORS COMPANY

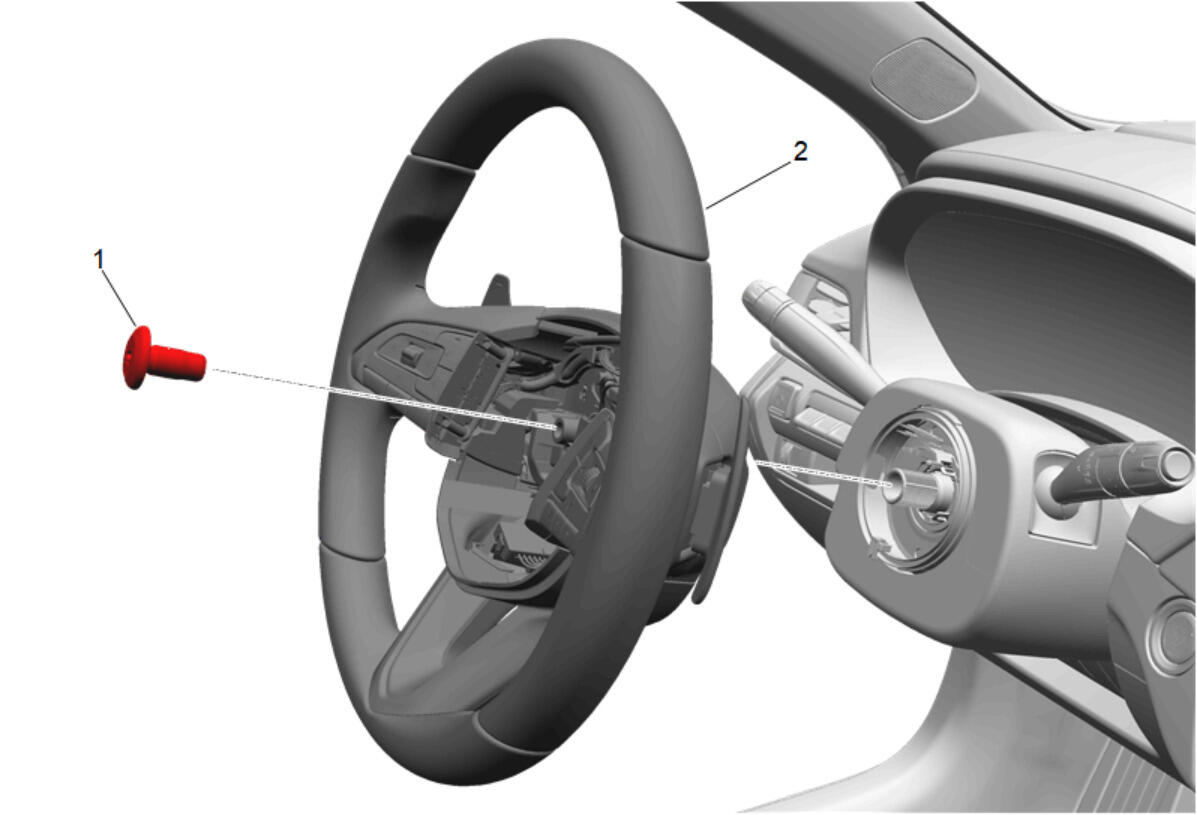

Steering Wheel (2) - Install
If a NEW threaded component is being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded component is reused, prepare the threaded component using the following steps:
1. Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
2. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
Steering Wheel Bolt (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.
Install any connector position assurance (CPA) devices or secondary locks.

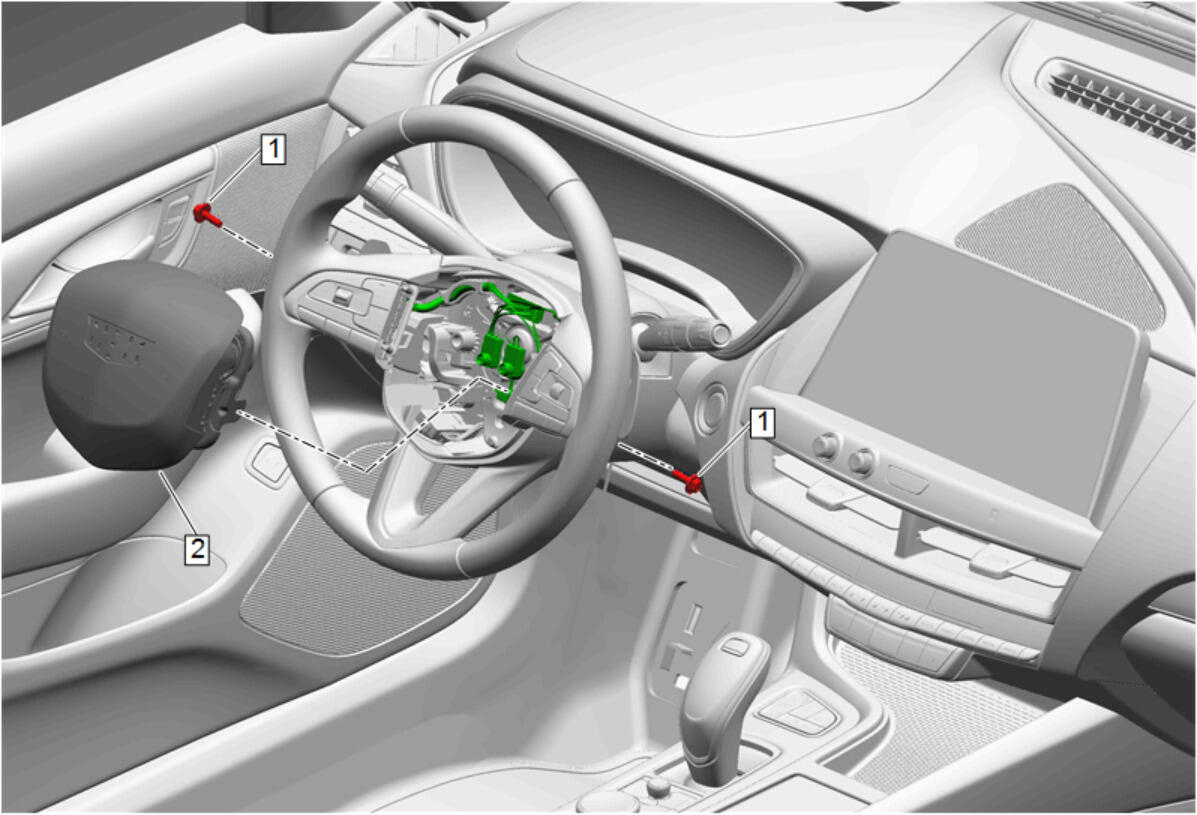

Steering Wheel Airbag (2) - Install
Steering Wheel Airbag Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the 2 steering wheel airbag access hole covers (1).
Enable the SIR System. SIR Disabling and Enabling
