Removal Procedure

Deactivate the steering column lock control module using the following procedure:
1. With foot OFF the brake pedal and the shift lever in the PARK position, press and release the ignition and start switch once. This will place the ignition system in the ACCESSORY mode and unlock the steering column for 5 minutes.
2. Turn the steering wheel to verify the steering column is NOT locked.
3. Remove the fuse for the steering column lock control module. The fuse is found in the instrument panel fuse block and is labeled ESCL. Electrical Center Identification Views
Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

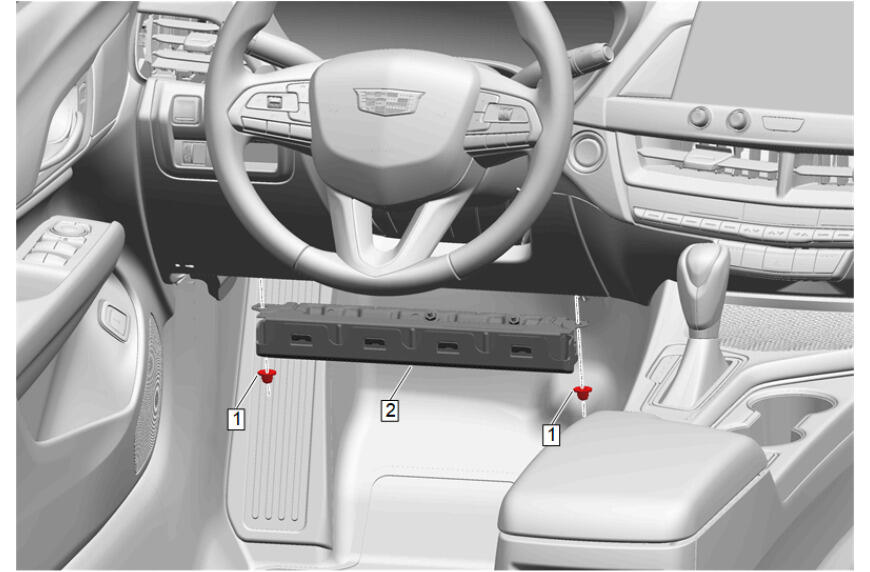

Instrument Panel Lower Airbag Nut (1) - Remove [2x]
Instrument Panel Lower Airbag - Driver Side (2) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

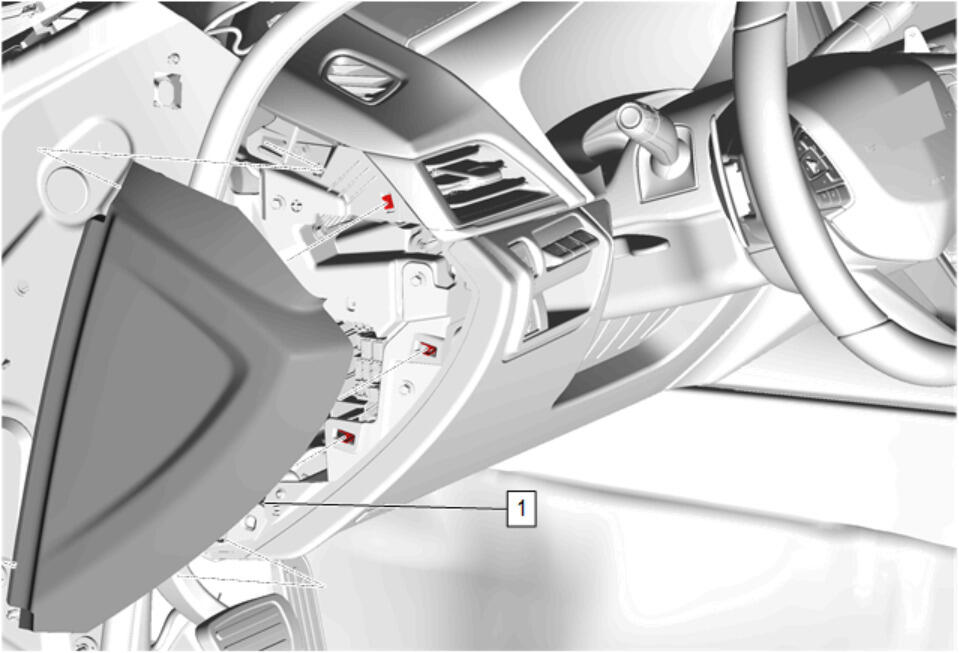

With a flat bladed plastic trim tool, start at the front and work your way back to release the clips holding the left side instrument panel outer trim cover (1).
Instrument Panel Outer Trim Cover - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

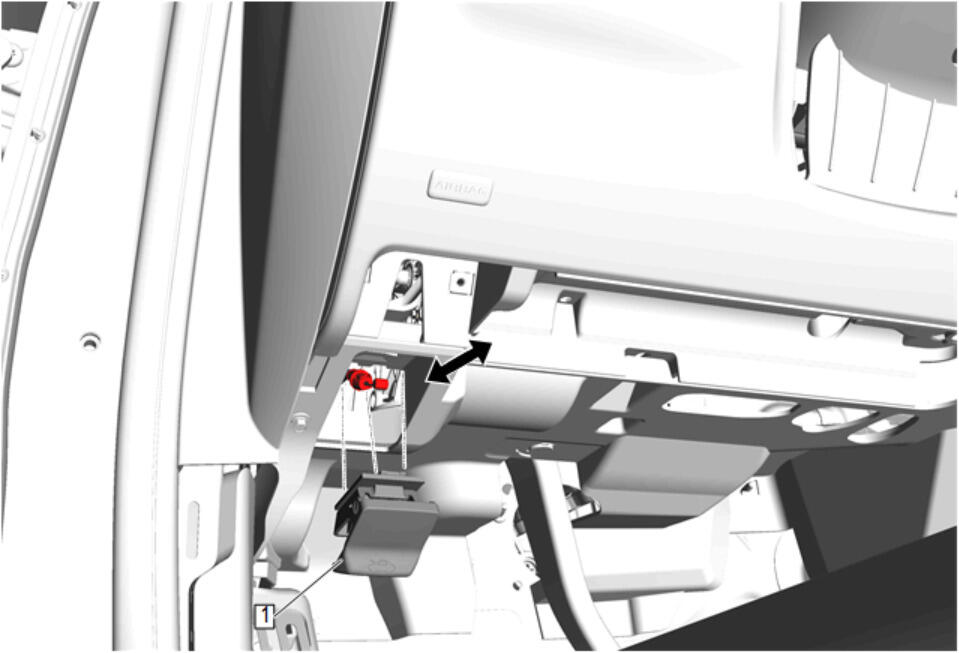

Disconnect the hood primary latch release cable end retainer from the hood primary latch release cable handle (1).
Courtesy of GENERAL MOTORS COMPANY

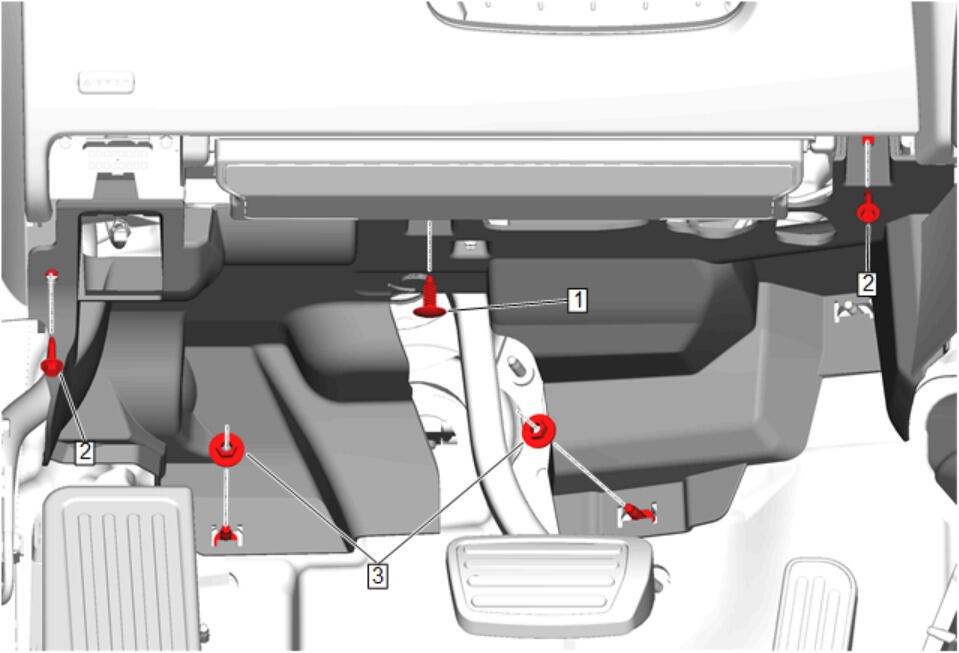

Instrument Panel Lower Trim Panel Insulator Retainer (1) - Remove
Instrument Panel Insulator Bolt (2) - Remove [2x]
Instrument Panel Insulator Nut (3) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Use a plastic trim tool if necessary.

Release the tabs from the instrument panel lower trim panel insulator (1).
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator (1) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

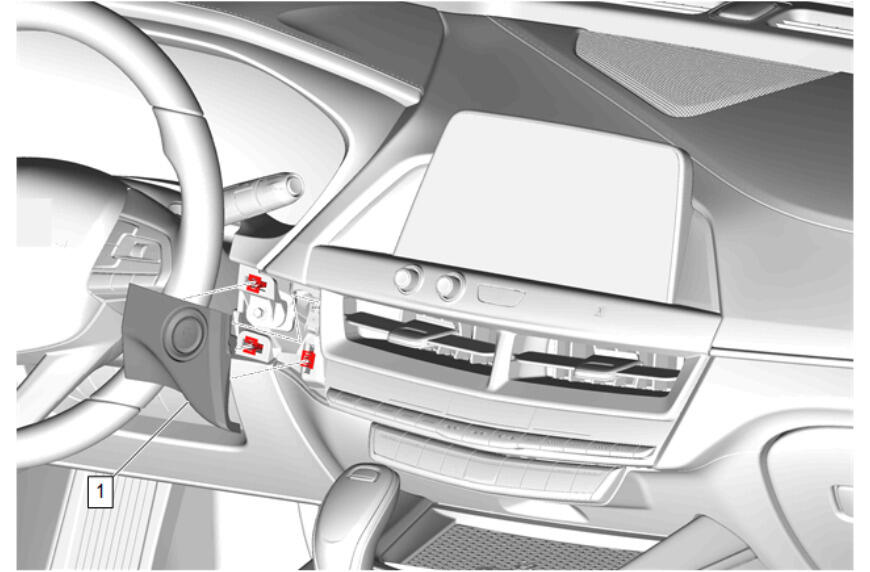

Move the steering column up so you can access the lower left corner of the instrument panel center trim pad (1).
Start with a flat-bladed plastic trim tool in the lower left corner of the instrument panel center trim pad (1) and work your way clockwise.
Instrument Panel Center Trim Pad (1) - Remove
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

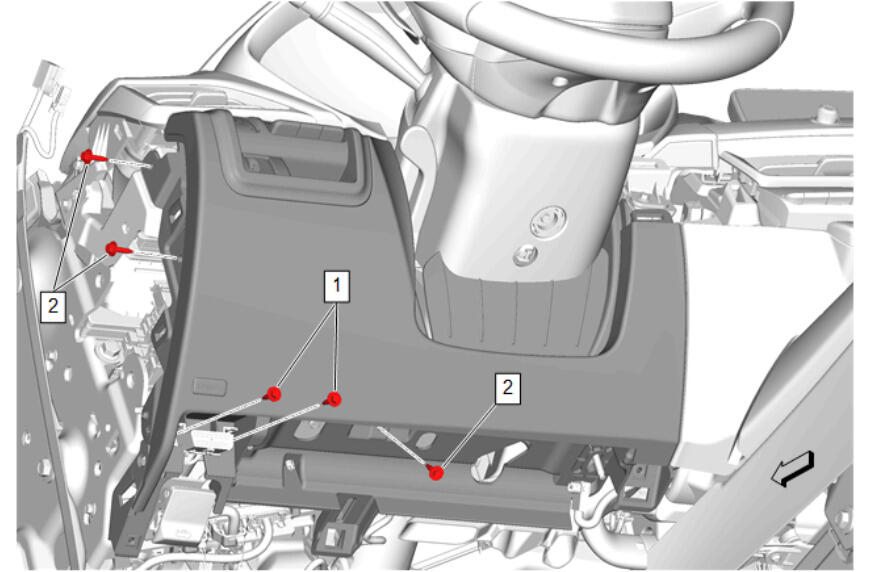

Data Link Connector Bolt (1) - Remove [2x]
Instrument Panel Knee Bolster Bolt (2) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Release the clips with a suitable tool.
Disconnect and reposition harness as necessary.

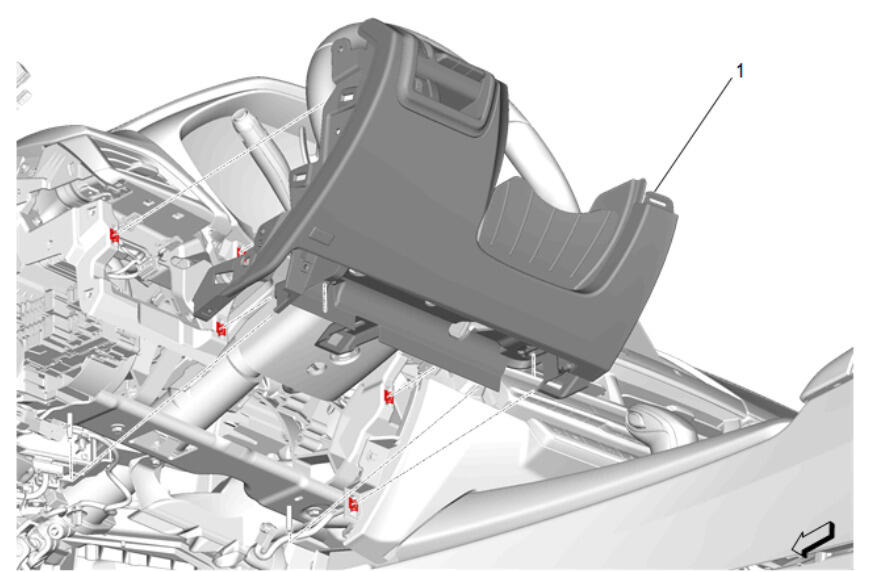

Clear the instrument panel knee bolster deflector studs when removing the instrument panel knee bolster (1).
Courtesy of GENERAL MOTORS COMPANY

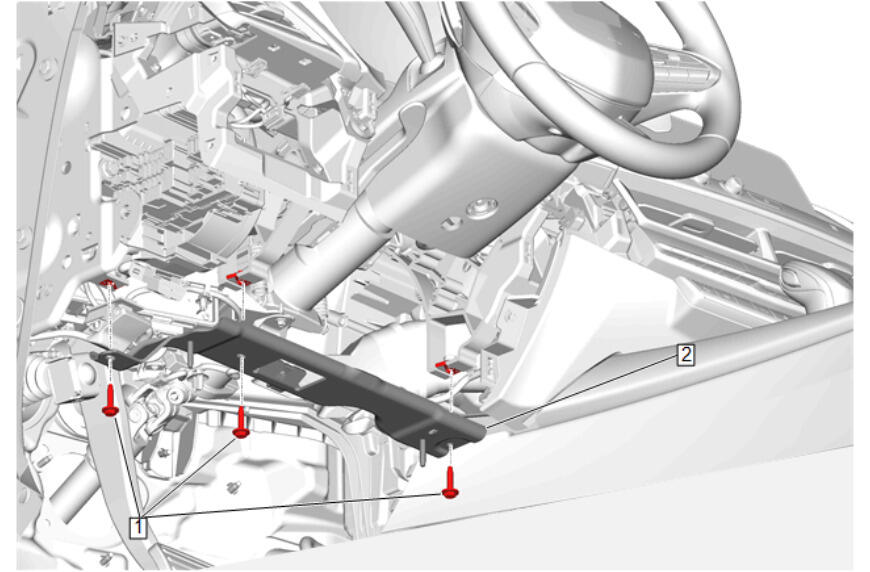

Instrument Panel Tie Bar Brace Bolt (1) - Remove [3x]
Instrument Panel Knee Bolster Deflector (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

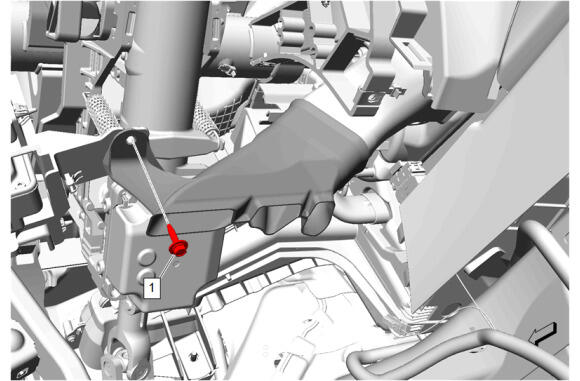

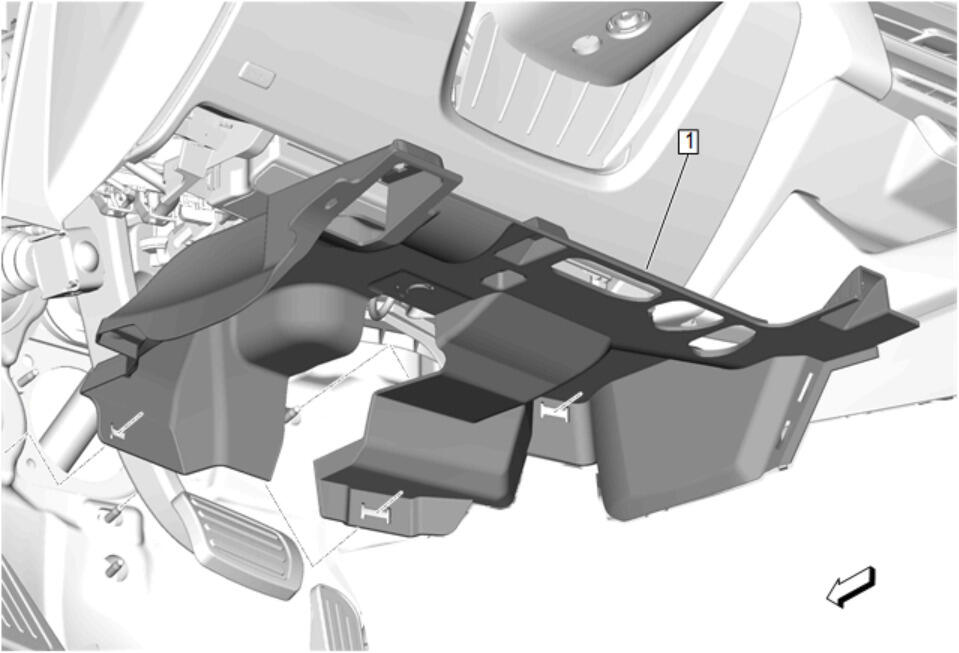

Floor Front Air Outlet Duct Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

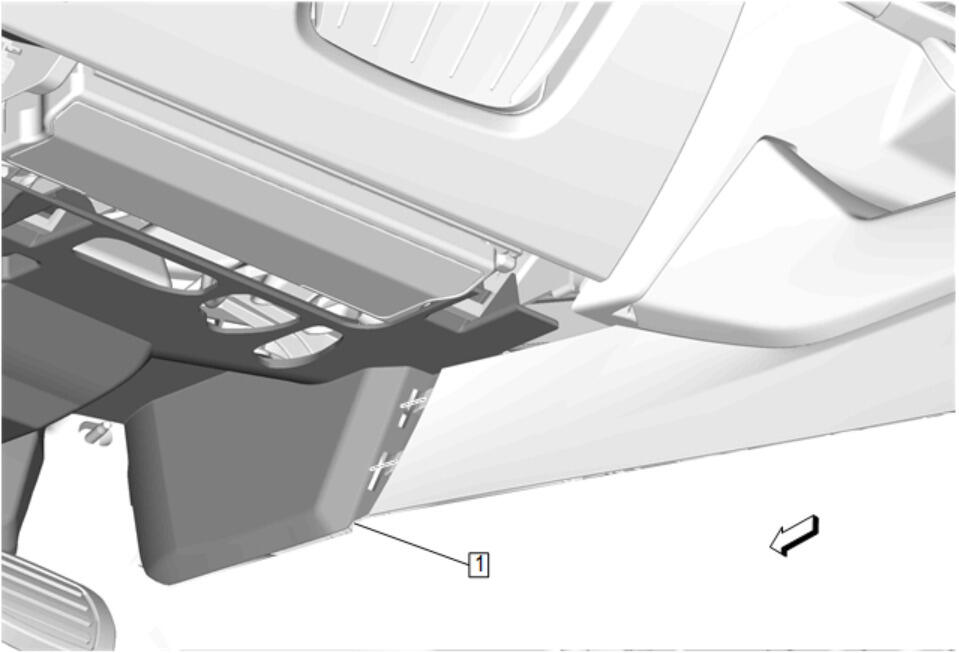

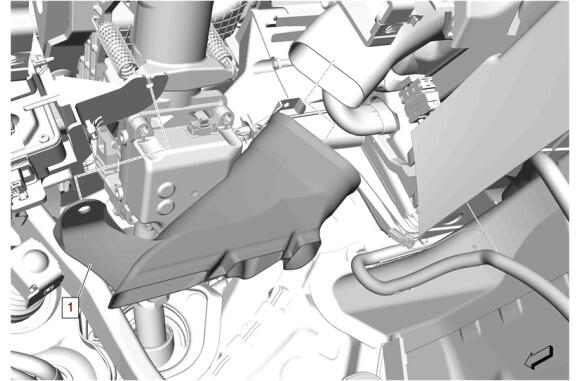

Floor Front Air Outlet Duct - Left Side (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

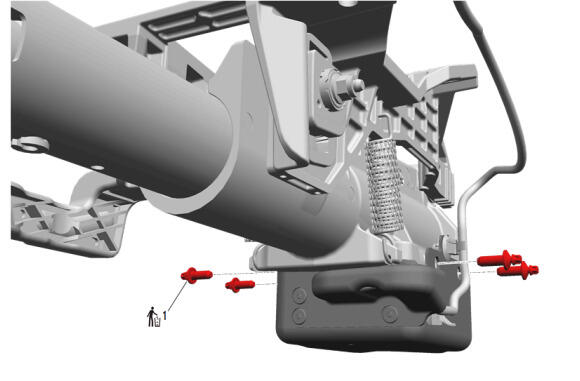

Using the appropriate tool, remove and DISCARD the 4 steering column lock control module protector bolts (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

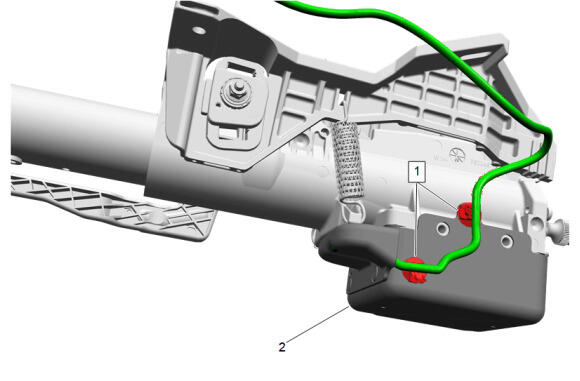

Disconnect the wiring harness retainers (1) and reposition the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

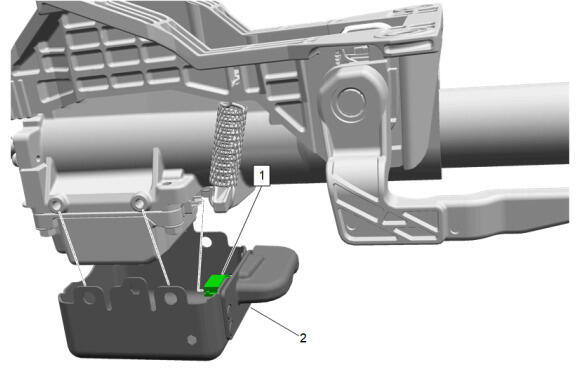

Remove the steering column lock control module protector (2).
Disconnect the electrical connector. (1)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

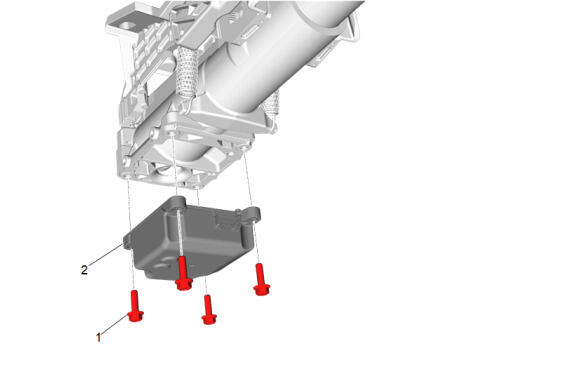

Steering Column Lock Control Module Bolt (1) - Remove [4x]
Column Lock Module (2) - Remove
