Fastener Specifications

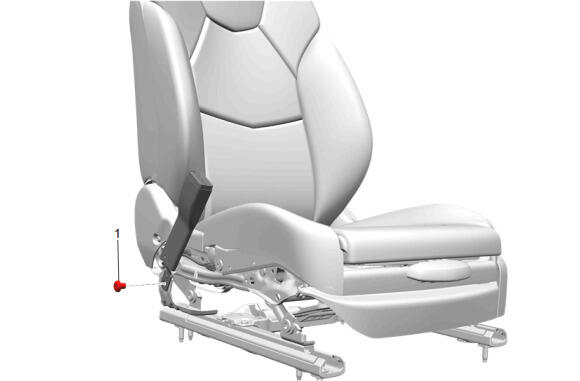

Front Seat Belt Buckle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Seat Belt Buckle Bolt | - | - | 45 (33 lb ft) | Front Seat Belt Buckle Replacement |

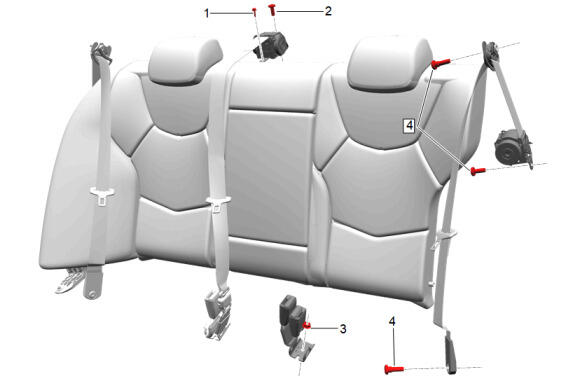

Rear Seat Belt
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Center Seat Belt Retractor Bolt -Front | - | - | 9 (80 lb in) | Rear Seat Center Belt Retractor Replacement |
| 2 | Rear Center Seat Belt Retractor Bolt -Rear | - | - | 45 (33 lb ft) | Rear Seat Center Belt Retractor Replacement |
| 3 | Rear Seat Belt Buckle Nut | - | - | 45 (33 lb ft) | Rear Seat Belt Buckle Replacement |
| 4 | Rear Seat Belt Retractor Bolt [3x] | - | - | 45 (33 lb ft) | Rear Seat Belt Retractor Replacement |
