Fastener Specifications

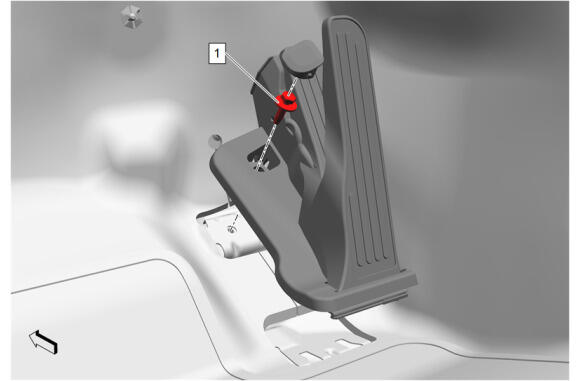

GM5484187Courtesy of GENERAL MOTORS COMPANY
Accelerator Pedal

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Accelerator Pedal Bracket Bolt - - 9 (80 lb in) Accelerator Pedal Replacement

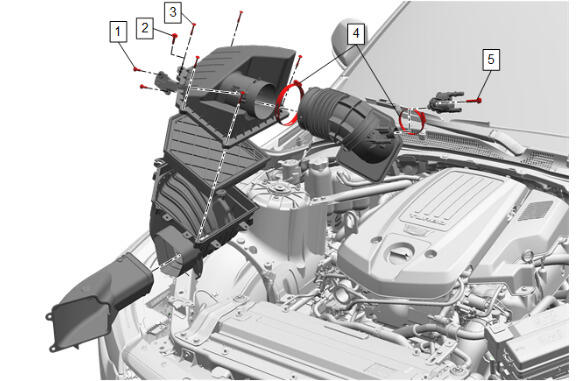

GM5507309Courtesy of GENERAL MOTORS COMPANY
Air Intake System with Mass Airflow Sensor and Purge Solenoid Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Mass Airflow Sensor Bolt [2x] - - 1.6 (14 lb in) Mass Airflow Sensor Replacement
2 Air Cleaner Bolt - - 9 (80 lb in) Air Cleaner Assembly Replacement
3 Air Cleaner Housing Cover Bolt [5x] - - 9 (80 lb in) Air Cleaner Assembly Replacement
4 Air Cleaner Outlet Duct Clamp [2x] - - 4 (35 lb in) Air Cleaner Outlet Duct Replacement
5 Evaporative Emission Canister Purge Solenoid Valve Bolt - - 9 (80 lb in) Evaporative Emission Canister Purge Pump Replacement

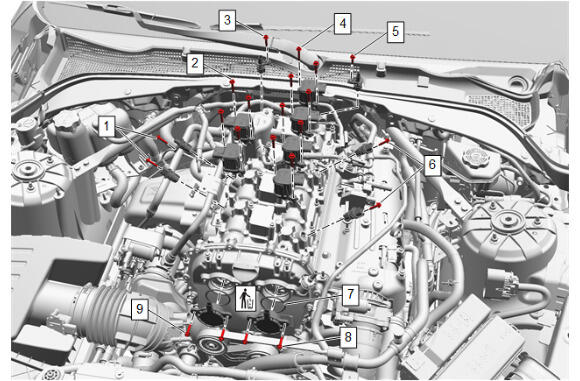

GM5507461Courtesy of GENERAL MOTORS COMPANY
Camshaft Sensors and Actuators

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Camshaft Exhaust Lobe Sensor Bolt [2x] - - 8.5 (75 lb in) Exhaust Camshaft Profile Sleeve Position Sensor Replacement
2 Camshaft Position Actuator Bolt [4x] - - 8.5 (75 lb in) Camshaft Lobe Position Actuator Replacement - Exhaust
3 Camshaft Position Sensor Bolt - - 8.5 (75 lb in) Camshaft Position Sensor Replacement - Exhaust
4 Camshaft Position Actuator Bolt [8x] - - 8.5 (75 lb in) Camshaft Lobe Position Actuator Replacement - Intake
5 Camshaft Position Sensor Bolt - - 8.5 (75 lb in) Camshaft Position Sensor Replacement - Intake
6 Camshaft Intake Lobe Sensor Bolt [2x] - - 8.5 (75 lb in) Camshaft Position Sensor Replacement - Intake
7 Camshaft Position Actuator Magnet Gasket [2x] Yes - - Camshaft Position Actuator Magnet Replacement - Intake
8 Camshaft Position Actuator Valve Solenoid Bolt [2x] - - 8.5 (75 lb in) Camshaft Position Actuator Magnet Replacement - Exhaust
9 Camshaft Position Actuator Valve Solenoid Bolt [2x] - - 8.5 (75 lb in) Camshaft Lobe Position Actuator Replacement - Exhaust

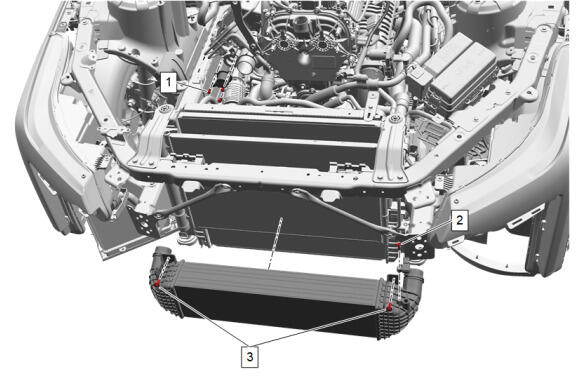

GM5484959Courtesy of GENERAL MOTORS COMPANY
Charge Air Bypass Valve and Charge Air Cooler with Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Charge Air Bypass Valve Bolt [3x] - - 7 (62 lb in) Turbocharger Bypass Valve Solenoid Replacement
2 Throttle Inlet Absolute Pressure Sensor Bolt - - 2.5 (22 lb in) Throttle Inlet Absolute Pressure Sensor Replacement
3 Charge Air Cooler Bolt [2x] - - 6 (53 lb in) Charge Air Cooler Replacement

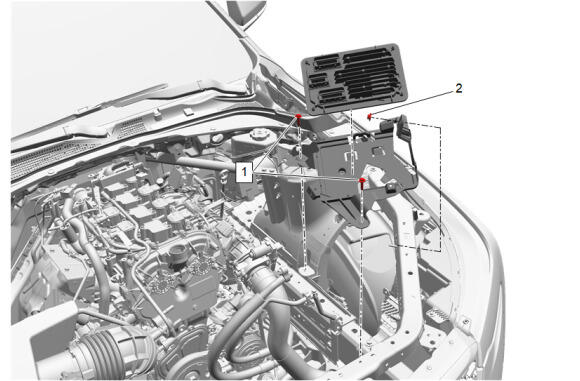

GM5484153Courtesy of GENERAL MOTORS COMPANY
Engine Control Module Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Control Module Bracket Bolt [2x] - - 9 (80 lb in) Engine Control Module Bracket Replacement
2 Engine Control Module Bracket Nut - - 9 (80 lb in) Engine Control Module Bracket Replacement

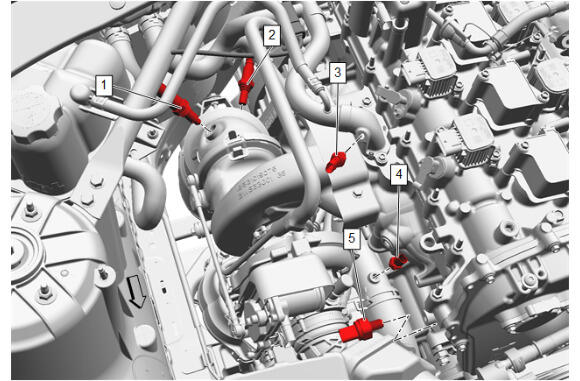

GM5507581Courtesy of GENERAL MOTORS COMPANY
Engine Sensors - Right Side of Engine

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heated Oxygen Sensor - - 42 (31 lb ft) Heated Oxygen Sensor Replacement - Sensor 1
2 Heated Oxygen Sensor - - 42 (31 lb ft) Heated Oxygen Sensor Replacement - Sensor 2
3 Engine Coolant Temperature Sensor - - 9 (80 lb in) Engine Coolant Temperature Sensor Replacement - Exhaust Manifold Outlet Pipe
4 Engine Coolant Temperature Sensor - - 9 (80 lb in) Engine Coolant Temperature Sensor Replacement - Water Inlet
5 Engine Oil Pressure Sensor - - 35 (26 lb ft) Engine Oil Pressure Sensor Replacement

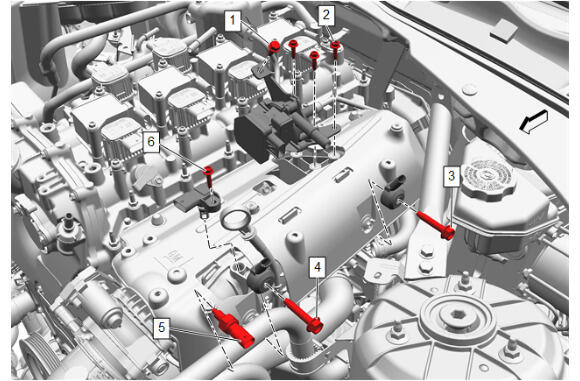

GM5507614Courtesy of GENERAL MOTORS COMPANY
Engine Sensors - Left Side of Engine

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Feed Pipe Bolt - - 9 (80 lb in) Evaporative Emission Canister Purge Pump Replacement
2 Evaporative Emission Canister Purge Pump Bolt - - 8.5 (75 lb in) Evaporative Emission Canister Purge Pump Replacement
3 Knock Sensor Bolt (Position 2) - - 15 (11 lb ft) Knock Sensor Replacement (Position 1)Knock Sensor Replacement (Position 2)
4 Knock Sensor Bolt (Position 1) - - 15 (11 lb ft) Knock Sensor Replacement (Position 1)Knock Sensor Replacement (Position 2)
5 Engine Coolant Temperature Sensor - - 9 (80 lb in) Engine Coolant Temperature Sensor Replacement - Engine Block
6 Intake Air Pressure and Temperature Sensor Bolt - - 8.5 (75 lb in) Intake Air Pressure and Temperature Sensor Replacement

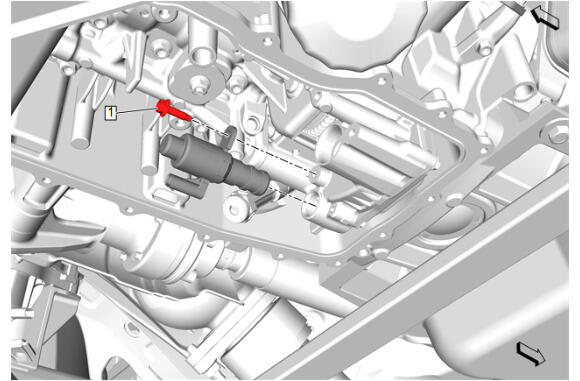

GM5509279Courtesy of GENERAL MOTORS COMPANY
Engine Oil Pressure Control Solenoid Valve

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Oil Pump Flow Control Solenoid Valve Bolt - - 8.5 (75 lb in) Engine Oil Pressure Sensor Replacement

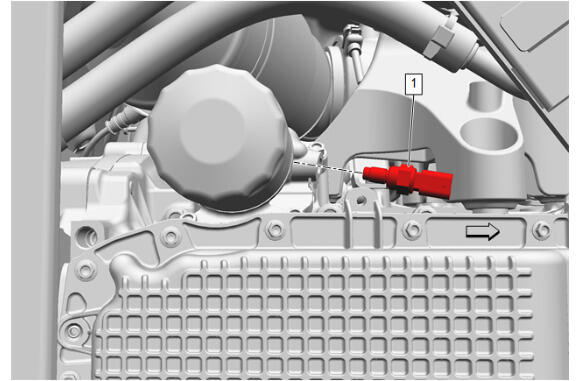

GM5513606Courtesy of GENERAL MOTORS COMPANY
Engine Oil Temperature Sensor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Engine Oil Temperature Sensor - - 20 (15 lb ft) Engine Oil Temperature Sensor Replacement

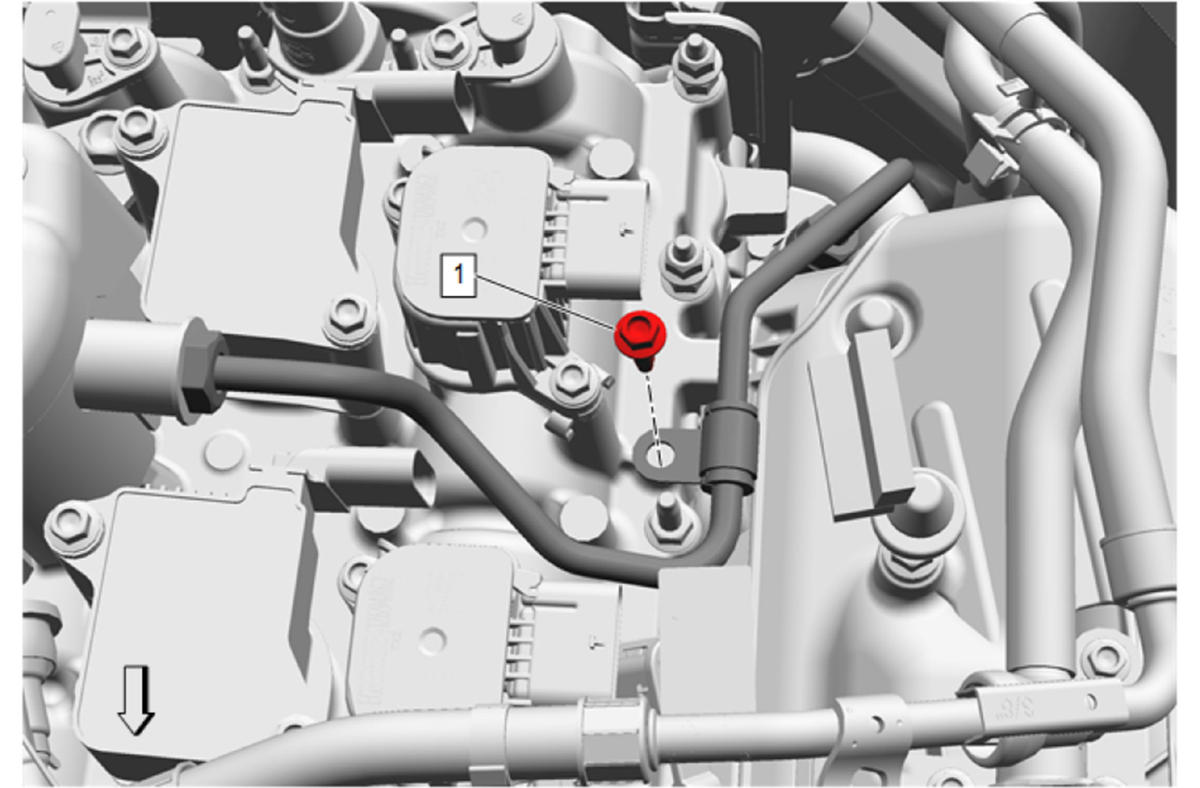

GM5512286Courtesy of GENERAL MOTORS COMPANY
Fuel Feed Intermediate Pipe

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injection Fuel Feed Pipe Bracket Bolt - - 8.5 (75 lb in) Fuel Feed Intermediate Pipe Replacement

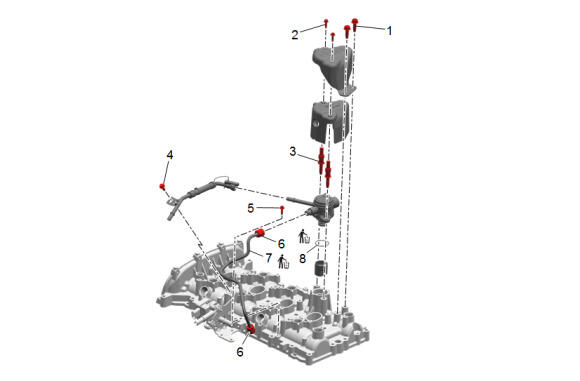

GM5511764Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Pump Shield Bolt [2x] - - 36 (27 lb ft) Fuel Pump Replacement
2 Fuel Pump Shield Bolt [2x] - - 36 (27 lb ft) Fuel Pump Replacement
3 Fuel Pump Stud [2x] - - 36 (27 lb ft) Fuel Pump Replacement
4 Fuel Feed Pipe Bolt - - 36 (27 lb ft) Fuel Feed Pipe Replacement
5 Fuel Injection Fuel Feed Pipe Bracket Bolt - - 30 (22 lb ft) Fuel Feed Pipe Replacement
6 Fuel Feed Intermediate Pipe Yes - - Fuel Feed Intermediate Pipe Replacement
7 Fuel Pump Seal Yes - - Fuel Pump Replacement

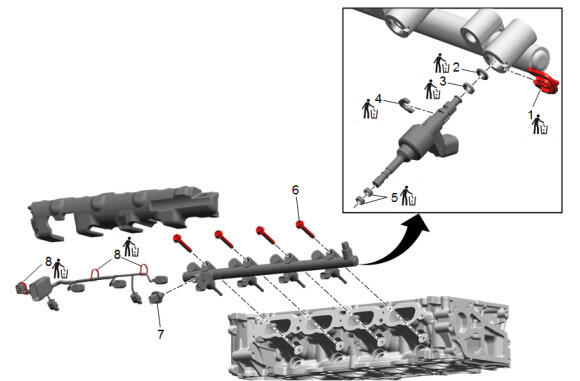

GM5511765Courtesy of GENERAL MOTORS COMPANY
Fuel Rail and Fuel Injector Components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Injector Retainer [4x] Yes - - Fuel Injector Replacement
2 Fuel Injector Seal [4x] Yes - - Fuel Injector Replacement
3 Fuel Injector Seal Spacer [4x] Yes - - Fuel Injector Replacement
4 Fuel Injector Bushing [4x] Yes - - Fuel Injector Replacement
5 Fuel Injector Nozzle Housing Seal [8x] Yes - - Fuel Injector Replacement
6 Fuel Injection Fuel Rail Bolt [4x] Yes - - Fuel Injector Replacement
7 Fuel Injection Fuel Rail Fuel Pressure Sensor - - 32.5 (24 lb ft) Fuel Injector Replacement
8 Fuel Injector Wiring Harness Strap [3x] Yes - - Fuel Injector Wiring Harness Replacement

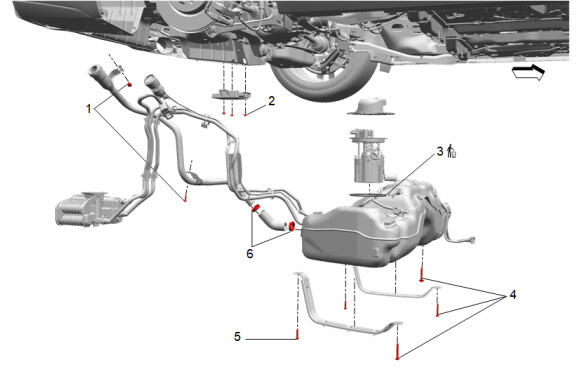

GM5492263Courtesy of GENERAL MOTORS COMPANY
Fuel Tank and components

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Fuel Tank Filler Pipe Ground Bolt [2x] - - 9 (80 lb in) Fuel Tank Replacement
2 Fuel Pump Power Control Module Nut [3x] - - 9 (80 lb in) Fuel Pump Power Control Module Replacement
3 Fuel Pump Seal Yes - - Fuel Tank Fuel Pump Module Replacement
4 Fuel Tank Strap Bolt (Front) [2x] - - 22 (16 lb ft) Fuel Tank Fuel Pump Module Replacement
5 Fuel Tank Strap Bolt (Rear) [2x] - - 27 (20 lb ft) Fuel Tank Fuel Pump Module Replacement
6 Fuel Tank Filler Hose Clamp [2x] - - 3.5 (31 lb in) Fuel Tank Filler Hose Replacement

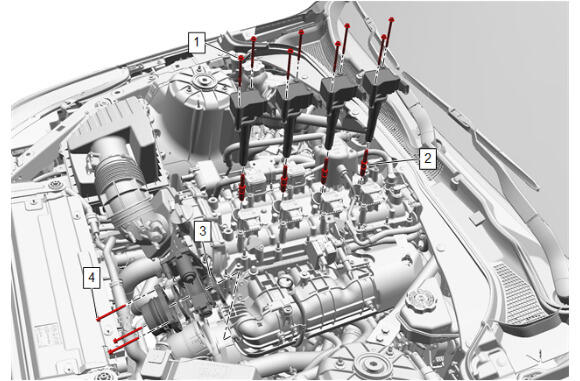

GM5507645Courtesy of GENERAL MOTORS COMPANY
Throttle Body and Ignition Coils

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Ignition Coil Bolt [8x] - - 8.5 (75 lb in) Ignition Coil Replacement
2 Gas Engine Ignition Spark Plug
[4x]		 - - 17 (13 lb ft) Gas Engine Ignition Spark Plug Replacement
3 Throttle Body Seal [2x] Yes - - Throttle Body Assembly Replacement
4 Throttle Body Bolt [3x] - - 8.5 (75 lb in) Throttle Body Assembly Replacement
