Installation Procedure

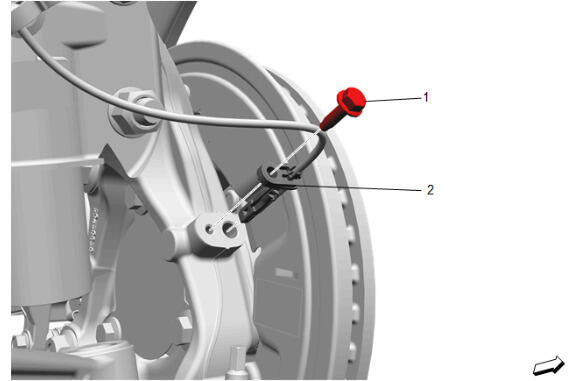

Front Wheel Speed Sensor(2) - Install
- Front Wheel Speed Sensor Bolt(1) - Install and tighten - Fastener Specifications

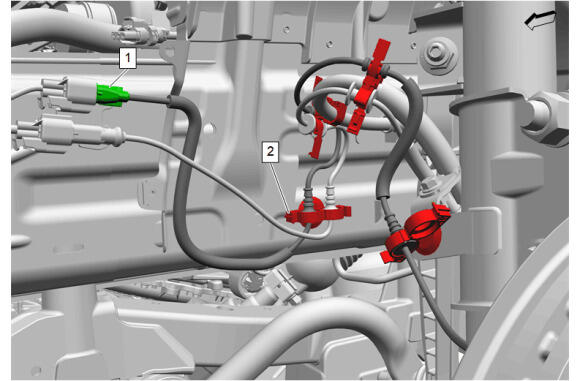

Install the front wheel speed sensor harness to the retainers (2) and secure the retainers (2).
- Pull the front wheelhouse liner outwards to gain clearance to connect the electrical connector (1).
- Electrical Connector(1) - Connect

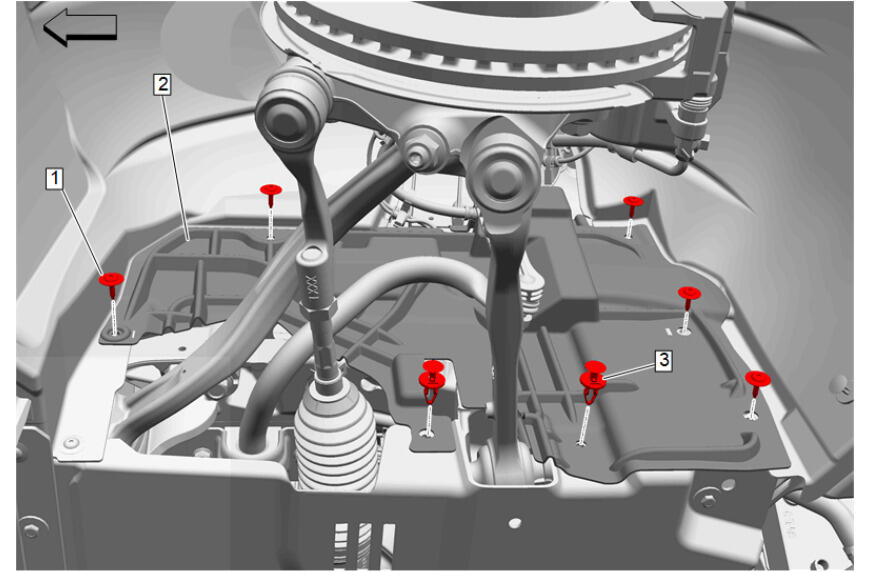

Engine Front Splash Shield(2) - Install
- Engine Front Splash Shield Bolt(1) - Install and tighten[5x] - Fastener Specifications
- Engine Front Splash Shield Retainer (3) - Install[2x]
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
CAUTION:
NOTE:
Quantity of fasteners may vary based on option content.
