Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

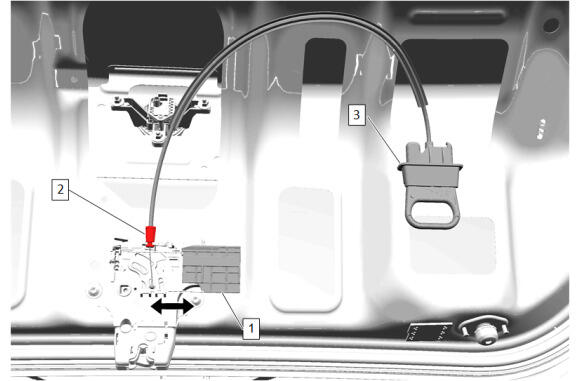

Auxiliary Rear Compartment Latch Release Handle (3) - Install
Auxiliary Rear Compartment Latch Release Handle Retainer (2) - Install
Rear Compartment Lid Latch Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the auxiliary rear compartment latch release handle is routed through the rear compartment lid inner panel trim.

Rear Compartment Lid Inner Panel Trim (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the rear compartment lid hinge cover (2).
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Lid Latch Cover (1) - Install
